Premium Quality Replacement Part

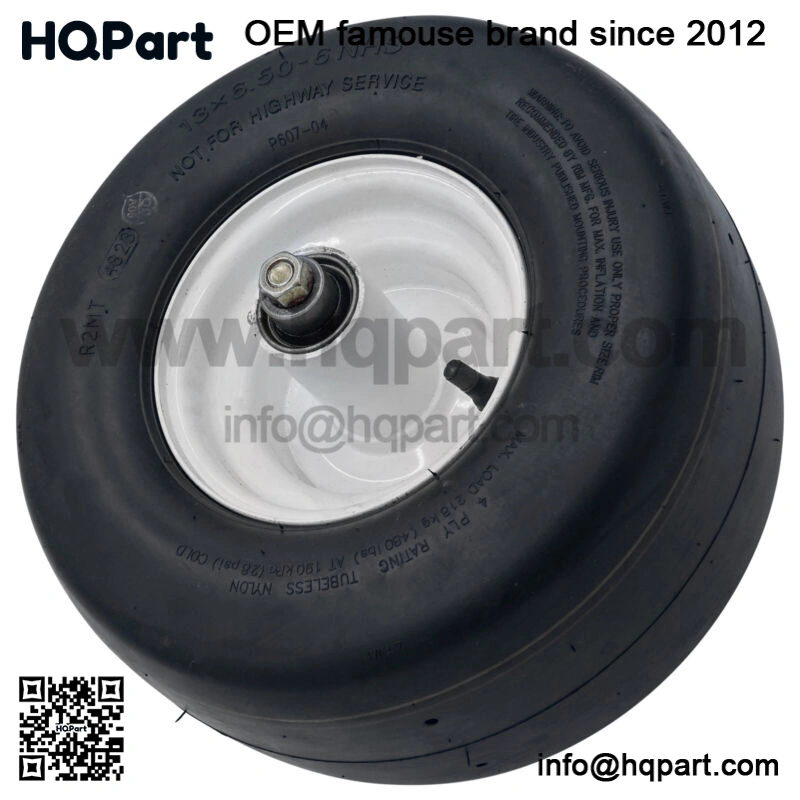

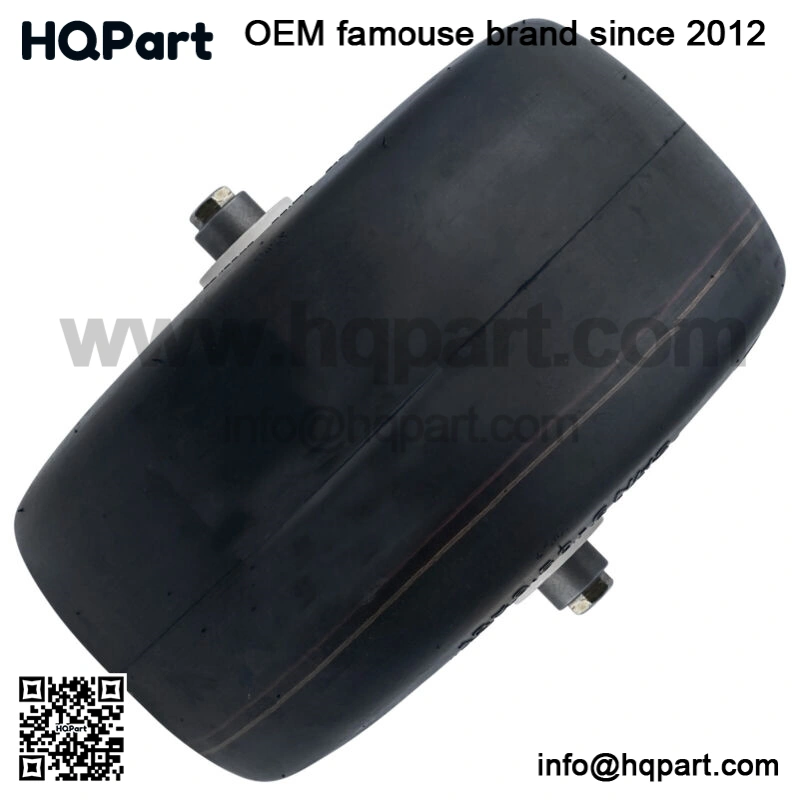

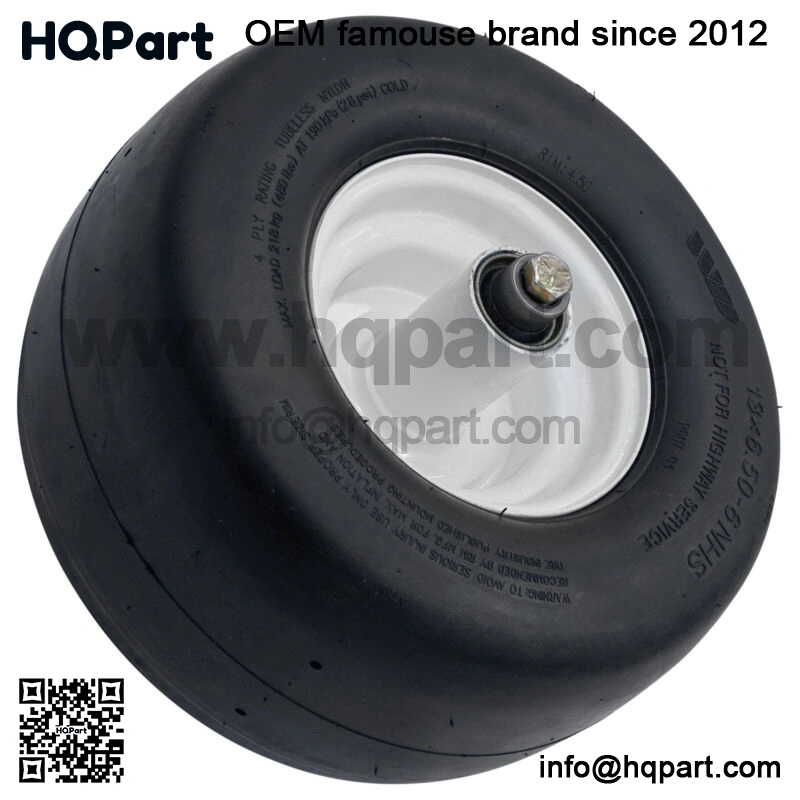

Front Frame Wheel Tire Caster Assembly 13×6.50-6
Compatible with Exmark Models:
Lazer Z Zero-Turn Mower
LZ18KC523 18hp Koh. (SN: 190000 – 219999) (1999)
LZ20KC524 20hp Koh. (SN: 320000 – 439999)(2002-2003)
LZ22KC523, LZ22KC604 22hp Koh. (SN: 190000 – 219999) (1999)
LZ22LKA523, LZ22LKA604 22hp Kw. (SN: 190000 – 259999) (1999-2000)
LZ23KA604 23hp Kw. (SN: 260000 – 319999) (2001)
LZ23KC523 23hp Koh. (SN: 220000 – 259999) (2000)
LZ23KC604 23hp Koh. (SN: 220000 – 259999)(2000)
(SN: 320000 – 439999)(2002-2003)
LZ23LKA604 23hp Kw. (SN: 260000 – 319999) (2001)
LZ25KA604 25hp Kw. (SN: 320000 – 369999) (2002)
LZ25KC523 25hp Koh. (SN: 190000 – 259999) (1999-2000)
LZ25KC524 25hp Koh. (SN: 260000 – 369999) (2001-2002)
LZ25KC604 25hp Koh. (SN: 190000 – 369999) (1999-2002)
LZ25KC724 25hp Koh. (SN: 190000 – 259999) (1999-2000)
LZ26KC604 26hp Koh. (SN: 220000 – 439999) (2000-2003)
LZ26KC724 26hp Koh. (SN: 220000 – 369999) (2000-2002)
LZ27DD604 (370000-509999) (2003-2004)
LZ27DD724 (370000-509999) (2003-2004)
LZ27KC524 (370000-509999) (2003-2004)
LZ27KC604 (370000-509999) (2003-2004)
LZ27KC724 (370000-509999) (2003-2004)
LZ27LKA604 (370000-509999) (2003-2004)
LZ27LKA724 (370000-509999) (2003-2004)
LZ28KC604 (370000-509999) (2003-2004)
LZ28KC724 (370000-509999) (2003-2004)
LZ31DG604 (370000-439999)(2003)
LZ31DG724 (370000-439999)(2003)
Lazer Z E-Series Zero-Turn Mower
LZE730GKA604A3 Kw. (SN: 315000000 – 399999999)(2015-2016)
LZE730GKA604B3 Kw. (SN: 315000000 – 315999999) (2015)
LZE730KA604 Kw. (SN: 313000000 – 314999999) (2013-2014)
LZE730KA604SS Kw. (SN: 314000000 – 314999999) (2014)
LZE740EKC604A3 Koh. (SN: 315000000 – 315999999) (2015)
LZE742GKC60403 Koh. (SN: 315000000 – 315999999) (2015)
LZE742GKC604A3 Koh. (SN: 315000000 – 999999999) (2015-2023)
LZE742GKC604B1 Koh. CV742 (SN: 316000000 – 399999999) (2016)
LZE751GKA604A1 Kw. (SN: 400000000 – 402082299) (2017)
LZE751GKA724A3 Kw. (SN: 400000000 – 402082299) (2017)
LZE801GKA604A3 Kw. (SN: 316000000 – 399999999) (2016)
LZE801GKA724A3 Kw. (SN: 316000000 – 399999999) (2016)
LZE810GBV604A3 B&S (SN: 411294212 & Above) (2022-2023)
Lazer Z As Zero-Turn Mower
LAS25KC604 (670000-789999)(2007-2008)
LAS25KC604B (670000-719999)(2007)
LAS25KC604N (720000-789999)(2008)
LAS28KA524 (670000-789999) (2007-2008)
LAS28KA524R (720000-789999)(2008)
LAS28KA604 (670000-789999) (2007-2008)
LAS28KA724 (670000-789999) (720000-789999) (2007-2008)
LAS28KA724B (670000-719999)(2007)
LAS28KA724N (720000-789999)(2008)
Pioneer S-Series
PNS730GKA604A3, PNS740GKC60RA3
(315000000-399999999) (2015-2016)
Compatible with Toro Z Master Zero-Turn Mower
127-0301 74143/74145/74953 Z Master Mower
74143, 74145 (2000) (SN: 313000001 – 313999999) (2013)
74953, 74954, 74956
(3000) (SN: 313000001 – 313999999) (2013)
74213 74214 (Z 287 L) – (SN: 210000001-210999999)
(SN: 220000001-220999999) (SN: 230000001-230999999) (2001-2003)
74216 (Z 283 L) (SN: 210000001 – 210999999) (2001)
74225 (Z 253) – (SN: 210000001 – 210999999)(SN: 220000001 – 220999999)
(SN: 230000001 – 230999999) (2001-2003)
74226, 74227, 74228 (Z 255) – (SN: 210000001-210999999)
(SN: 220000001 – 220999999) (2001-2002)
74230, 74231 (Z 257) (SN: 230000001-230999999) (2003)
Compatible with Scag Models:
Sabre Tooth Tiger
SMST-61A (SN: 7810001 – 8609999) (SN: A7500001 – A7599999)
SMST-72A (SN: A7600001 – A7699999) (SN: 7820001 – 8610000)
Turf Tiger
SMST-72A (SN: A7600001 – A7699999) (SN: 8610001 – 8619999)
SMT-52A (SN: A7100001 – A7199999) (SN: 8560001 – 8569999)
SMT-61A (SN: A7200001 – A7299999) (SN: A7300001 – A7399999)(SN: 8570001 – 8579999)
Wildcat
SMWC-52A (SN: A5500001 – A5599999)
SMWC-61A (SN: 9340001 – 9349999) (SN: A5700001 – A5799999)
Tiger Cat
SMTC-48V (SN: D9100001 – D9199999)
SMWC-52V (SN: D9200001 – D9299999)
SMWC-61V (SN: D9300001 – D9399999)
Patriot Zero-Turn Mower
SPZ52-22FX 22hp Kw. (SN: N2200000 – N2299999)
(SN: M2400000 – M2499999) (SN: N8000000 – N8099999)
SPZ52-23CV 23hp Koh. (SN: N8100000 – N8199999)
SPZ61-23FX 23hp Kw. (SN: M2500000 – M2599999)
Cheetah Zero-Turn Mower
SCZ48V-22FX 22hp Kw. (SN: J9600001 – J9699999)
(SN: L6100001 – L6199999)
SCZ48V-23CV 23hp Koh. (SN: L6200001 – L6299999)
(SN: J9700001 – J9799999)
SCZ48V-25CV 25hp Koh. (SN: H6800001 – H6899999)
SCZ48V-26BS 26hp B&S (SN: K4400001 – K4499999)
SCZ48V-28BS 28hp B&S (SN: H6900001 – H6999999)
SCZ48V-691FX Kw. 691FX (SN: H6700001 – H6799999)
SCZ52V-23FX 23hp Kw. (SN: J9900001 – J9999999)
(SN: L6300001 – L6399999)
SCZ52V-25CV-EFI 25hp Koh. (SN: K0100001 – K0199999)
(SN: L6400001 – L6499999)
SCZ52V-25CV 25hp Koh. (SN: K0000001 – K0099999)
SCZ52V-26BS 26hp B&S (SN: K0200001 – K0299999)
SCZ52V-27CV 27hp Koh. (SN: H7100001 – H7199999)
SCZ52V-28BS 28hp B&S (SN: H7200001 – H7299999)
SCZ52V-730FX Kw. 730FX (SN: H7000001 – H7099999)
SCZ61RD-31FX 31hp Kw. (SN: K0800001 – K0899999)
(SN: L7000001 – L7099999)(SN: P0400001 – P0499999)
SCZ61RD-921FX Kw. 921FX (SN: H7900001 – H7999999)
SCZ61V-27FX 27hp Kw. (SN: K0300001 – K0399999)
(SN: L6500001 – L6599999) (SN: P0000001 – P0099999)
SCZ61V-29CV-EFI 29hp Koh. (SN: M2300001 – M2399999)
Compatible with Hustler Models :
54″ Fastrak Kawasaki FT691 ( 22HP )
60″ Fastrak Kawasaki FT730 (24HP)
Order Includes:
1 x Wheel Tire: 457291, 103-0065, 103-0069, 103-0071, 117-036, 1103-5179, 103-5188, 482504, 483050, 9278, 1-644251, 633971, 644251, E644251, E633971, E644251, 72460028, 95460014, 175-633, 1030065, 1030069, 1030071, 1170361, 1035179, 1035188, 1644251, 175633, 605199

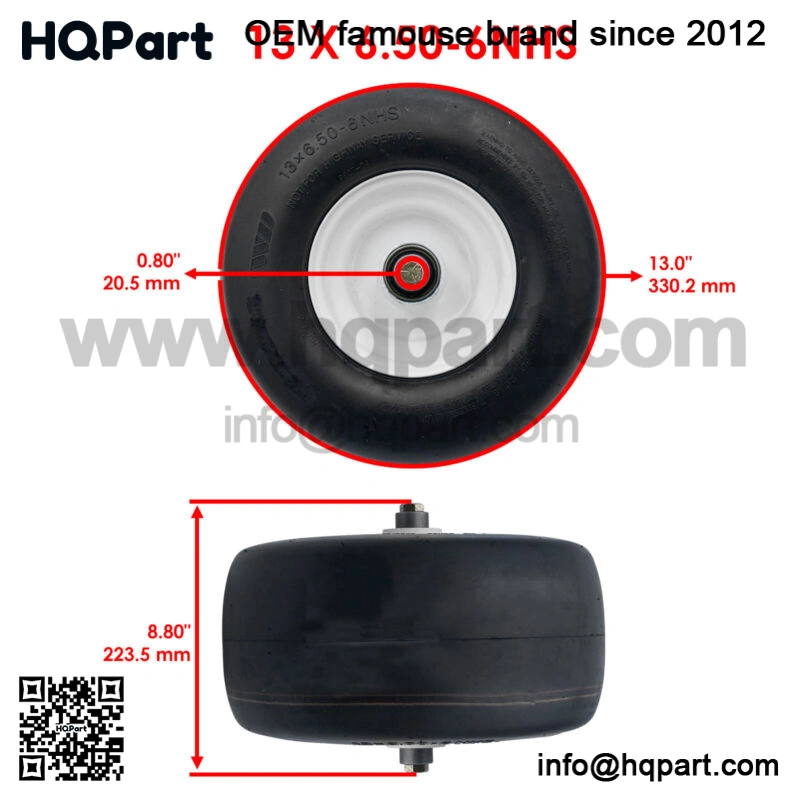

Width: 223.5mm
Inner Diameter: 20.5mm
Outer Diameter: 330.2
Weight: 10lb 10oz
