Product Specifications:
The X35 features a tested loading capacity of 800 lbs.
Our design of the extendable top bars allows the X35 to fit in different sizes truck beds
The rope hook on the side of all four uprights provides the security for tying the tools or loads
There are FIVE drilling holes on the upright plate, which make X35 more compatible bolting on different sizes of bed margins.You could choose our C-Clamp for which No Drilling Required.
Product Description:
Installation of model X35 truck rack requires drilling on the bed rail.

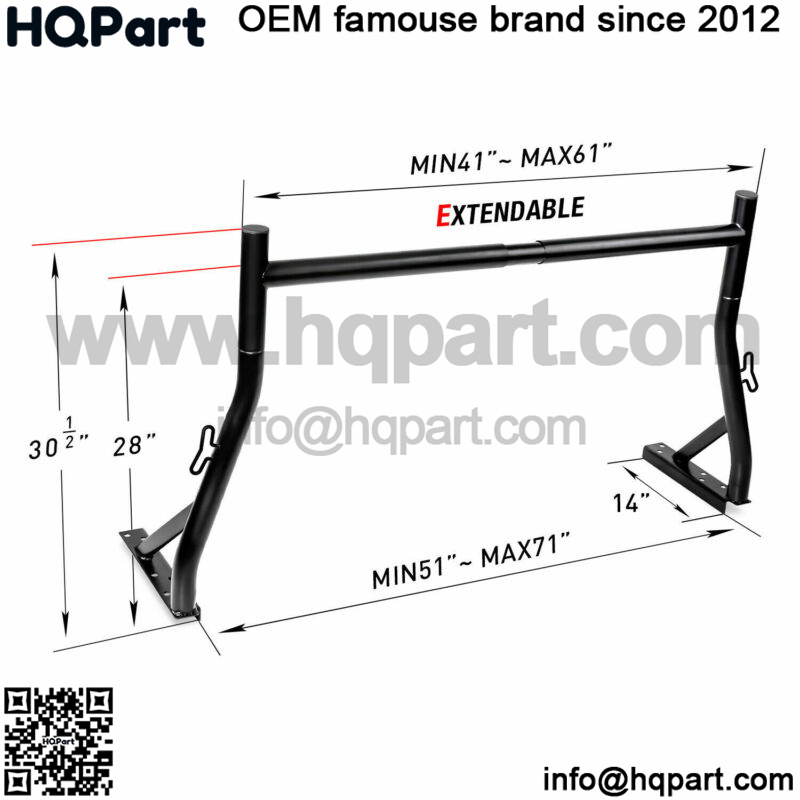

It features the extendable top cross-bar which can be adjusted for different sizes bed width. The adjustable range covers inner bed width from min. 51″ ~ max. 71″. The height is 30.5″ to the clearance and 28″ to the cross bar. The upright mounting plate is a flat “L” shaped plate with three drilling holes. Please pick two that fits your bed rail.
A total of 8 bolts, nuts and washers will be included with the hardware package.
lease stop proceeding if you have the followings with your vehicle:
tool boxes, bed covers & camper shells;
inner track systems pre-installed on the inner bed-wall (i.e.: New Toyota models);
inner bed width smaller than 51″.

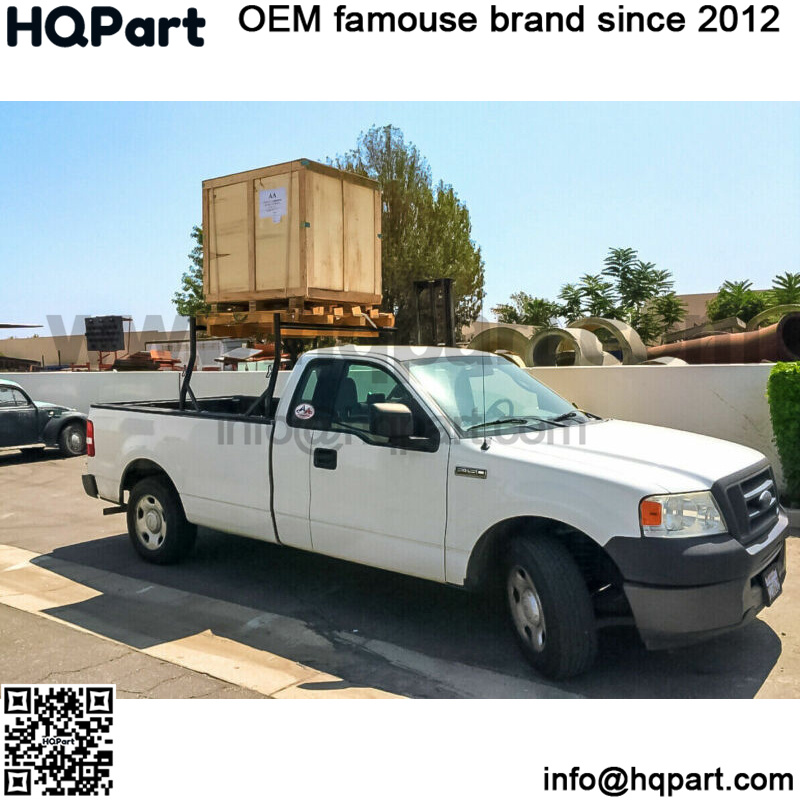

Always consult us for non-drilling options & compatibility issues. This products is weight-tested as shown in the listing pictures, and from feedback you should know the quality we provide.
More Option:
It also has X34[Click to view] to choose which compatible with small pick-up Truck-bed Width ranged from Min. 38 Inch – Max.51 Inch
X35-WHT is the Pickup Truck rack of White.
X35-8Clamp-BLK Is X35 truck rack with (8) Non-Drilling C-Clamps.
Package includes:
A complete set of Front Bars & Rear Bars
A complete set of hardware ( Bolts and Washers )
Placement on vehicle: Truck Bed
