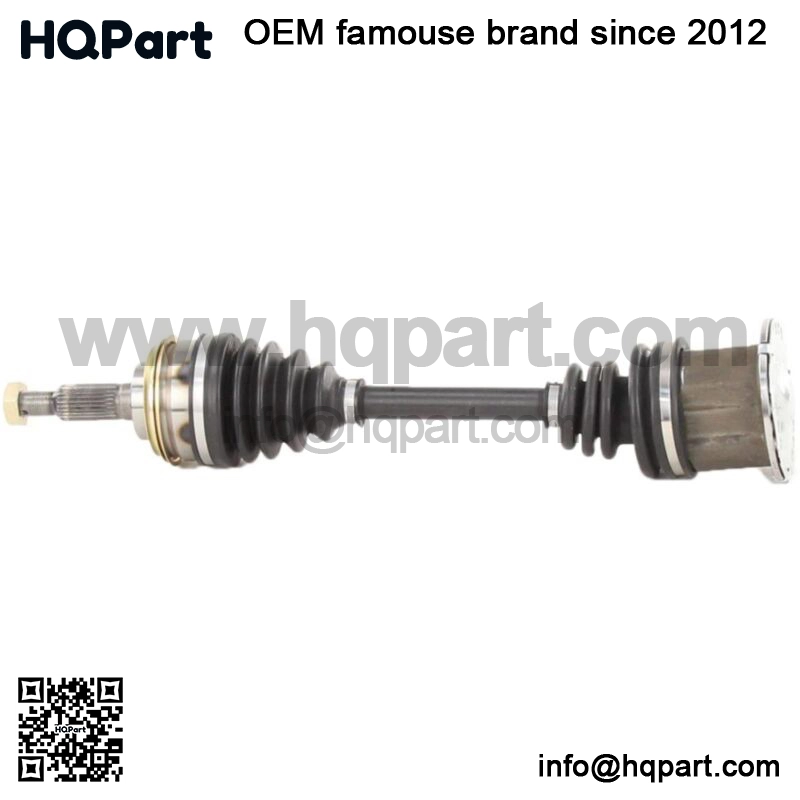

TrakMotive TO-8357 CV Axle Shaft For 85-89 Toyota MR2
TrakMotive TO-8357 CV Axle Shaft
CV Axle Shaft
SPECIFICATIONS:
Abs Ring Tooth Count: N/A
Abs Ring Type: N/A
ABS Tone Ring Included: No
Axle Bolt Hex Size (mm): N/A
Axle Bolt Length (mm): N/A
Axle Bolt Thread Size: N/A
Axle Nut Head Type: Hex
Axle Nut Height (in): 3/7
Axle Nut Height (mm): 11
Axle Nut Hex Size (in): 1 1/6
Axle Nut Hex Size (mm): 29.8
Axle Nut Included: Yes
Axle Nut Length (in): 1 1/3
Axle Nut Length (mm): 34.4
Axle Nut Locking Type: Standard
Axle Nut Thread Size: M19*1.5
Boot Material: Neoprene
Inboard Bolt Head Size (in): N/A
Inboard Bolt Head Size (mm): N/A
Inboard Bolt Head Type: N/A
Inboard Bolt Length (in): N/A
Inboard Bolt Length (mm): N/A
Inboard Bolt Thread Size: N/A
Inboard Joint Type: Flange
Inboard Shaft Connection Style: Flange
New Or Remanufactured: New
Number of Bolt Holes: N/A
Number Of Inboard Joint Bolt Holes: N/A
Number Of Inboard Shaft Bolts: N/A
Number Of Inboard Splines: N/A
Number Of Outboard Joint Bolt Holes: N/A
Number Of Outboard Shaft Bolts: N/A
Number Of Outboard Splines: 26
Outboard Bolt Head Size (in): N/A
Outboard Bolt Head Size (mm): N/A
Outboard Bolt Head Type: N/A
Outboard Bolt Length (in): N/A
Outboard Bolt Length (mm): N/A
Outboard Joint Bolt Thread Size: N/A
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Spline
Overall Compressed Length (in): 20.24
Overall Compressed Length (mm): 514
