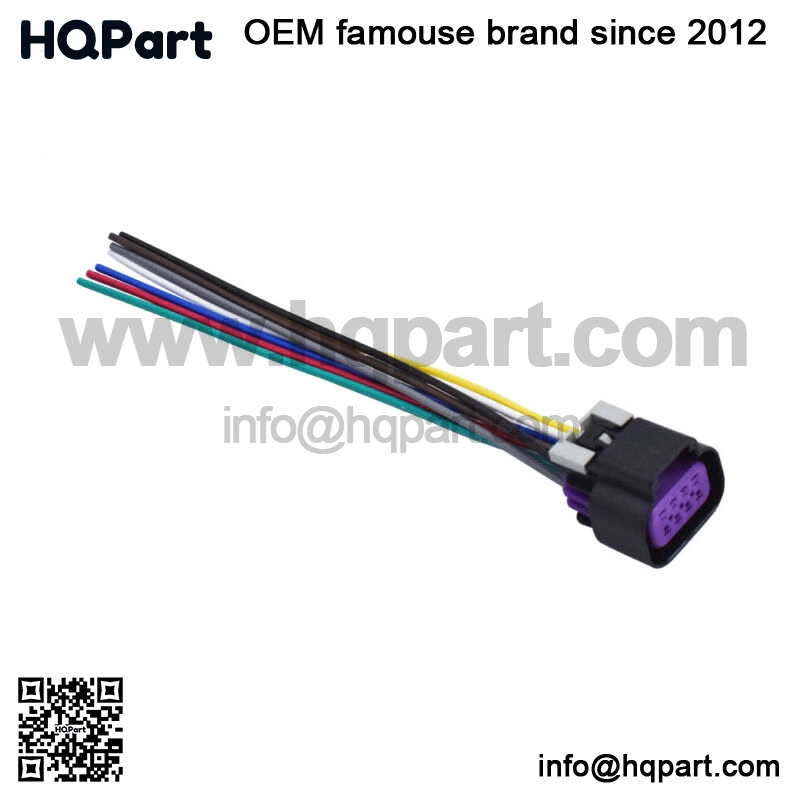

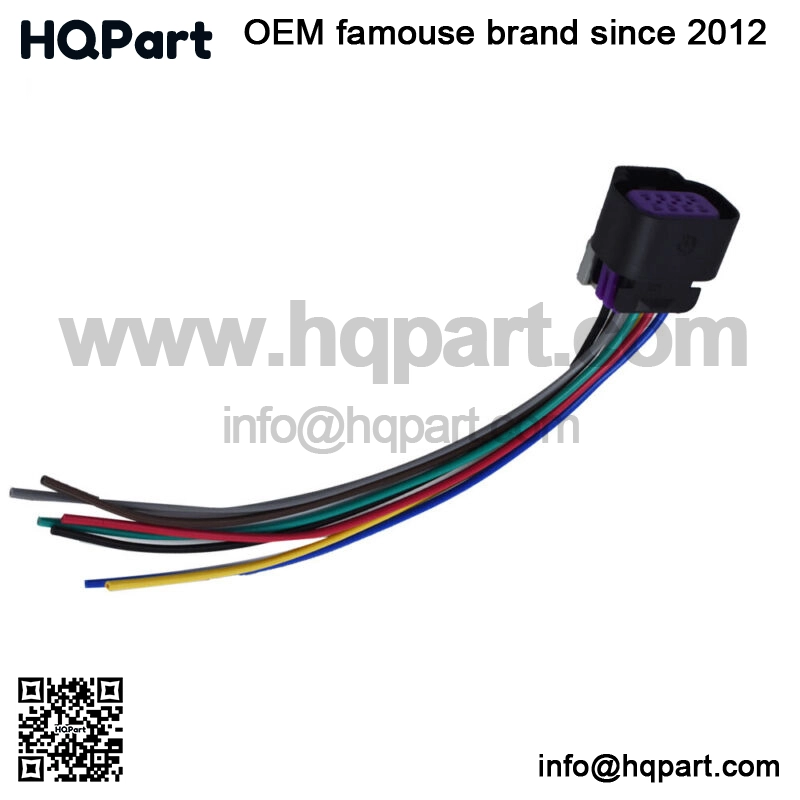

Throttle Body Pigtail Harness 100-00341 Fit For 2003-2005 2006 2007 GM 6.0L LQ9

SKU XS.00614 100-00341 Category Tags ,

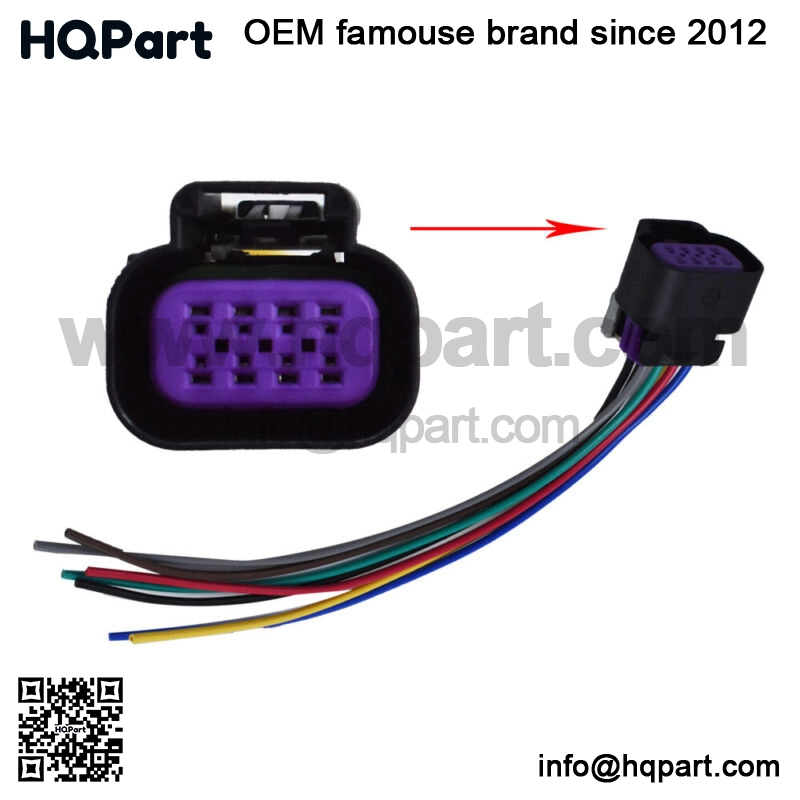

Features??Aftermarket PremiumQuick installation, easy operationMade with High Quality and DurabilityDescription:Throttle Body Pigtail FOR GM 6.0L LQ9 (03-07)CONNECTOR PINOUT DETAILS:PIN WIRE FUNCTIONA 18ga YEL TAC MOTOR CONTROL – 1B 18ga WHT TP SENSOR 2 GROUNDC18ga BRNTAC18ga BRN MOTOR CONTROL – 2D 18ga BLK TP SENSOR 1 GROUNDE 18ga LT BLU TP SENSOR 2 POWER (5V)F 18ga PPL TP SENSOR 2 SIGNALG 18ga DK GRN TP SENSOR 1 SIGNALH 18ga GRY TP SENSOR 1 POWER (5V)Package includes:1 pcs pigtail
