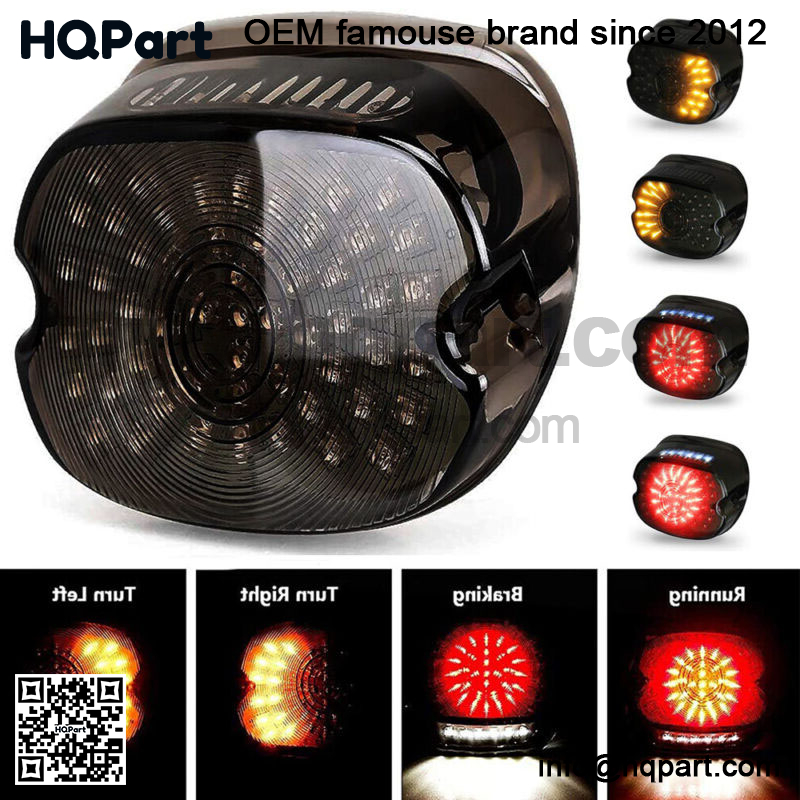

5 Functions in 1:
Turn Left Light (Bright Amber)
Turn Right Light(Bright Amber)
Running Light (Low Red)
Braking Light(High Red)
License Plate Light(White)
Specification:
Power: 30W
LEDs quantity??5W*6
Color temperature: 6500K-7000K
Voltage??12V-30V DC
Lumens??2000LM*2
Size??4″
Bezel Color:Black
Waterproof??IP-67
Working temperature??-40+85??C
Life time??50000+Hours
Material: ABS Plastic
LED Quantity: 60LEDs
Function(Lighting Color): Brake/ Running Light(Red),Turn Signal(Yellow, Left and Right), License Plate Light(White)
Features
All in One Led Tail Light
(LED Tail Light with running light/brake light/Turn Signal Light)
License Plate Light
(Lights up nice and bright and includes a clear lens to illuminate your license plate on the incorporated plate bracket.)
Lay Down Style
(Lay down style, which is angled to follow the curve of your stock fender for the customized look.)
Multi-function, integrated with turn signal light , brake light , running light, tail light, license plate light
Its stylish design is perfect to decorate your motorcycle
This Led Tail Light will upgrade your old tail light
Gives your motorcycle a good look
Easy to install
Wire Connection:
Black Wire——
Negative
White Wire—–
Running
Red Wire——-
Brake Light
Yellow Wire—-
Turn Right
Blue Wire——-
Turn Left
Application:
Compitable for All 1991-2010 FLST Models(except 1991-2001 FLSTF, 2005-2010 FLSTN, 1997-2003 FLSTS, 2005-2007 FLSTSC, 2010 FLSTSE)
Compitable for All 2002-2010 FXST Models(except 2002-2007 FXSTD, 2007-2009 FXSTSSE, 2008-2010 FXCW/C)
Compitable for 1991-2010 Electra Glides(except 2005 FLHTCSE, 2009 FLHT Standard)
Compitable for 1994-2010 Road Kings(except 2007-2008 FLHRSE, 2009-2010 FLHR)
Compitable for 2001 FXDX/T and all 2002-2010 Dynas(except 2009-2010 FXDB, 2009-2010 FXDFSE, 2010 FXDWG)
Compitable for 1999-2020 XL(except XL883N, XL1200CX, XL1200N, Xl1200NS, XL1200V, XL1200X, XL1200XS)
Compitable for2006-2011 Sportster SuperLow XL 1200L & 1999-2019 Sportster Custom XL 1200C
Compitable for1999-2003 Sportster Sport XL 1200S & 2004-2007 Sportster Roadster 1200R
Compitable for2004-2006 Harley Sportster XL883 & 1999-2009 Sportster Custom – XL 883C
Compitable for2011-2019 Sportster SuperLow – XL 883L & 1999-2010 Dyna Super Glide FXD
Compitable for1999-2017 Dyna Low Rider FXDL & 2006-2008 Dyna Street Bob (EFI)-FXDB
Compitable for2008-2013 Dyna Fat Bob-FXDF & 2012-2016 Dyna Switchback FLD
Compitable for1993?C2005, 2007?C2008 & 2016 FXDWG Dyna Wide Glide
Compitable for1999-2009 Electra Glide Standard & 1999-2006 Electra Glide Ultra Classic Injected
Compitable for2006-2016 Heritage Softail FLSTF & 1999-2017 Heritage Softail Classic FLSTC
Compitable for1999-2009 Road Glide FLTR & 1999-2016 Road King FLHR
Compitable for1999-2017 Softail Fat Boy FLSTF & 2010-2016 Softail Fat Boy Lo FLSTFB
Compitable for1999-2016 Softail Night Train FXSTB & 1999-2006 Softail Standard FXST
Compitable for2006-2013 Street Glide – FLHX
* It can not be installed on models with exclusive tail light such as XL 1200X, XL883N or Dyna wide glide,2007 Harley Davidson Sportster XL1200L.
Connector:
Please confirm the red wire(brake function) and white wire(running function) position
After confirm the position, then insert them in, and press the plug. Please double check red and white wire position before you insert them to the white plug of the taillight, because they can not be taken out from the plug once they are inserted into the white plug.
Integrated turn signal lights, using the yellow wire(turn right) blue wire(turn left) from the tail light, they can be connected to your current turn signals to add LED turn signal functions.
Note: Some old model it may need the resistor(package is not include) for turn signal if it is hyper flashing.
Package:
1 Piece of Low Profile Harley Davidson Led Tail Light
1 Piece of Gasket (prevent water infiltration)
