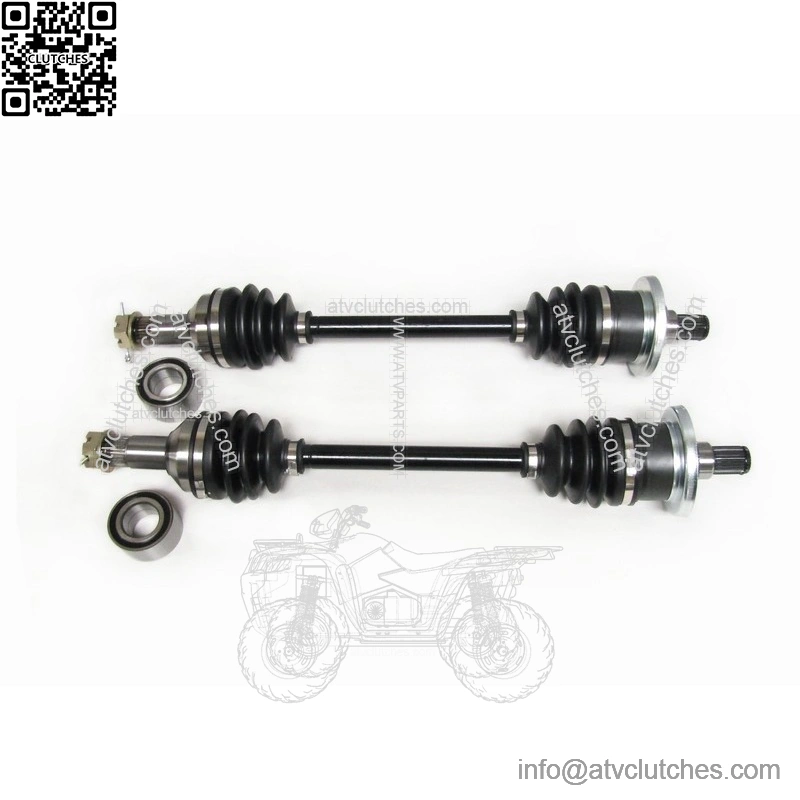

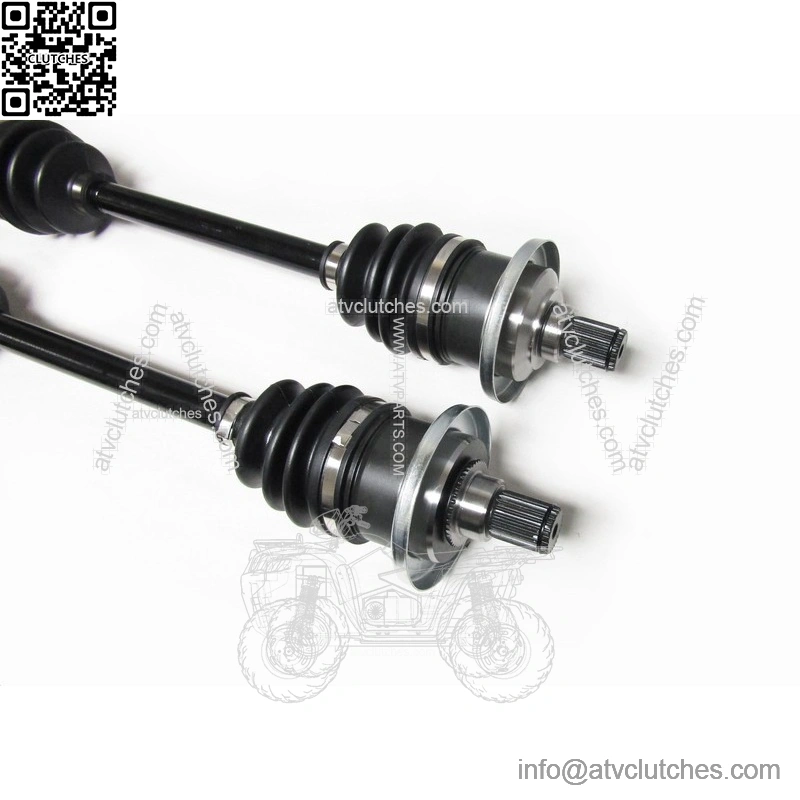

This is a set of new Front CV axles & wheel bearings for an Arctic Cat ATV.
They replace the following OEMs:
(axles) 1502-344, 1502-345, 0502-812, 1502-874, 1502-873, 0502-813
(bearings) 1402-027, 1402-809
Front, Left & Right
*Not intended for use in lifted vehicles
Product features:
Stronger than OEM chromoly hardened steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
High speed bearings manufactured for long life
Double lip seals made to keep grease in and dirt out
Inboard CV joint spline count: 24 (both)
Outboard CV joint spline count: 27 (both)
Compressed overall axle length: Left 550 mm, Right 548 mm
