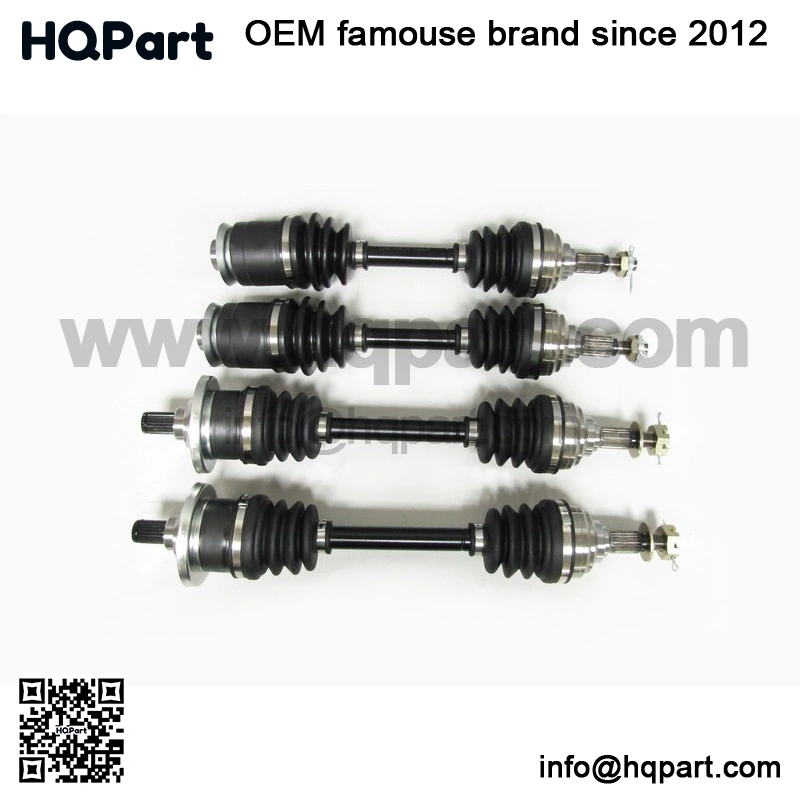

This is a set of new Front & Rear CV axles for an Arctic Cat ATV.They fit the following 4×4 models:2002-2004 … 2502002-2004 … 300*Not intended for use in lifted vehiclesProduct features:
Stronger than OEM, chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Inboard spline count: Fronts – 21, Rears – 22
Outboard CV joint spline count: Fronts – 21, Rears – 21
Compressed overall axle length: Fronts – 500 mm, Rears – 436 mm
Replaces OE # (fronts) 1502-528, 0402-365, 1502-530, 0402-987, (rears) 0402-171, 0402-777, 1402-002, 1502-529, 1502-531
