Scag MAG-61 SM-52 SM-61 SM-72 04001-41 04040-10 Deck Blade Bolt & Washer

Premium Quality Replacement Part
Deck Blade Bolt Nut and Washer
Compatible With Scag Models:
Cheetah Zero-Turn Mower/Deck Size 48″
(Sn: J9600001 – J9699999) (Sn: L6100001 – L6199999)
(Sn: L6200001 – L6299999)(Sn: J9700001 – J9799999)
Scz48v-22fx 22hp Kaw.
Scz48v-23cv-Efi 23hp Koh.
Scz48v-26bs 26hp B&S (Sn: K4400001 – K4499999)
Deck Size 52″
(Sn: J9900001 – J9999999)(Sn: L6300001 – L6399999)
(Sn: K0100001 – K0199999)(Sn: L6400001 – L6499999)
Scz52v-23fx 23hp Kw.
Scz52v-25cv 25hp Koh. (Sn: K0000001 – K0099999)
Scz52v-25cv-Efi 25hp Koh.
Scz52v-26bs 26hp B&S (Sn: K0200001 – K0299999)
Deck Size 61″
(Sn: F8400001 – F8499999)(Sn: H7700001 – H7799999)
(Sn: N2600001 – N2699999) (Sn: P0100001 – P0199999)
Scz61rd-31fx 31hp Kw. (Sn: P0400001 – P0499999)
Scz61rd-921fx Kw. 921fx (Sn: H7900001 – H7999999)
Scz61v-27fx 27hp Kw. (Sn: P0000001 – P0099999)
Scz61v-31cv-Efi 31hp Koh.
Scz61v-31fx 31hp Kw. (Sn: F5000001 – F5099999)
Scz61v-32bv 32hp Vang. (Sn: F5100001 – F5199999)
Scz61v-34kh 34hp Koh.
Scz61v-36bv 36hp Vang. (Sn: H7800001 – H7899999)
Scz61v-37bv-Efi 37hp Vang. (Sn: P6000001 – P6099999)
Scz61v-850fx Kw. 850fx (Sn: H7500001 – H7599999)
Scz61v-921fx Kw. 921fx (Sn: H7600001 – H7699999)
Deck Size 72″
Mag-61 (Mag-72) Magnum Iii (Sn: 60000 – 69999)
Mag-61 Magnum Iii 61″ (Sn: 70000 – 79999)
Scz72v-31fx 31hp Kw. (Sn: P0500001 – P0599999)
Mower Deck
(Sn: 5350001 – 5359999)
(Sn: 6410001 – 6419999), (Sn: A4000001 – A4099999)
(Sn: D8900001 – D8999999)
Sm-52 52″ (Sn: 4160001 – 4169999)
Sm-61 61″ (Sn: 4170001 – 4179999)
Sm-61a 61″ (Sn: 5370001 – 5379999)
Sm-61b 61″ (Sn: 4190001 – 4199999)
Sm-61e 61″ (Sn: 5350001 – 5359999)
Sm-61v Velocity Plus 61″ (Sn: B3700001 – B3799999)
Sm-72 72″ (Sn: 5360001 – 5369999)

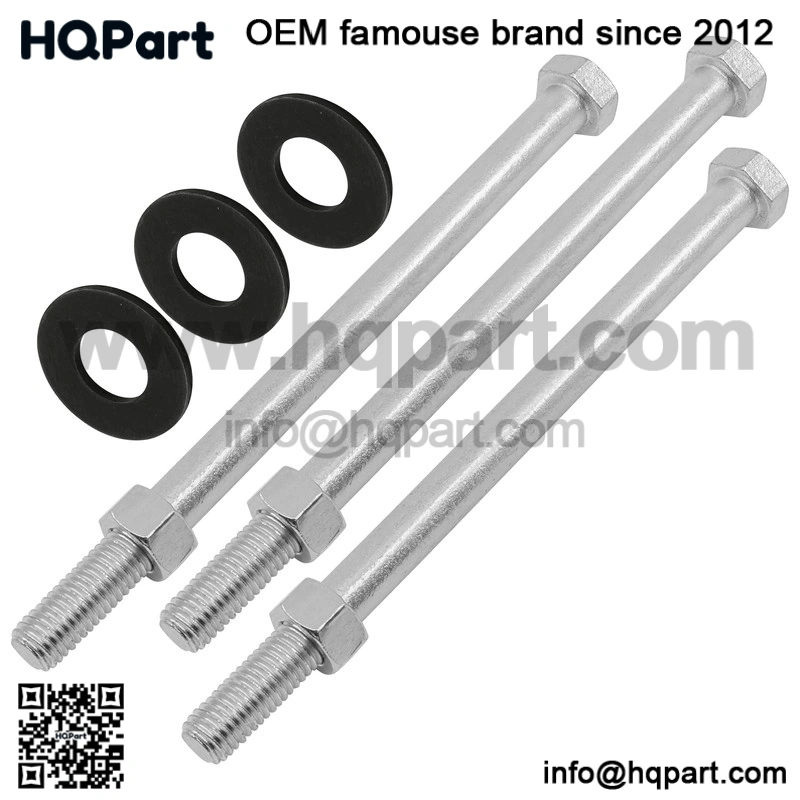

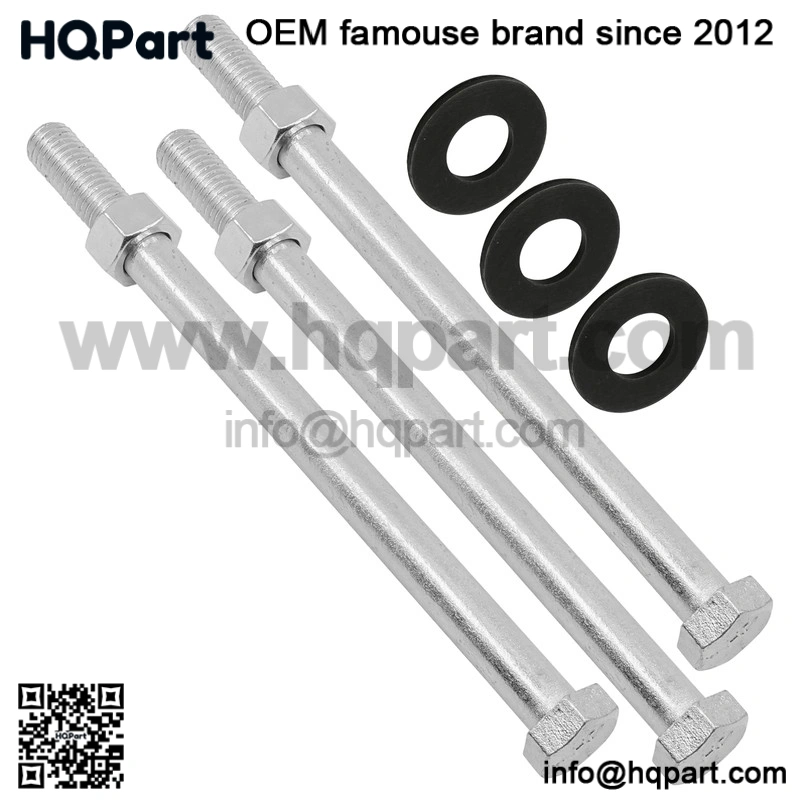

Order Includes:

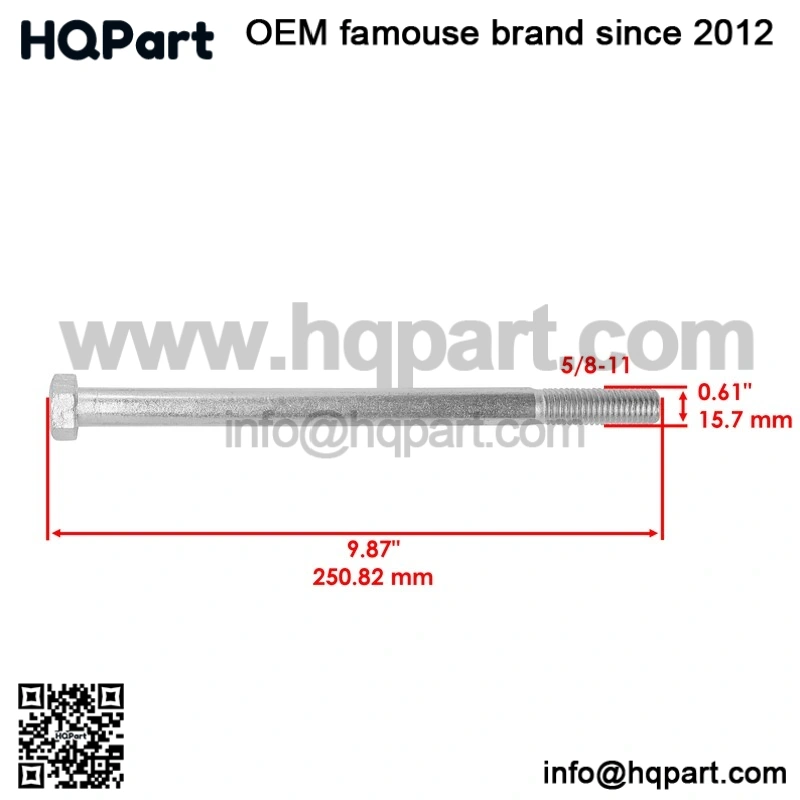

3 x Blade Bolt: 0400141, 04001-41, 04001-158
Length: 250.82 mm – 9.87 in
Threads: 5/8-11 X 9-1/2
Stud Diameter: 15.7 mm – 0.61 in

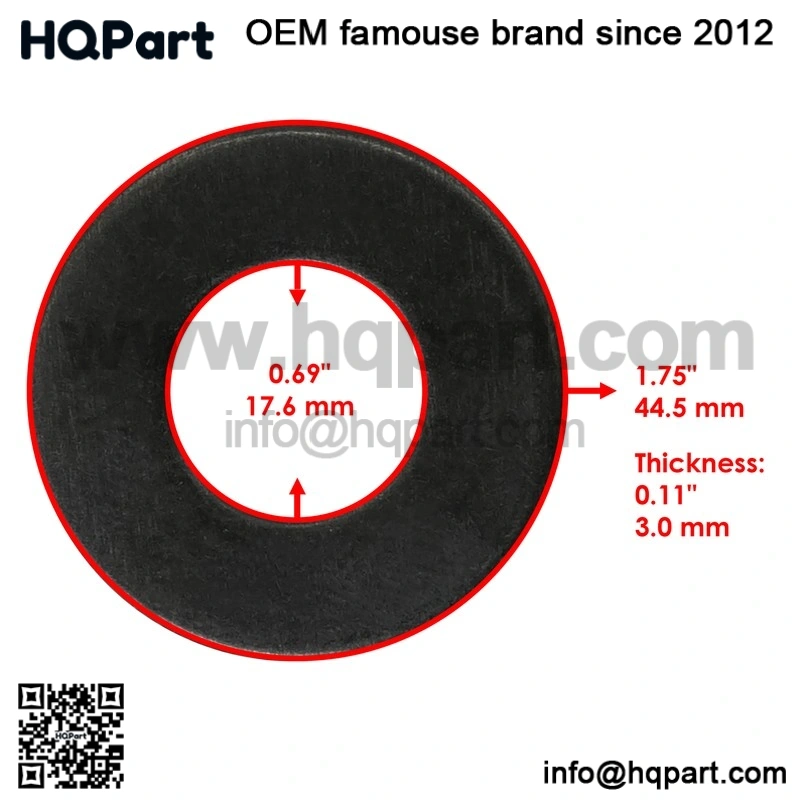

3x Washer: 04040-10, 04043-06
Thickness: 3 mm – 0.11 in
Inner Diameter: 17.6 mm – 0.69 in
Outer Diameter: 44.5 mm – 1.75 in
