Rear Upper Outer ControlArm Bushing Kit For Polaris Sportsman 550 Forest 2011-14

Premium Quality Replacement Part
Rear Upper Outer Left & Right Control Arm Bushing Kit
For Polaris Models:
Sportsman 550 Forest 2011-2014
Control Arm Part Number:
Rear Upper Left 1025619-067 1017216-067
Rear Upper Right 1025620-067 1017217-067
Note:

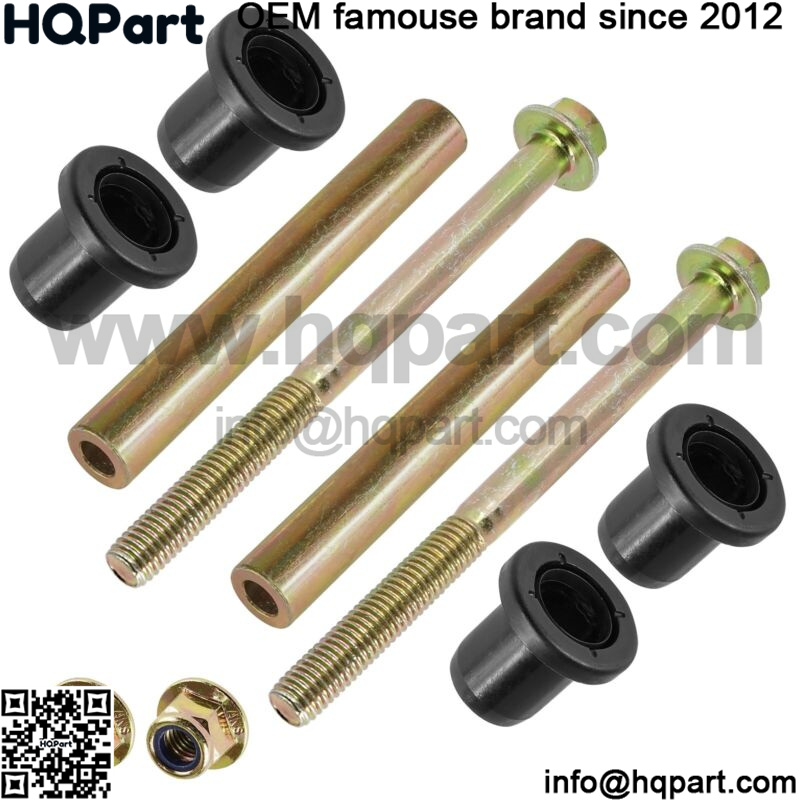

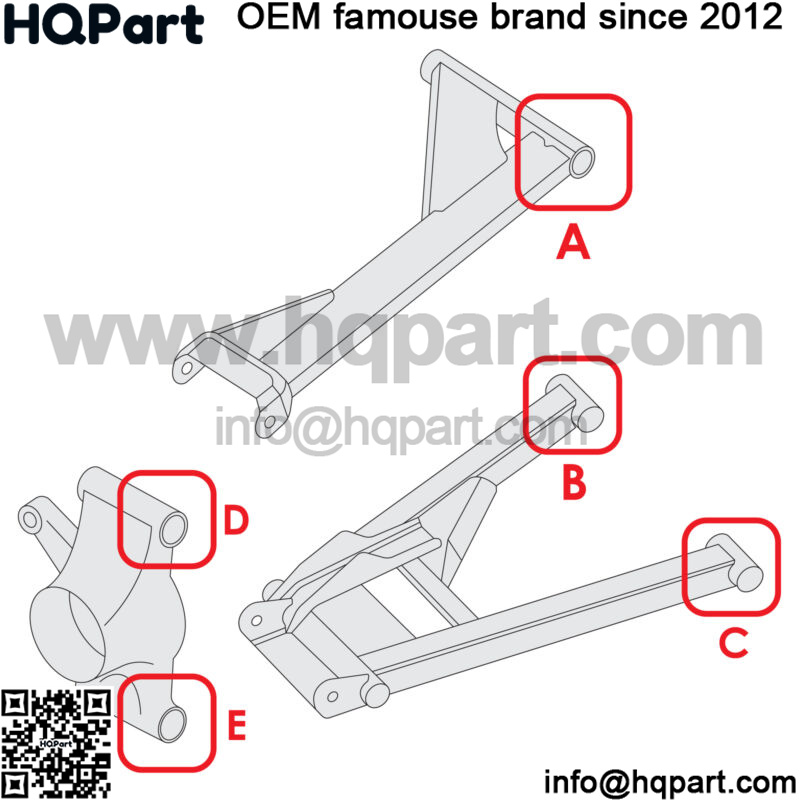

Installs On Location (D) In Second PictureOrder Includes:

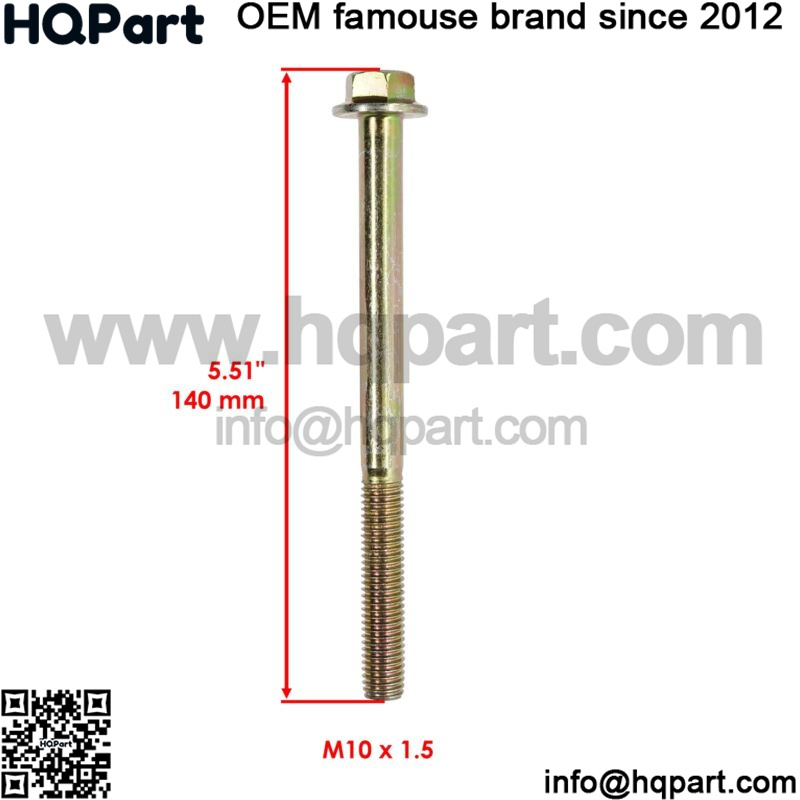

2x Bolt : 7518675
Height : 140mm
Thread size : M10X1.5
2x Nut : 7547313
Height : 13mm
Inner Diameter : 8.5mm
Outer Diameter : 21.5mm
Thread Size : M10X1.5
2x Pivot Shaft : 5137590 5135501
Length : 105mm
Inner Diameter : 10mm
Outer Diameter : 16mm
4x Bushing : 5439874 5436505 5436832
Height : 30mm
Inner Diameter : 16mm
Outer Diameter : 31mm
**
