Premium Quality Replacement Part
Rear Upper Outer Left or Right Control Arm Bushing Kit
For Models:
Sportsman 850 HL 2016-2019
Control Arm Part Number:
Rear Upper Left 1025619-067 1017216-067
Rear Upper Right 1025620-067 1017217-067
Note:

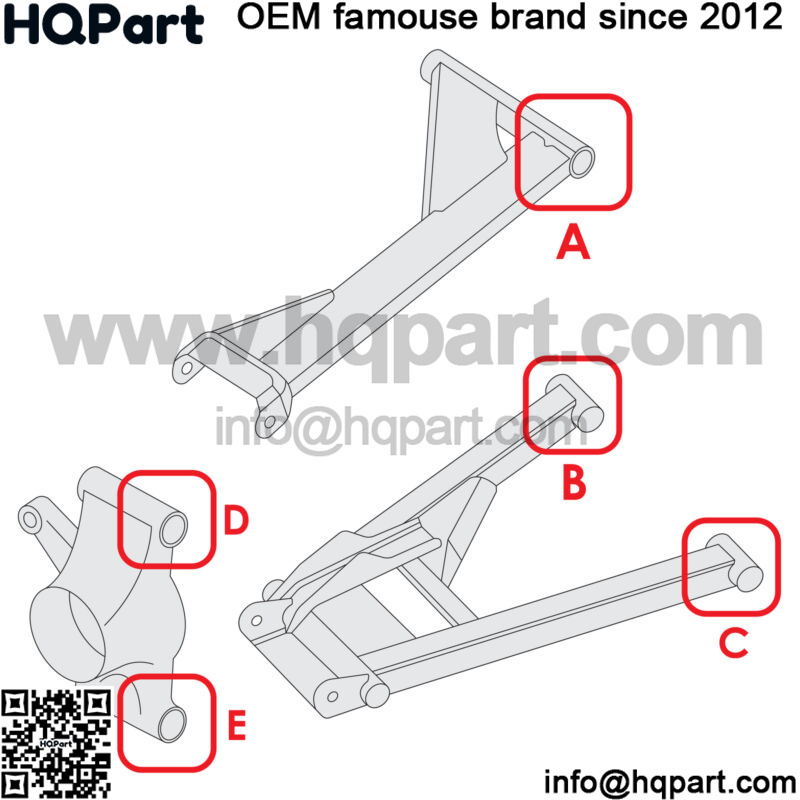

Installs On Location (D) In Second Picture

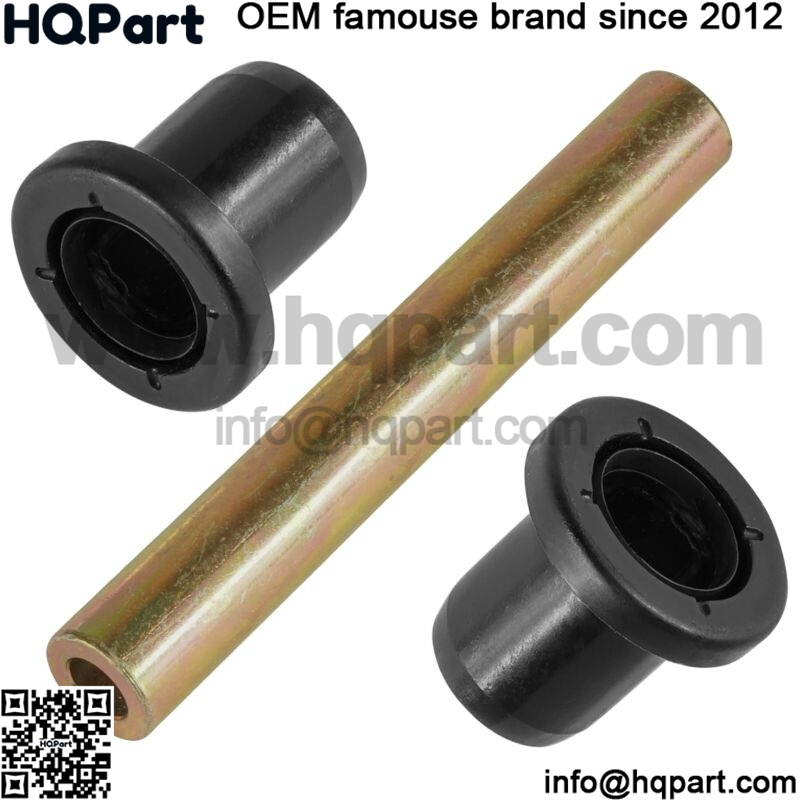

Order Includes:

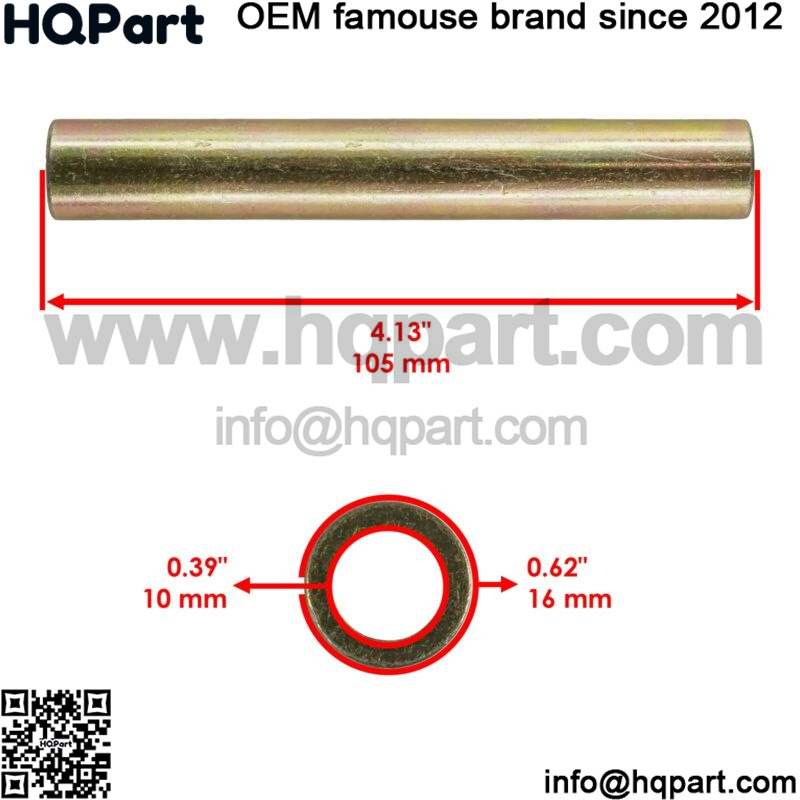

1x Pivot Shaft : 5137590 5135501
Length : 105mm | 4.13″
Inner Diameter : 10mm | 0.39″
Outer Diameter : 16mm | 0.62″
2x Bushing : 5439874 5436505 5436832
Height : 30mm | 1.1″
Inner Diameter : 16mm | 0.62″
Outer Diameter : 31mm | 1.2″
**
