Premium Quality Replacement Part
Rear Upper Lower Outer Left & Right Control Arm Bushing Kit
For Polaris Models:

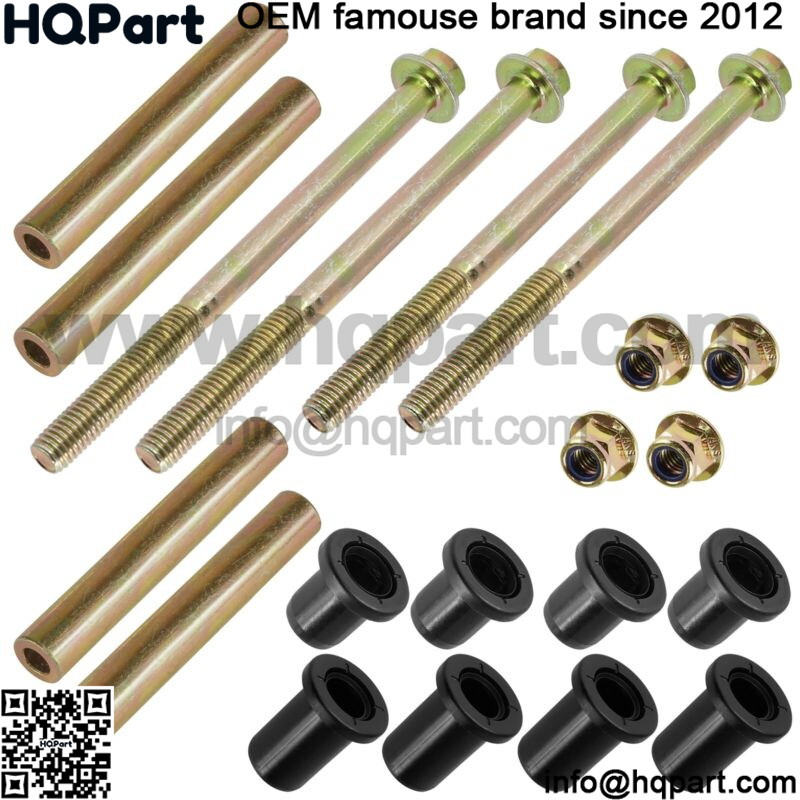

Sportsman XP 550 2010Order Includes:
2x Short Pivot Shaft : 5137590 5135501
Dimensions : 10X19X117mm
2x Long Pivot Shaft : 5136473
Dimensions : 10X16X105mm
4x Long Bushing : 5437651
Dimensions : 19X37.7X47mm
4x Short Bushing : 5439874 5436832 5436505
Dimensions : 16X31X30mm
2x Long Bolt : 7518467
Length : 150mm
Thread size : M10X1.5
2x Short Bolt : 7518675
Length : 140mm
Thread size : M10X1.5
4x Nut : 7547313
Inner Diameter : 8.5mm
Outer Diameter : 21.5mm
Height : 13mm
Thread Size : M10X1.5

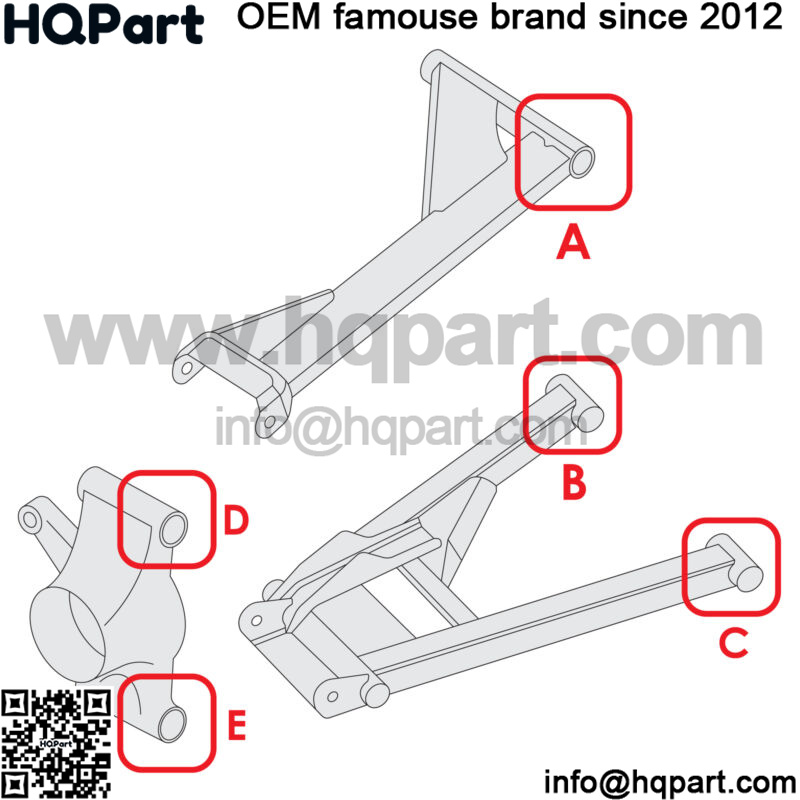

Note: Installs On Location (E) & (D) In Second Picture
Control Arm Part Number:
Rear Upper Left 1025619-067 1017216-067
Rear Upper Right 1025620-067 1017217-067
Rear Lower Left 1019410-067 1017154-067
Rear Lower Right 1019411-067 1017155-067
**
