Premium Quality Replacement Part
Rear Lower Outer Left or Right Control Arm Bushing Kit
For Polaris Models:
ACE 900 2016-2019
Order Includes:

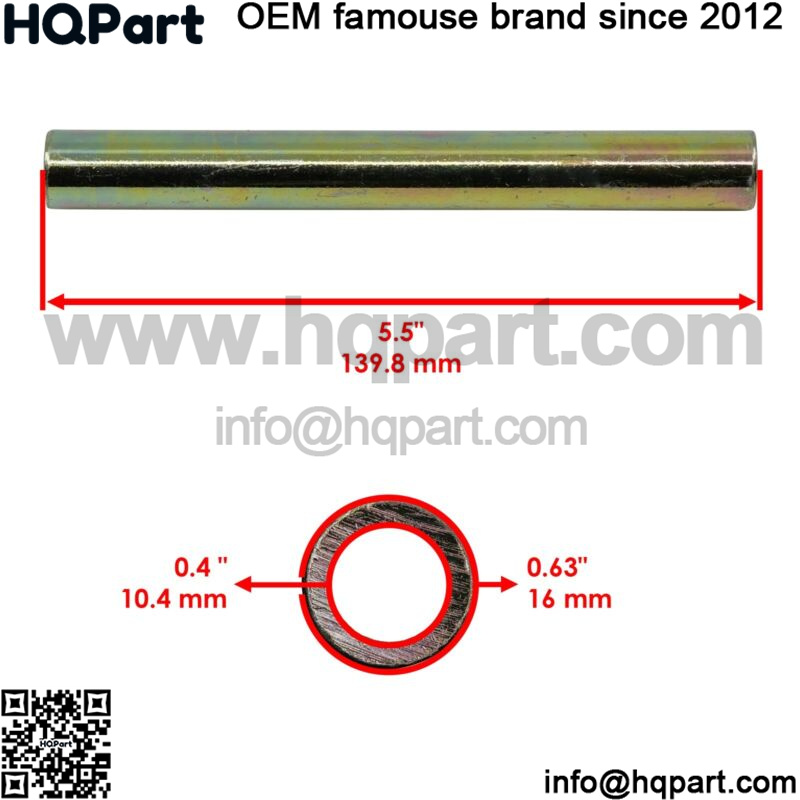

1 x Long Pivot Shaft | 5138796
Length : 139.8mm | 5.5″
Inner Diameter : 10.4mm | 0.4″
Outer Diameter : 16 mm | 0.63″
2 x Short Bushing | 5439874 5436832 5436505
Height : 30 mm | 1.1″
Inner Diameter : 16 mm | 0.62″
Outer Diameter : 31 mm | 1.2″

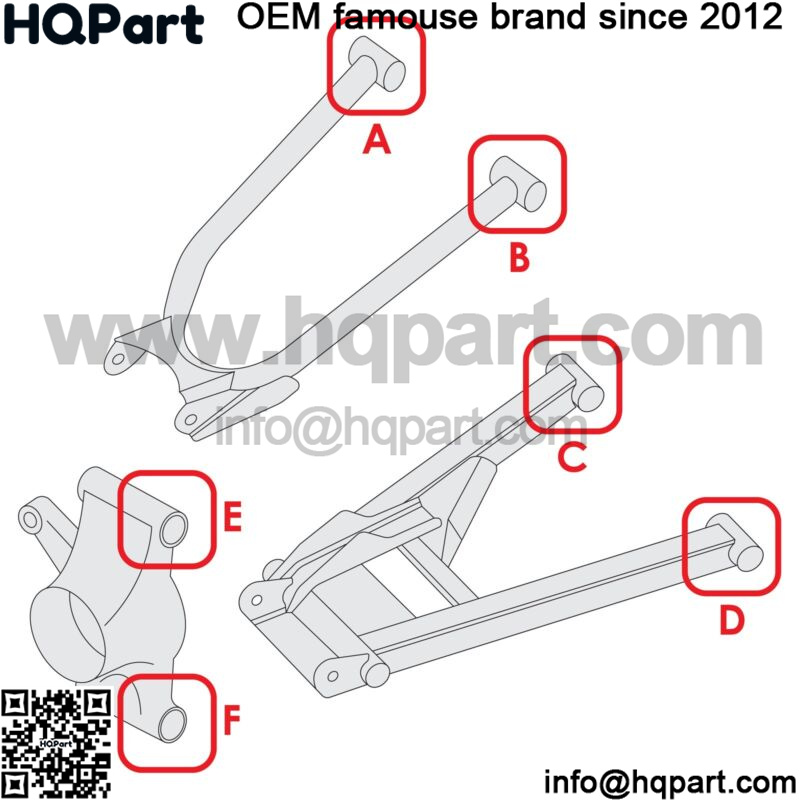

Note: Installs On Location (F) In Second Picture
Control Arm Part Number:
Rear Lower Left 1018115-458 1021704-458 1018460-458 1018460-689 1018460-293
Rear Lower Right 1018116-458 1021705-458 1018461-458 1018461-689 1018461-293
**
