Premium Quality Replacement Part
Rear Differential Kit
Compatible with Honda Models :
Rancher 420 TRX420FA AT 2009-2013
Rancher 420 TRX420FPA AT 2009-2013

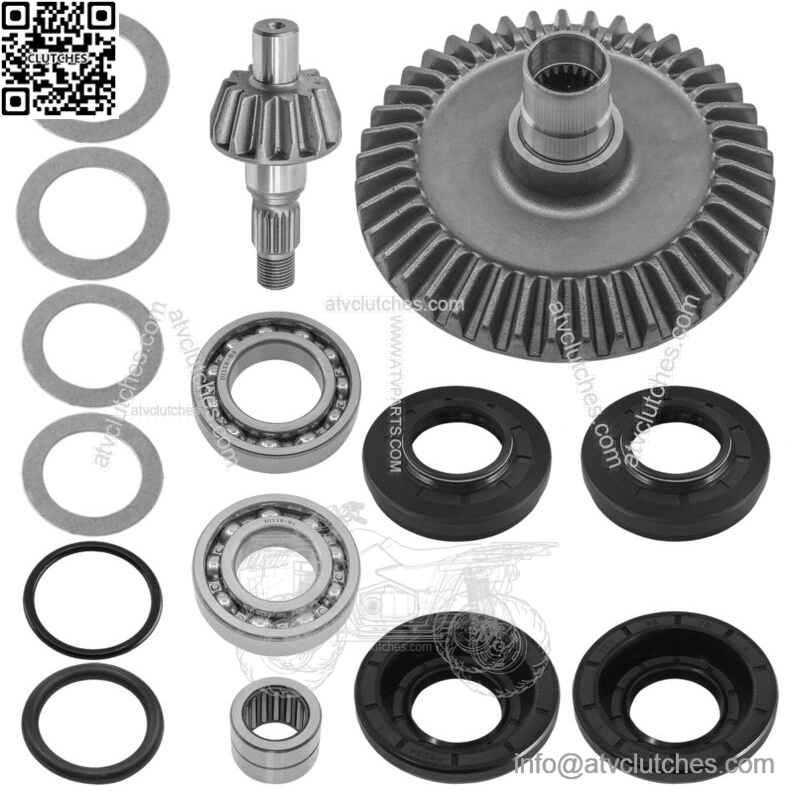

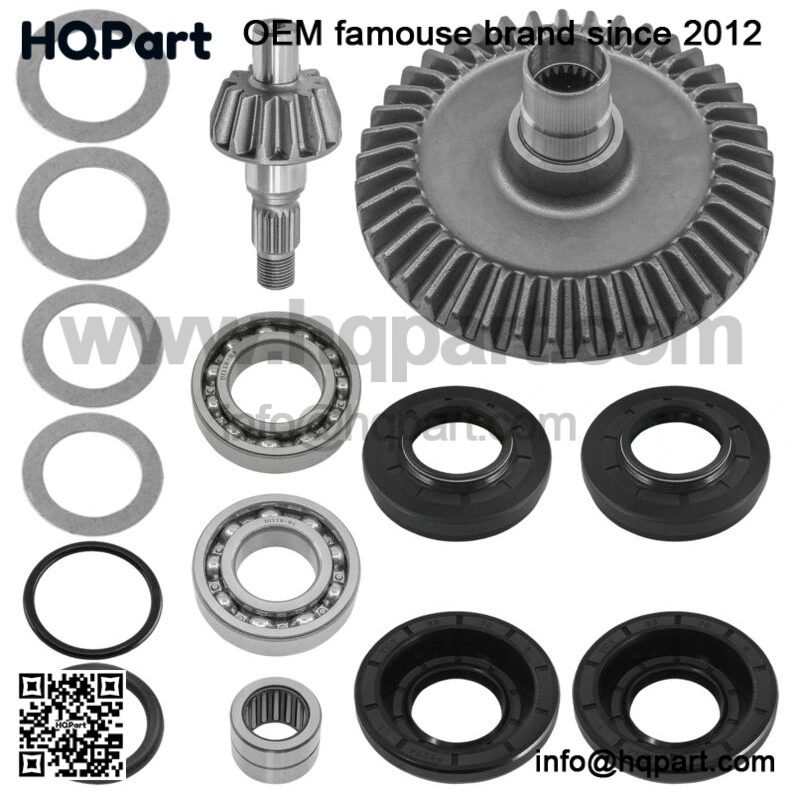

Order Includes :
1x Rear Differential Gear Ring & Pinion : 41431-HN8-000, 41421-HN8-A40, 41421-HN8-000
Inner Diameter : 22.4mm – 0.88 in
Outer Diameter : 144mm – 5.66 in
Width : 91.2mm – 3.59 in
1x O Ring : 91302-001-020
1x O Ring : 91312-KE7-003

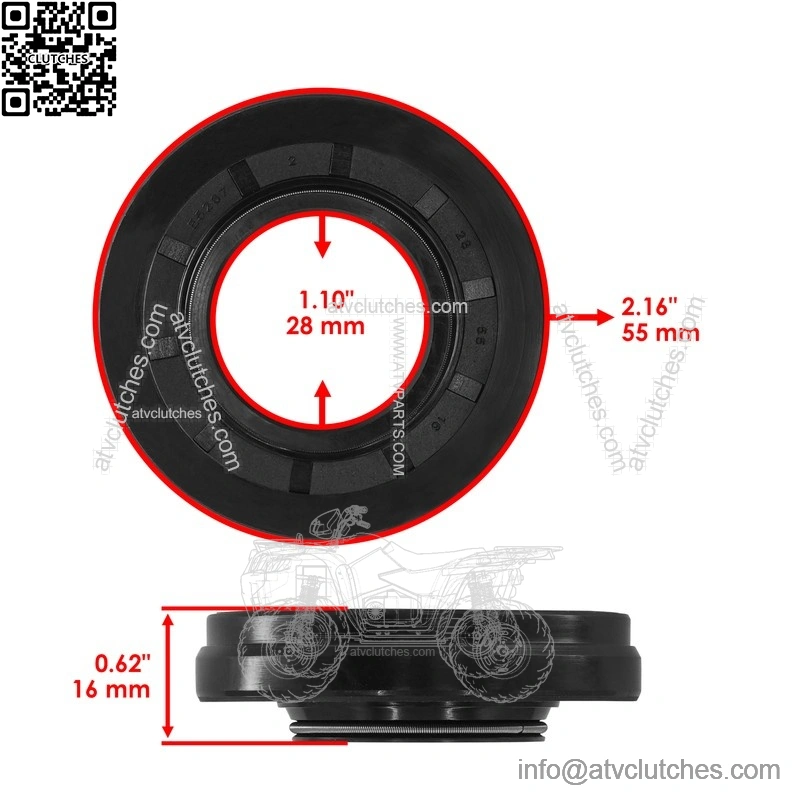

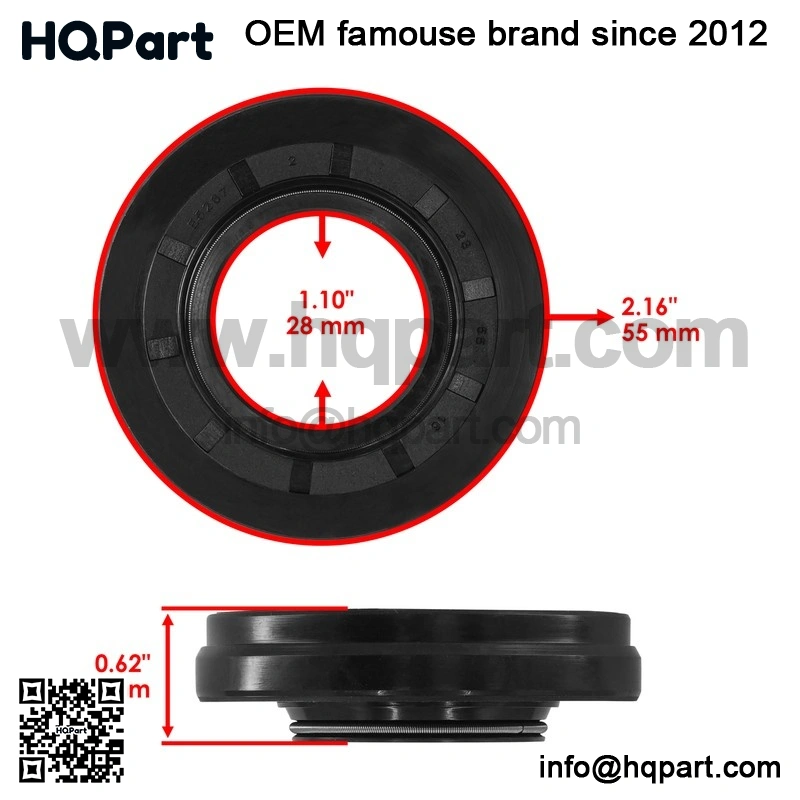

2x Rear Differential Seal : 91203-HN8-003
Inner Diameter : 28mm – 1.10 in
Outer Diameter : 55mm – 2.16 in
Width : 16mm – 0.62 in

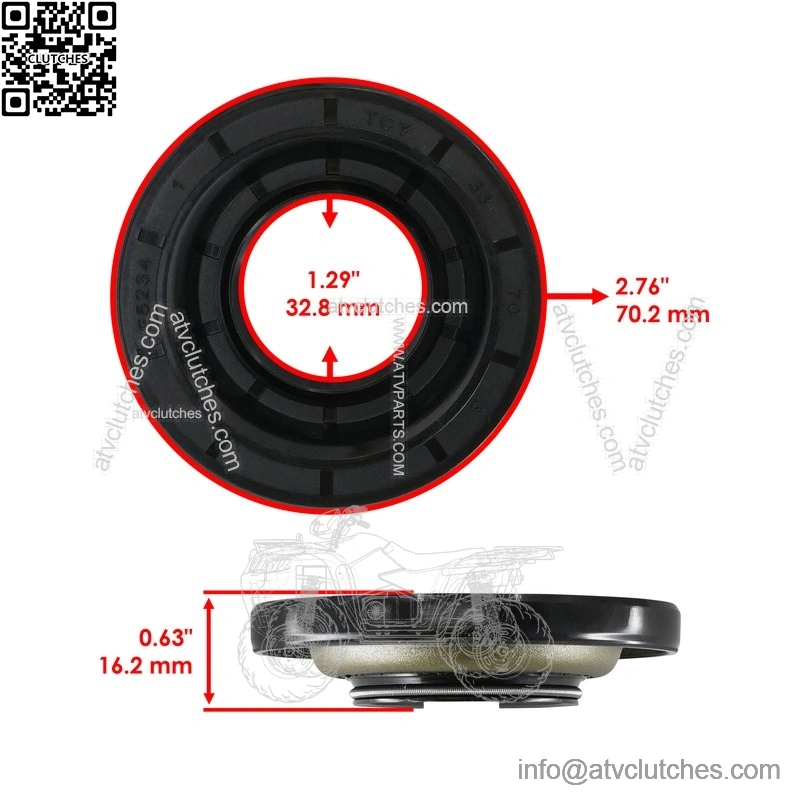

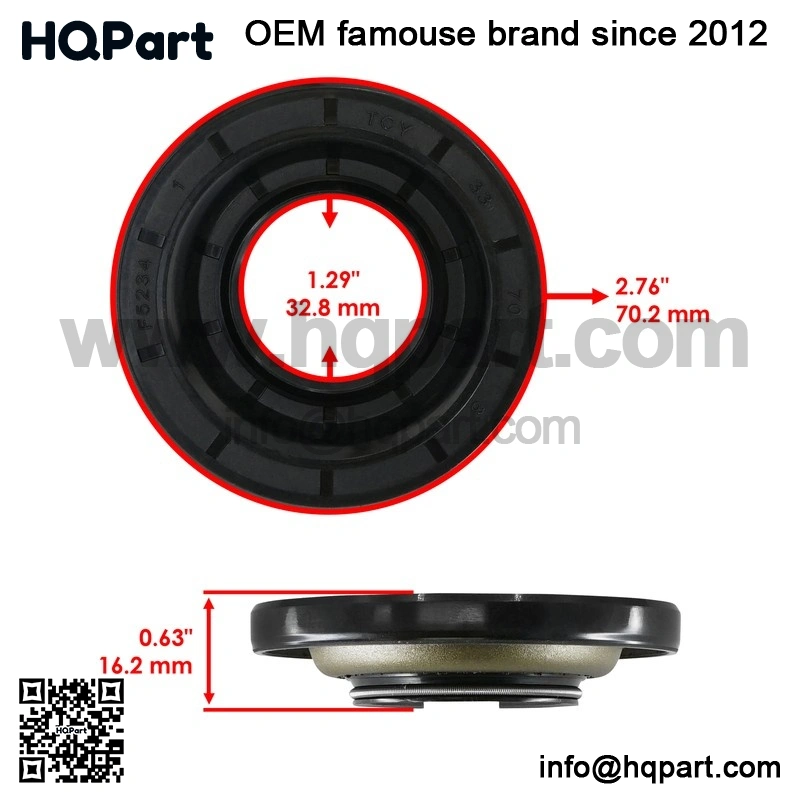

2x Rear Differential Seal : 91251-HN8-003
Inner Diameter : 32.8mm – 1.29 in
Outer Diameter : 70.2mm – 2.76 in
Width : 16.2mm – 0.63 in

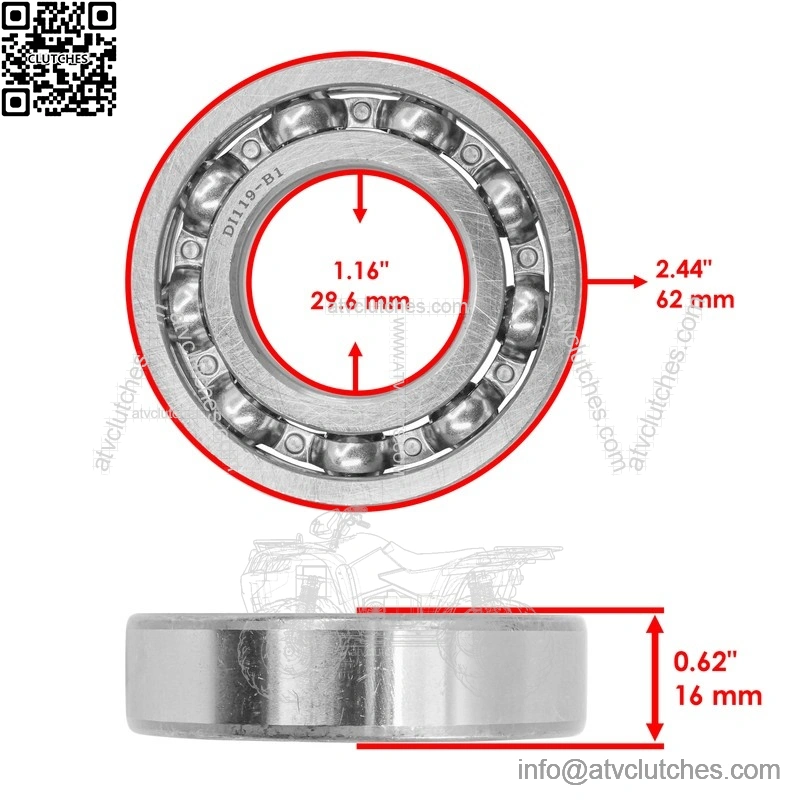

1x Gearbox Bearing : 96100-62063-00
Inner Diameter : 29.6mm – 1.16 in
Outer Diameter : 62mm – 2.44 in
Width : 16mm – 0.62 in

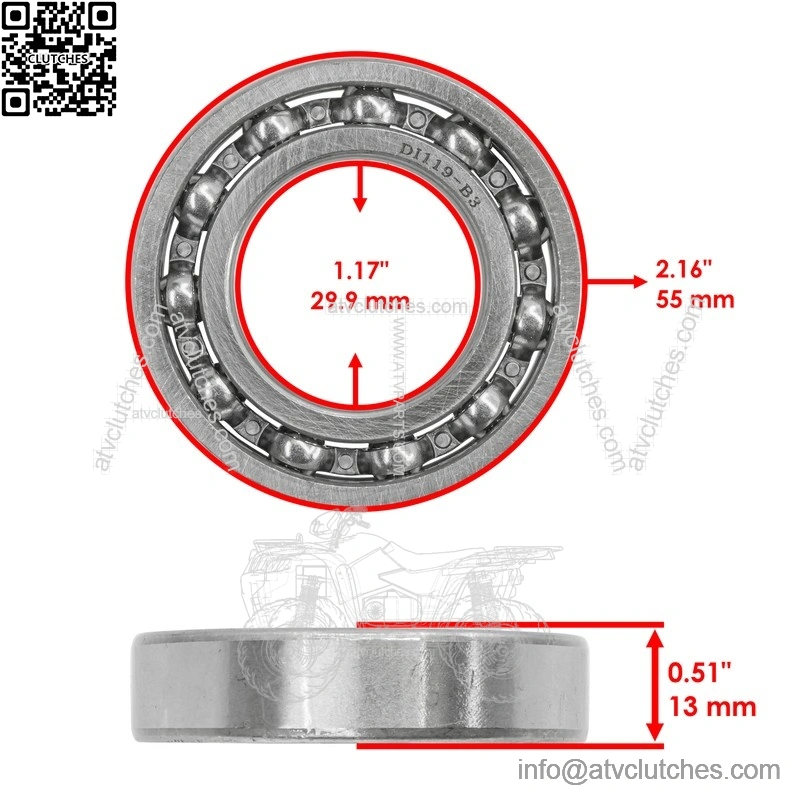

1x Gearbox Bearing : 96100-60063-00
Inner Diameter : 29.9mm – 1.17 in
Outer Diameter : 55mm – 2.16 in
Width : 13mm – 0.51 in
1x Bearing : 06911-HN8-000, 91012-KF0-000
Width : 20.0mm – 0.78 in
Inner Diameter : 18.5mm – 0.72 in
Outer Diameter : 28.0mm – 1.10 in
2x Pinion Shim B : 41448-HM8-000
Inner Diameter: 30.6mm – 1.2 in
Outer Diameter: 39.8mm – 1.56 in
Thickness: 2mm
2x Pinion Shim B : 41451-MG8-000
Inner Diameter: 25.8mm – 1.01 in
Outer Diameter: 34mm – 1.33 in
Thickness: 2mm
Differential Part Number : 41300-HP7-A00
