Rear Differential Gear & Pinion Bearing Kit for Can-Am Outlander Max 650 6×6 (2022-2023)

Premium Quality Replacement Part

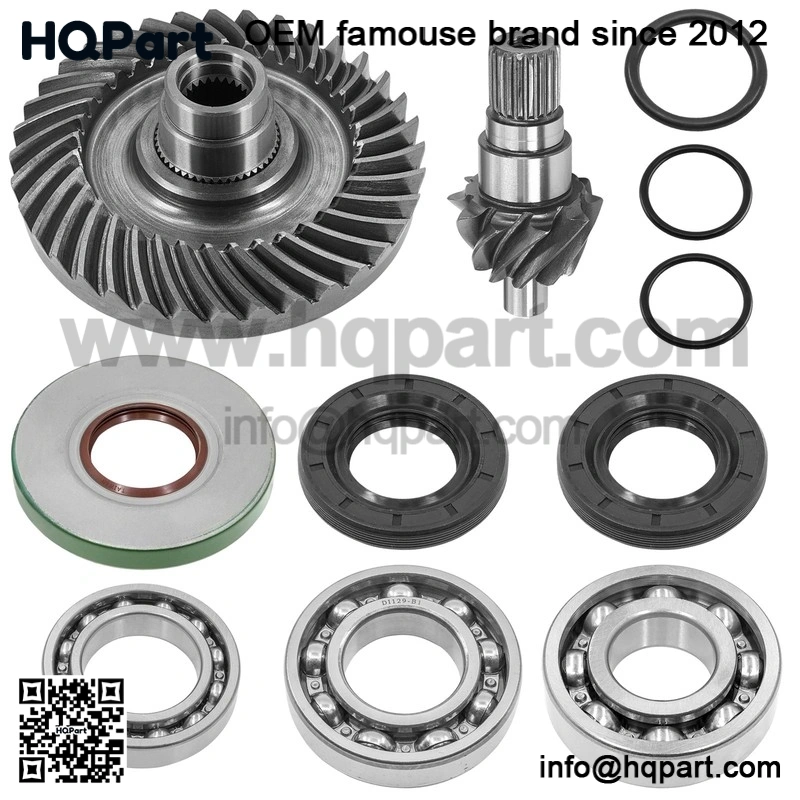

Rear Differential Gear Ring And Pinion with Bearings & Seals & O Rings
Compatible with Can Am Models:
Commander 1000R EFI 2018-2019
Commander Max 1000R EFI 2018-2019
Commander 1000 2014-2015
Commander Max 1000 2014-2015
Commander 800R EFI 2018-2019
Commander Max 800R EFI 2018-2019
Commander 800 Std 2014
Commander 800 2015
Outlander Max 650 6×6 2022-2023
Compatible with Rear Differential with 705502517, 705501804, 705502096, 705502331, 705502370
Order Includes:

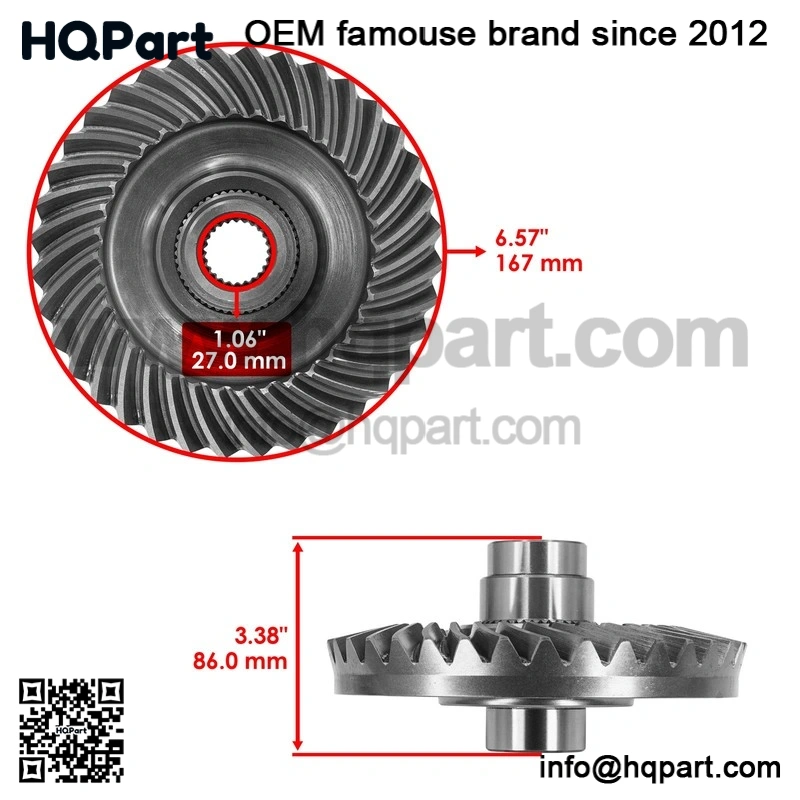

1x Rear Differential Gear Ring & Pinion : 705502109, 705501871
Bore : 167 mm – 6.57 in
Inner diameter: 27 mm – 1.06 in
1x O Ring: 705501883
Inner Diameter : 15.5 mm – 0.61 in
Outer Diameter : 20 mm – 0.78 in
Width : 2 mm – 0.07 in
2x O Ring: 705501880
Inner Diameter : 7.5 mm – 0.29 in
Outer Diameter : 11 mm – 0.43 in
Width : 1.4 mm – 0.05 in
1x Seal: 705501878
2x Seal: 705502110, 705501879
Inner Diameter : 30 mm – 1.18 in
Outer Diameter : 55 mm – 2.16 in
Width : 8.3 mm – 0.32 in

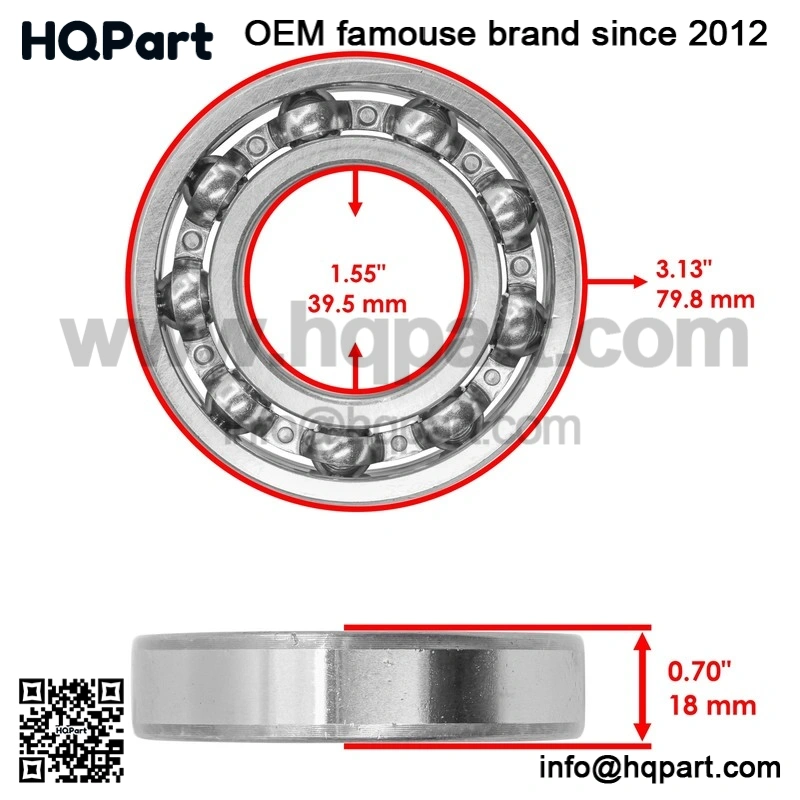

1x Bearing: 705501875
Inner Diameter : 39.5 mm – 1.55 in
Outer Diameter : 79.8 mm – 3.13 in
Width : 18 mm – 0.70 in

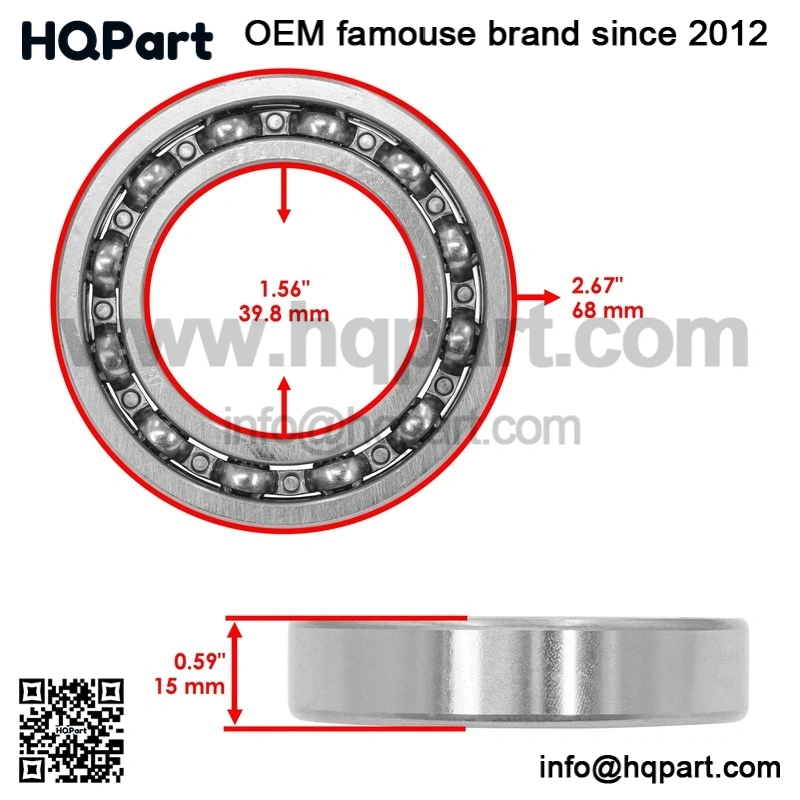

1x Bearing: 705501876
Inner Diameter : 39.8 mm – 1.56 in
Outer Diameter : 68 mm – 2.67 in
Width : 15 mm – 0.59 in
1x Bearing:705501877
Inner Diameter : 35 mm – 1.37 in
Outer Diameter : 80 mm – 3.14 in
Width : 21.5 mm – 0.84 in
