Rear Bearing Carrier Lower Bushing Kit For Polaris Worker 500 1999-2001

Premium Quality Replacement Part
Rear Bearing Carrier Lower Bushing Kit For Polaris Worker 500 1999-2001
Note : This Listing Only Outer Bushing Kit For Rear A-Arm / Control Arm
This is The Bushing Kit Where the lower A-Arm connects To Bottom Of the Bearing Carrier.
1 Kit Require Per Arm
This Kit Does Not Contain An A-ArmFor Polaris Models:
Worker 500 1999-2001
A-Arm Part Number:
1012717-067 1012718-067
Note:
Installs On Location (F) In Second PictureOrder Includes:

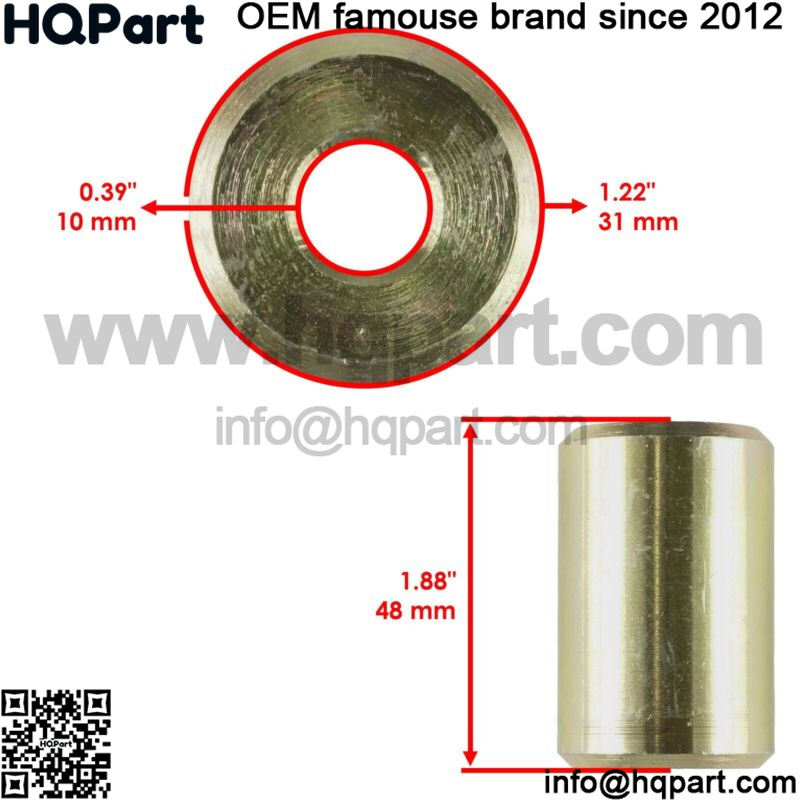

2x Pivot Shaft : 5131883 5020825
Length : 48mm
Inner Diameter : 10mm
Outer Diameter : 31mm
4x Bushing : 5438902 5433065 5432092 5434550
Height : 18.5mm
Inner Diameter : 31mm
Outer Diameter : 47.5mm
**
