Rear Axles & Bearings for Can-Am Outlander & Renegade 650 850 & 1000

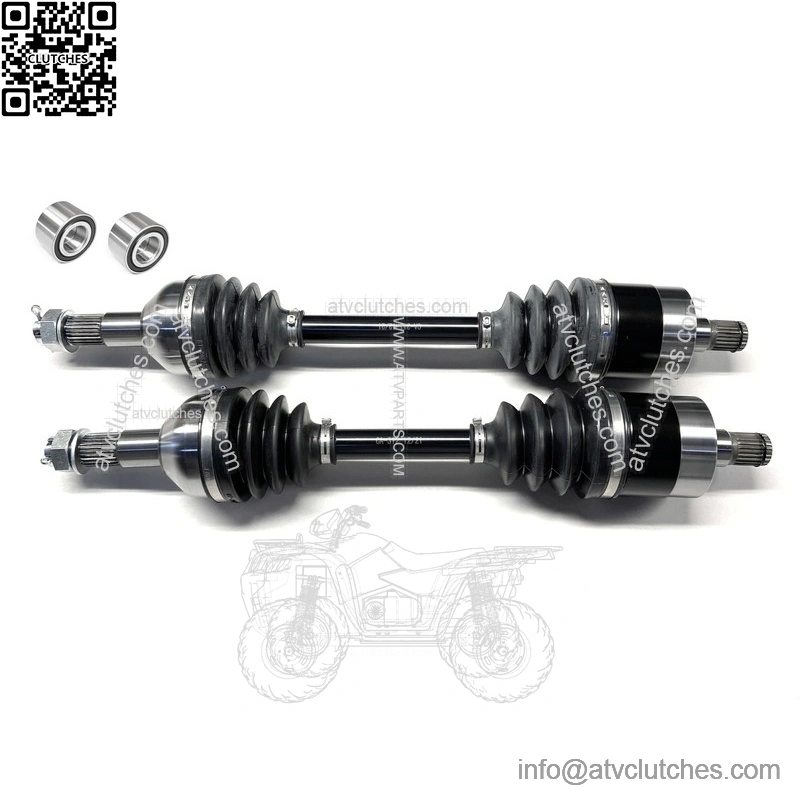

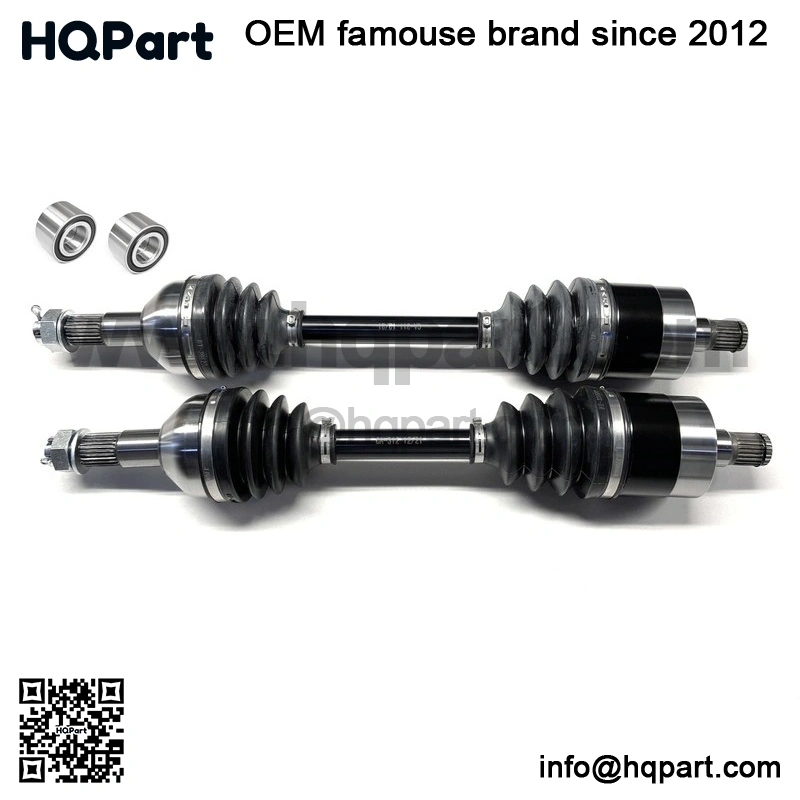

This is a set of new rear CV axles & wheel bearings for a Can-Am ATV.

They fit the following models:

2019-2023 Outlander 650/MAX 4×4

2019-2023 Outlander 850/MAX

2019-2023 Outlander 1000/MAX 4×4

2019-2022 Renegade 570

2019-2022 Renegade 850

2019-2023 Renegade 1000

(please note these will not fit XMR models)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar

Greased with a moly based grease to provide superior joint lubrication

Fitted with neoprene CV boots for added wear & puncture resistance

High speed bearings manufactured for long life

Double lip seals made to keep grease in and dirt out

Inboard CV joint spline count: 24 (both)

Outboard CV joint spline count: 26 (both)

Compressed overall axle length: Left – 575 mm, Right – 535 mm
