Rear Axle for Pair Honda Limited Edition Pioneer 1000 & 1000-5, 17-21

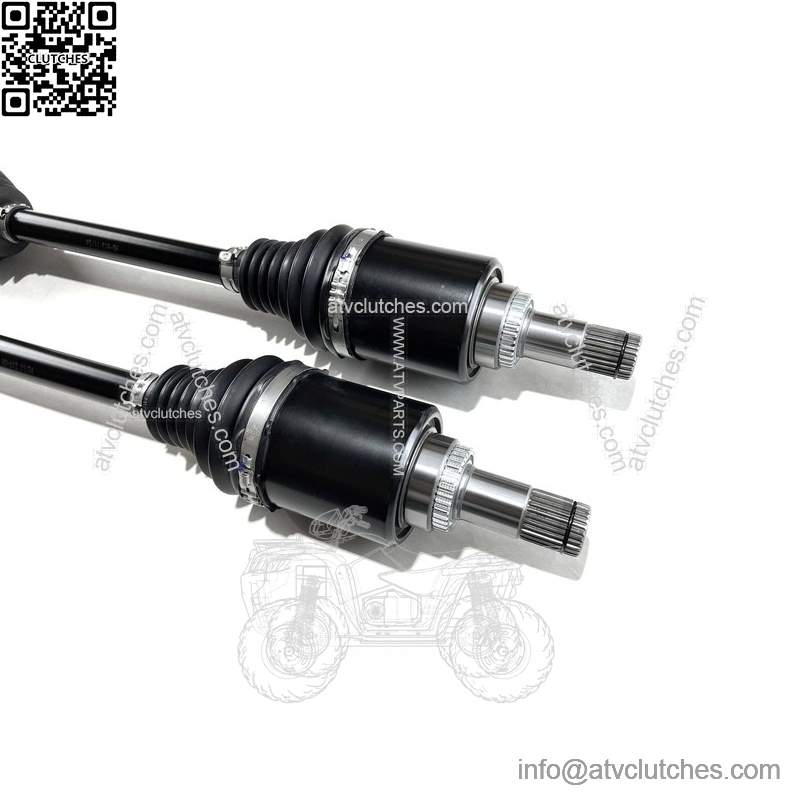

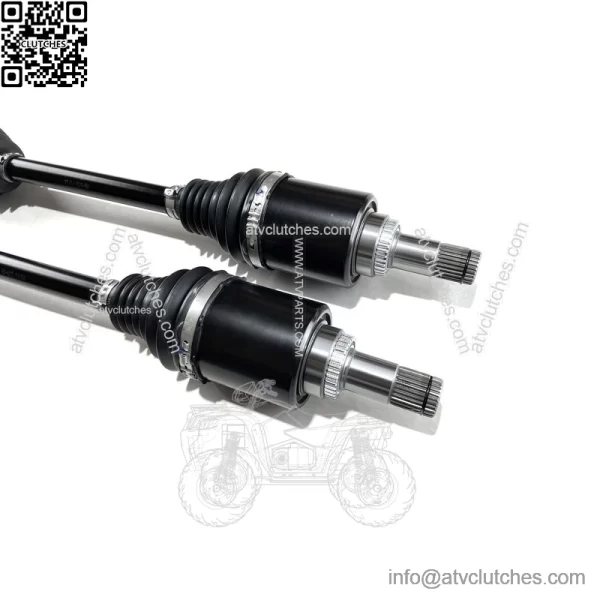

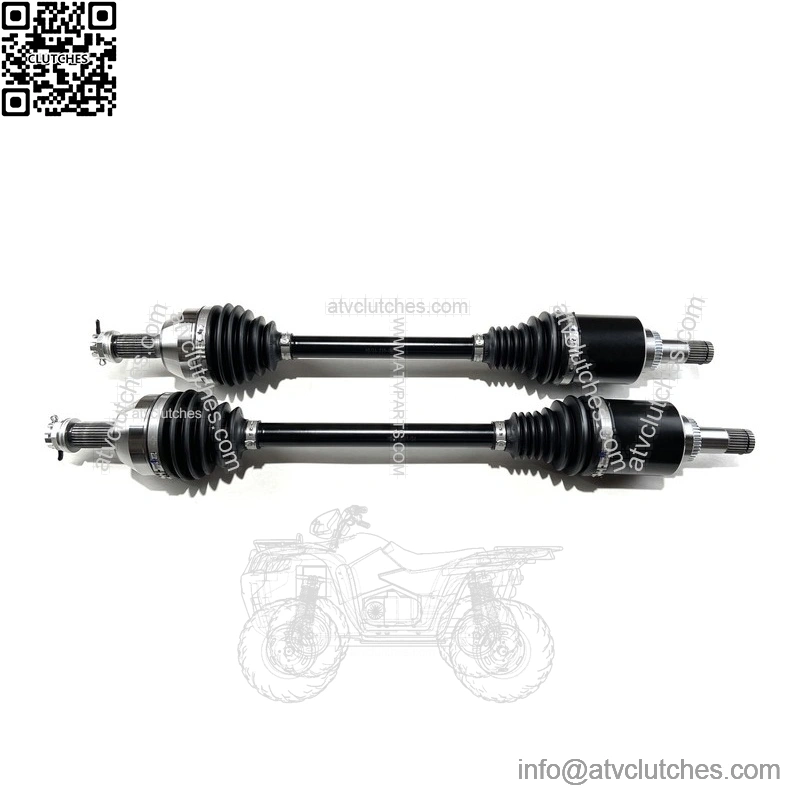

This is a pair of new CV axles for a Honda UTV.

They fit rear, left and right on the following ‘LE’ models:

2017-2021 … ‘Limited Edition’ Pioneer 1000 (SXS1000M3L)

2017-2021 … ‘Limited Edition’ Pioneer 1000-5 (SXS1000M5L)

*made as an OE replacement, and not intended for lifted/ modified vehicles

*please note these are for ‘Limited Edition’ models and will not fit Deluxe or Premium editions

Product features:

Stronger than OEM, 4340 chromoly steel bars

Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

High-performance moly grease for protection against extreme temperatures and to keep vital components lubricated

Compressed overall axle length: Left – 718 mm, Right – 676 mm

Inboard CV joint spline count: 28 (both)

Outboard CV joint spline count: 27/38 (both)

Replaces OEM # (left) 42350-HL4-F41, 42220-HL4-F41, (right) 42250-HL4-F41, 42220-HL4-F41
