Premium Quality Replacement Part
Control Arm Rear Lower Short Pivot Shaft & Bushing Kit
For Polaris Models:
Sportsman X2 550 2011-2013
Control Arm Part Number:
Rear Lower Left 1019410-067 1017864-067
Rear Lower Right 1019411-067

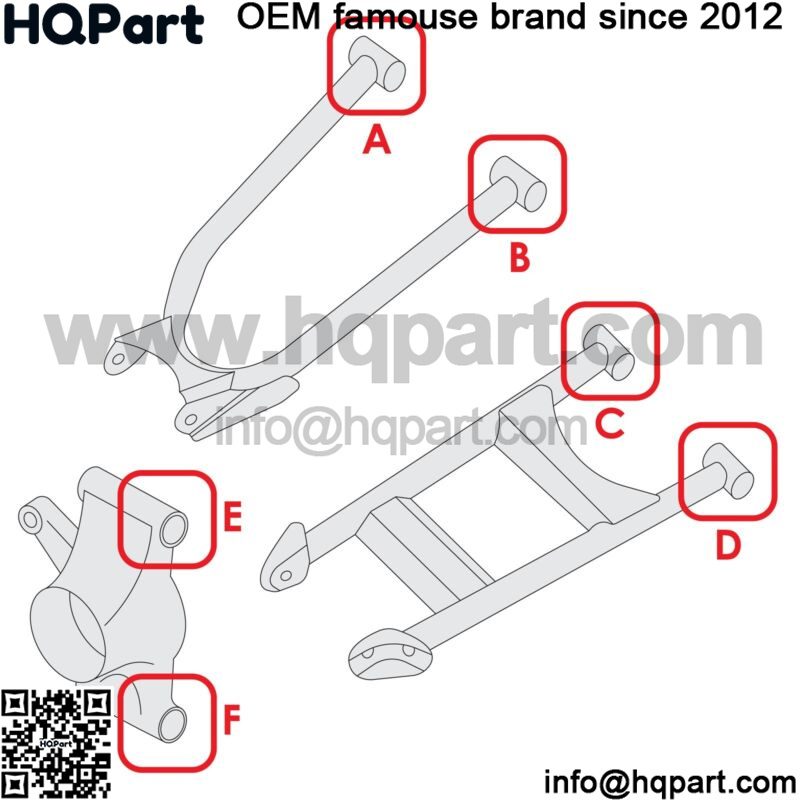

Note: Installs On Location (C) & (D) In Second Picture

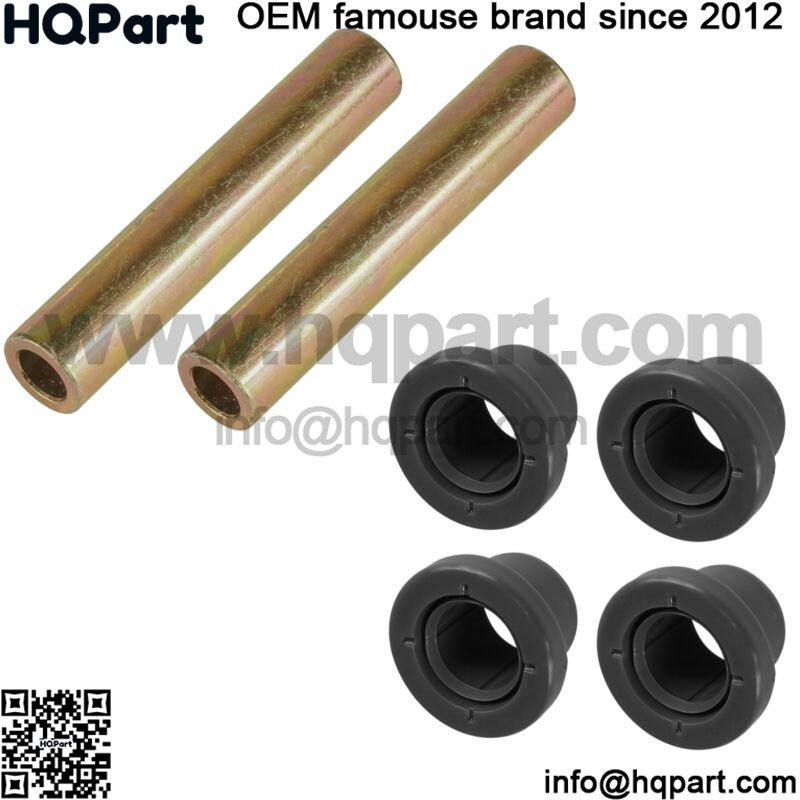

Order Includes:

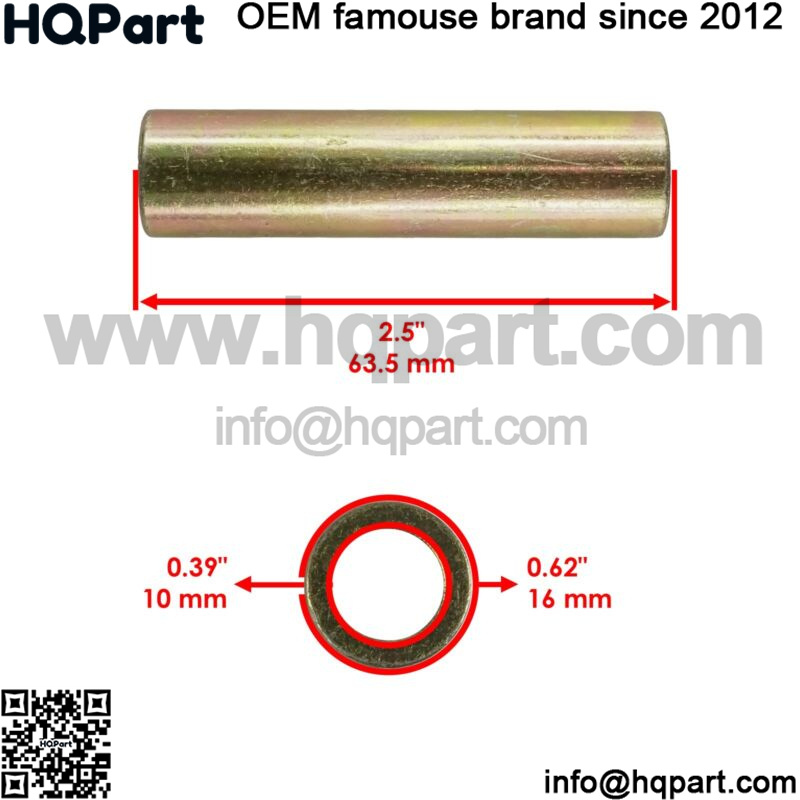

2 x Short Pivot Shaft: 5137346
Length: 2.5″ | 63.5 mm
Inner Diameter: 0.39″ | 10.0 mm
Outer Diameter: 0.62″ | 16.0 mm
4 x Short Bushing: 5436798
Length: 0.80″ | 20.5 mm
Inner Diameter: 0.6″ | 15.5 mm
Outer Diameter: 1.2″ | 31.0 mm
**
