Primary & Secondary Clutch w/ Belt For Can Am Maverick X3 Turbo 17-21 420280461

Premium Quality Replacement Part
Complete Primary Drive Clutch and Pulling Tool and Bolt
Compatible with Can Am Models:
Maverick X3 TURBO R all Turbo R packages including RS, DS, XMR, XRC, MAX 2017-2021
Maverick X3 TURBO RR all packages of 2020-2021 Turbo RR models
Maverick X3 MAX R 2017-2021

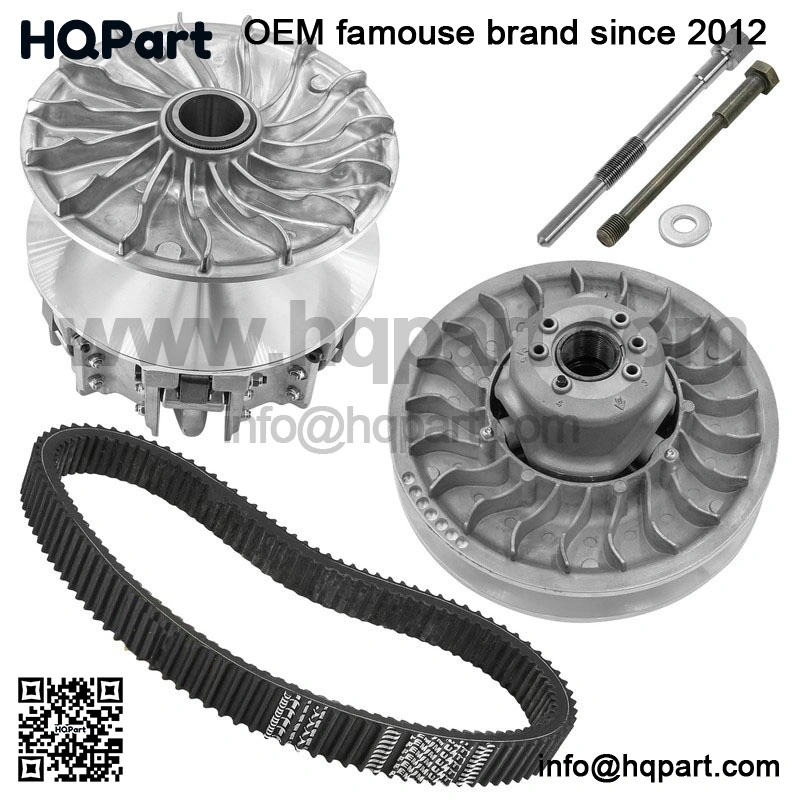

Order Includes:

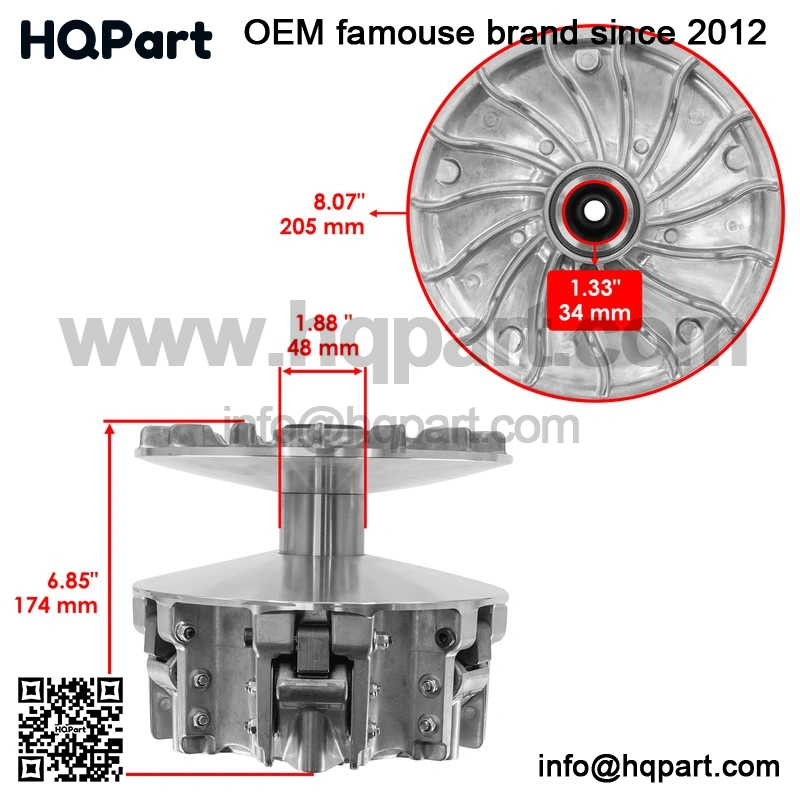

1 x Complete Primary Drive Clutch: 420280461 420280597 420280725 420248661
Height: 174 mm – 6.85 in
Input Shaft Diameter: 34 mm – 1.33 in
Disc Diameter: 205 mm – 8.07 in
1x Puller Tool: 529035746
1 x Primary Clutch Bolt : 420841161, 420245690
Length : 173.8 mm – 6.84 in
Head Diameter : 24.8 mm – 0.97 in
Thread Spec: 5/8-11
1x Belt : 422280652, 420280652
1118 x 37 x 16.5 mm – 44 x 1.45 x 0.64 in
