Premium Quality Replacement Part
Primary Clutch Rebuild Kit w/ Weights for Polaris Scrambler 500 4×4 2001-2009
Great simple kit to rehab your Primary Clutch!
FITS CARBURETED MODELS ONLY

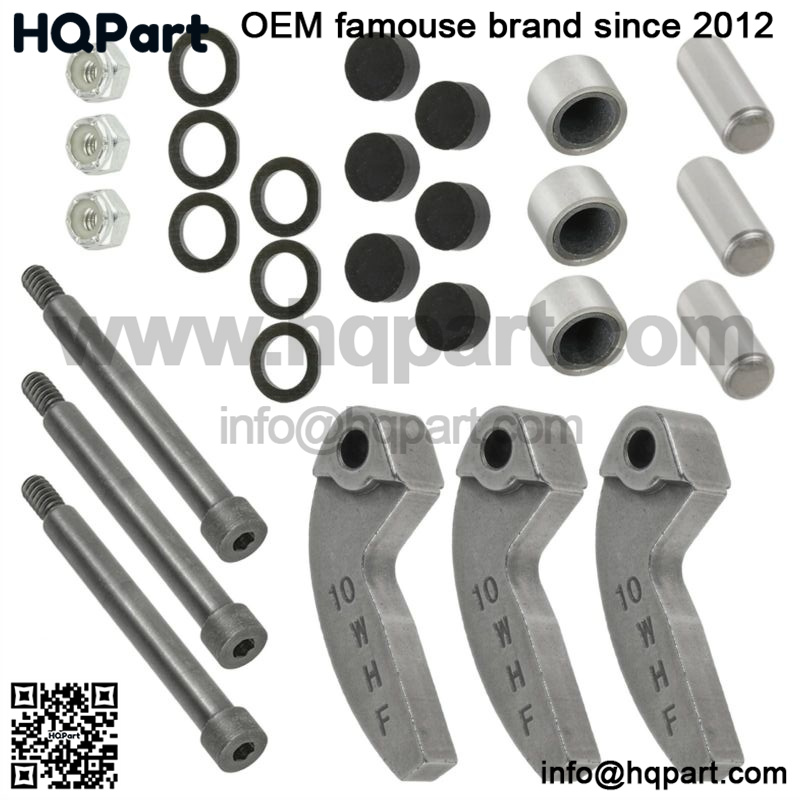

Kit Includes:
6x Clutch Buttons
3x Clutch Bushings
3x Roller Pins
6x Clutch Spider Washer
1x Set of Clutch Weights
3x Shoulder Bolts
3x Lock Nuts
Fits the Following Polaris Models
HAWKEYE 400 HO 2X4 2011-2014
HAWKEYE 400 HO 2X4 HD 2013-2014
Scrambler 500 2×4 1998-2002
Scrambler 500 4×4 2001-2009
Sportsman 400 HO 4×4 2011-2014
Sportsman 450 4×4 2006-2007
Sportsman 500 HO Carburetor 2001-2013
Sportsman Touring 500 HO 2010-2013
Worker 500 2001
Replaces POLARIS Part Numbers
Clutch Weight 10 MHF | 5632281 5630513
Roller Pin | 5020422
Clutch Washer | 5438247
Clutch Button 16.7mm | 5450940
Roller Bushing | 1321457 5020433
Shoulder Bolt | 7512266
Lock Nut | 7541906
Clutch Bushings
14.3mm Outer Diameter
9.5mm Inner Diameter
9mm Width
Clutch Pins
9.5mm Diameter
25mm Length
Buttons
14mm Diameter
6.5mm Height
Spider Washer
14.4mm Outer Diameter
9.6mm Inner Diameter
1.5mm Thick
