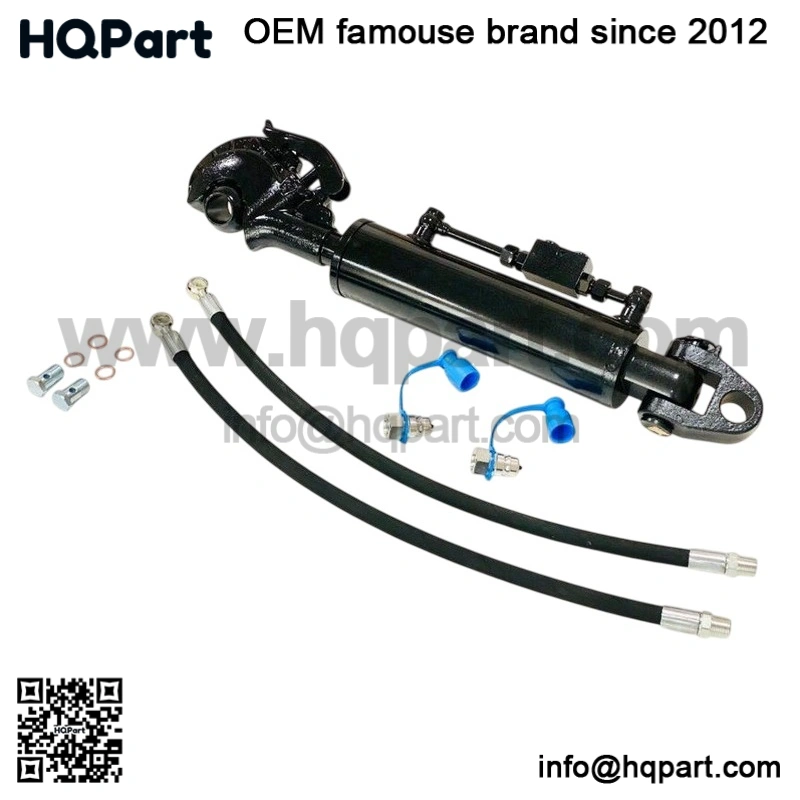

Hydraulic Top Link Cat. 3 with 210mm Stroke, Ball Joint & Hook, Heavy Duty

Furnishing:
High quality and workmanship and painted
Incl. Locking block
Top link cat. 3
2x hydraulic connection
Delivery is completely assembled
Technical specifications:
Hydraulic connection: 3/8 ”
E: 635-845 mm
A: 80 mm
W: 92 mm
C: 40 mm
M: 85×51 mm
L: 32.4 mm
F: 50 mm
D: 210 mm (stroke)
Thrust: 11700 to
Pulling force: 8770 to
Weight about 20.10 kg
+
2 x hydraulic hose with plug and dust cover
Technical specifications:
Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union
Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
Operating pressure: 180 bar
Length: 75 cm
