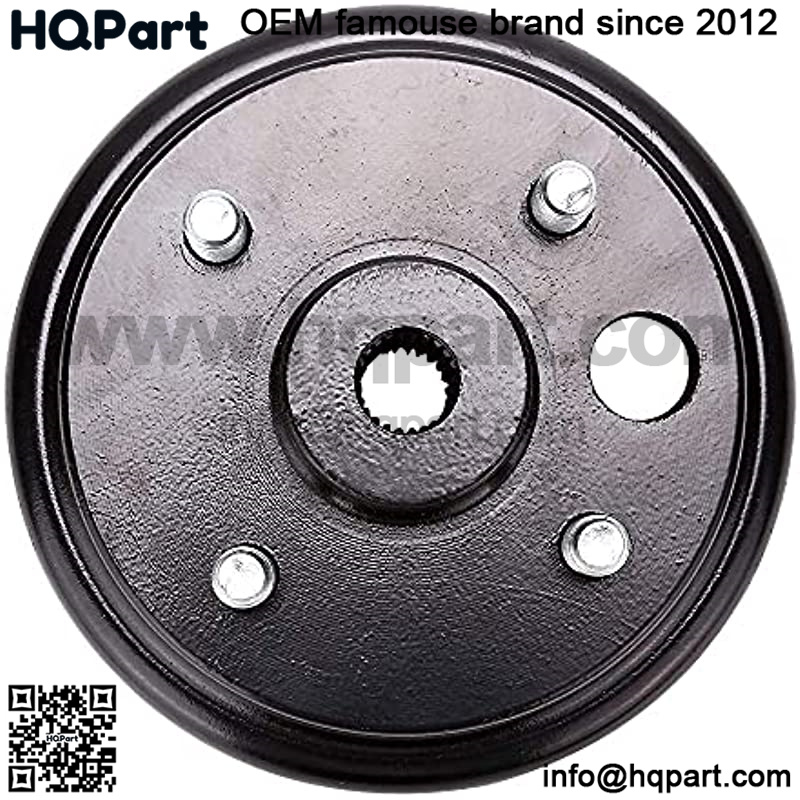

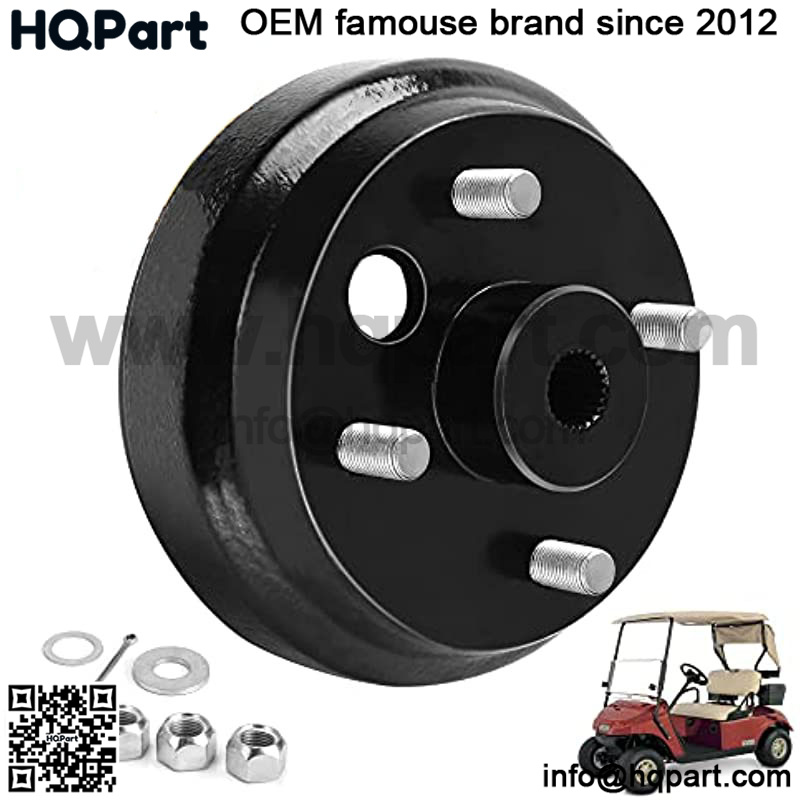

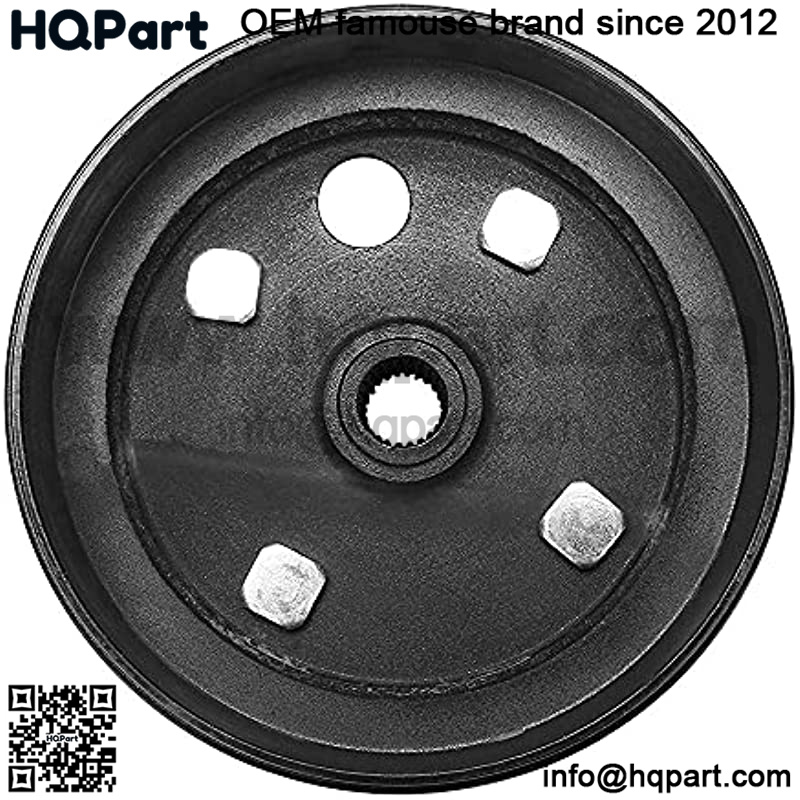

Golf Cart Brake Drum Hub Assembly for EZGO TXT PDS 1982-up Electric & 1982-1993 2-Cycle Gas, Replace OEM# 19186G1P

SKU ZDQ.10182 Category Tag

Golf Cart Brake Drum Hub Assembly for EZGO TXT 1982-up Electric Vehicles and 1982-1993 2-Cycle Gas Vehicles.

This brake drum/hub assembly replaces Part# 19186G1P.asy Installation & 1 year Warranty.

There is a 3/4-Inch center hole with a 24-tooth star spline The hub is held in place by a castellated nut (5/8-Inch x 18tpi) and a thick (118-Inch) flat washer.

This Brake hub/drum is a replacement for the earlier hub & drum and has the star spline instead of the straight key.And this is for the brake drum only. When replacing this brake drum, check the Hub assembly as well.

The drum is held in place by a castellated nut and a thick flat washer. This hub/drum will NOT operate with a keyed axle/hub interface.Warm tips: Hub spline and Rear Axle Shaft Spline should be matched tight. When one of them is wear out, both of them should be replaced at the same time. Other wise the hub spline will strip soon.
Golf Cart Brake Drum Hub Assembly
There is a 3/4-Inch center hole with a 24-tooth star spline The hub is held in place by a castellated nut (5/8-Inch x 18tpi) and a thick (118-Inch) flat washer.This Brake hub/drum is a replacement for the earlier hub & drum and has the star spline instead of the straight key.And this is for the brake drum only. When replacing this brake drum, check the Hub assembly as well.The drum is held in place by a castellated nut and a thick flat washer. This hub/drum will NOT operate with a keyed axle/hub interface.Warm tips: Hub spline and Rear Axle Shaft Spline should be matched tight. When one of them is wear out, both of them should be replaced at the same time. Other wise the hub spline will strip soon.
FIT FOR
EZGO TXT 1982-up Electric Vehicles
1982-1993 2-Cycle Gas Vehicles
Replaces Part# 19186G1
Heat Resistance
Rotors come with Ventilation slot are more conducive to the fast cooling of the brakes and the removal of excess moisture.
High Quality Material
Golf Cart Brake Drum Hub Assemblyuses high-quality materials that effectively prevent visible wheel dust and corrosion.
Accurate Locating Hole
Machined just as the professional O.E.M. manufacturer. Perfectly installed on your vehicle without any modifications.
Low Noise
Brake pad and brake rotor fit perfectly to prevent the noise by high standard noise-free tests.
