Premium Quality Replacement Part
Front Upper Inner A-Arm Bushing Kit for Polaris RZR XP TURBO 2017-2021 NEWFor Models:
RZR XP TURBO 2017-2021
RZR XP TURBO 2017
A-Arm Part Number:
Front Upper Left 1021478-293 1021478-385 1021478-689
Front Upper Right 1021479-293 1021479-385 1021479-689
Front Lower Left 1021480-293 1021480-385 1021480-689
Front Lower Right 1021481-293 1021481-385 1021481-689
RZR XP TURBO 2018
Front Upper Left 1023526-293 1023526-385 1023526-446 1023526-630
Front Upper Right 1023527-630 1023527-293 1023527-385 1023527-446 1023527-458
Front Lower Left 1021480-293 1021480-385 1021480-446 1021480-458 1021480-630
Front Lower Right 1021481-293 1021481-385 1021481-446 1021481-458 1021481-630
RZR XP TURBO 2019
Front Upper Left 1023526-293 1023526-737 1023526-750 1023526-751
Front Upper Right 1023527-293 1023527-737 1023527-750 1023527-751
Front Lower Left 1021480-293 1021480-737 1021480-750 1021480-751
Front Lower Right 1021481-293 1021481-737 1021481-750 1021481-751
RZR XP TURBO 2020-2021
Front Upper Left 1025143-293 1025143-458
Front Upper Right 1025144-293 1025144-458
Front Lower Left 1025139-293 1025139-458

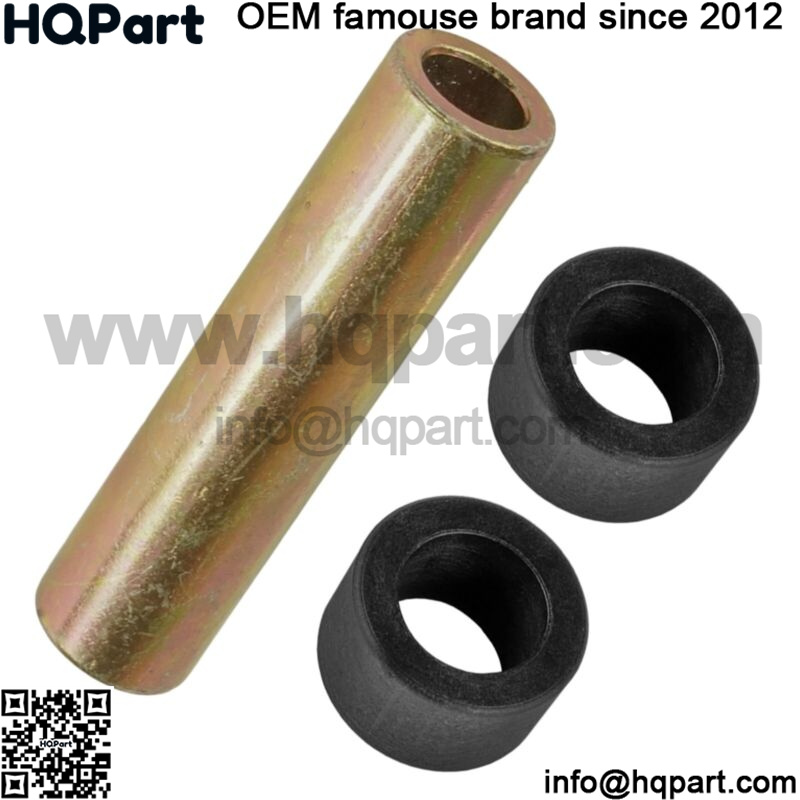

Front Lower Right 1025140-293 1025140-458Order Includes:
1 x Pivot Shaft | 5139966
2 x Bushing | 5452233
Dimensions & Measurements :

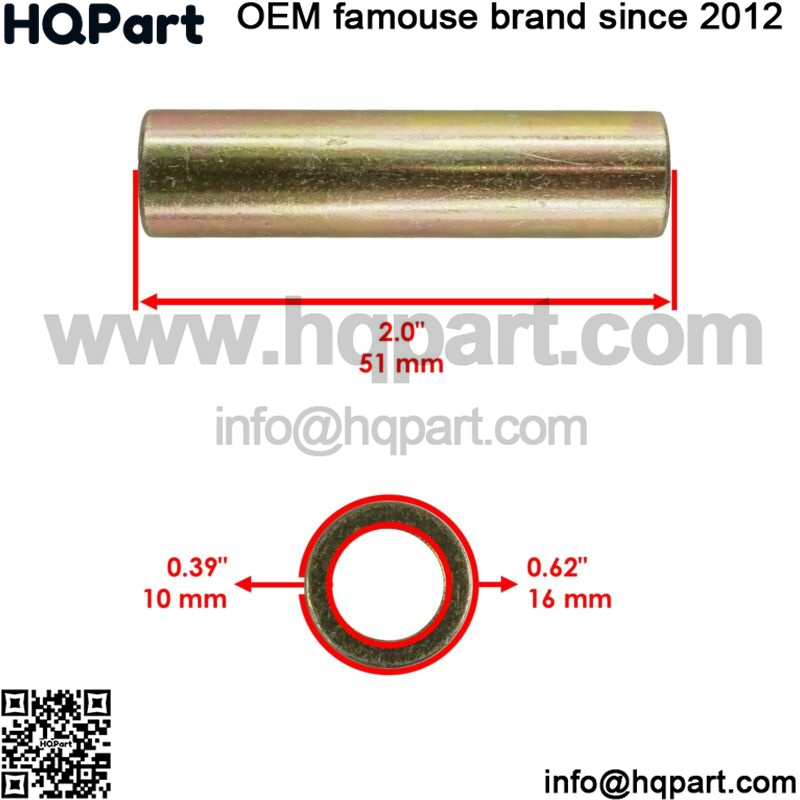

Pivot Shaft:
Length: 51mm | 2.0″
Inner Diameter: 10mm | 0.39″
Outer Diameter: 16mm | 0.62″

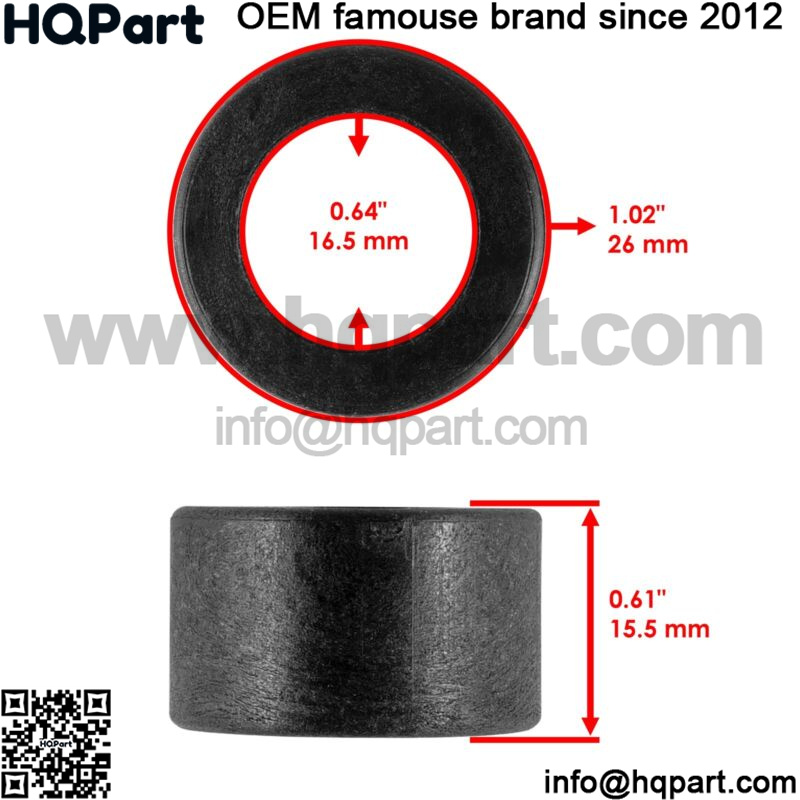

Bushing:
Outer Diameter: 26mm | 1.02″
Inner Diameter: 16.5mm | 0.64″
Height: 15.5mm | 0.61″
**
