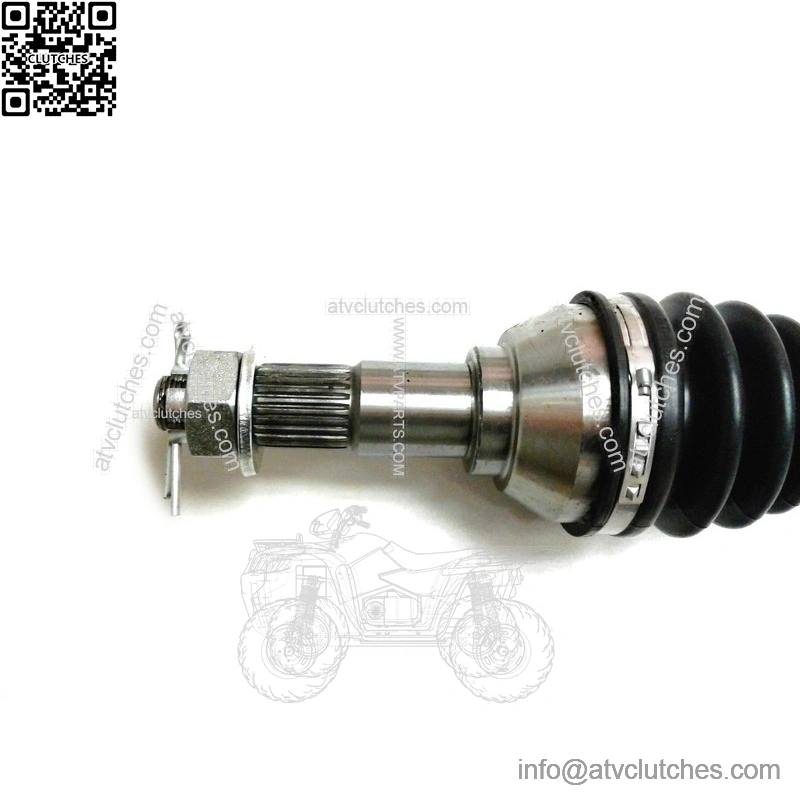

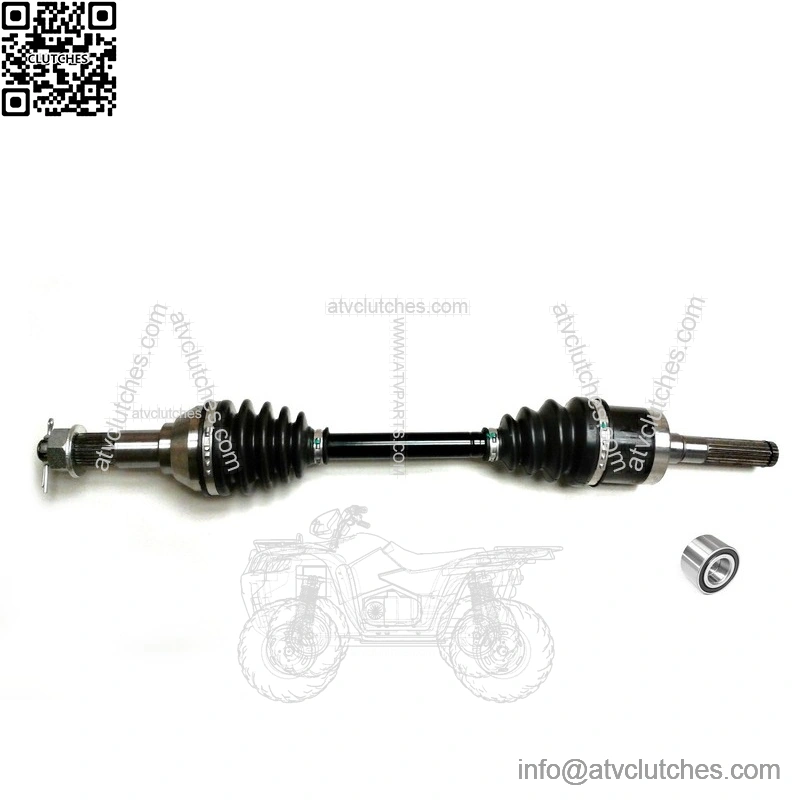

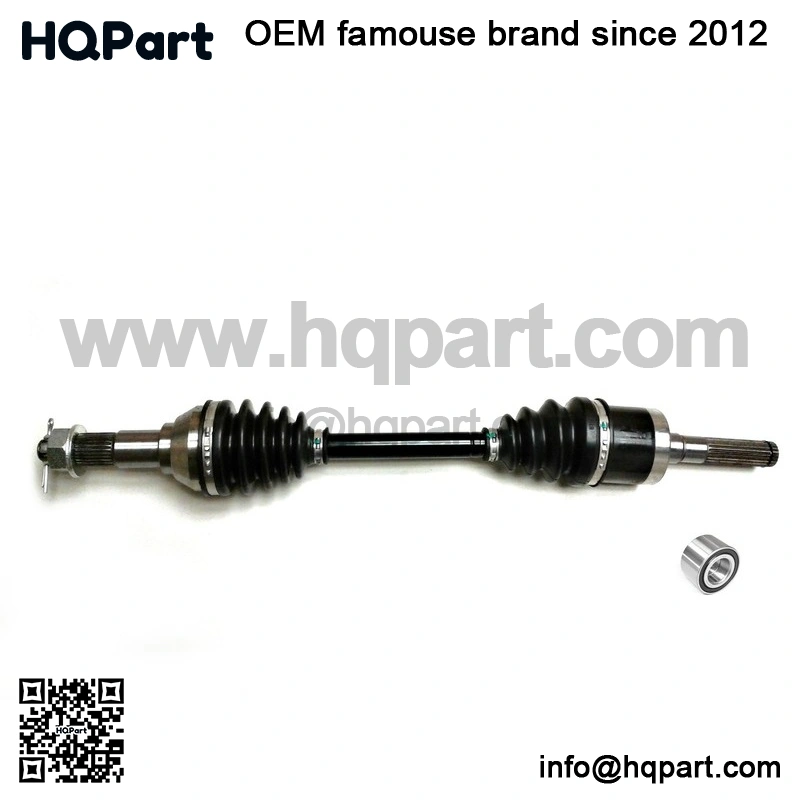

This is a new CV axle with wheel bearing for a Can-Am ATV.
They fit FRONT, RIGHT on the following models:
2015-2023 Outlander 450/MAX 450
2015 Outlander 500/MAX 500
2016-2023 570/ MAX 570 (excluding XMR)
2015 Renegade 500
2016-2018 Renegade 570 (excluding XMR)
*Made as an OE replacement, and is not intended for lifted/ modified vehicles
Product features:
Stronger than OEM, 4340 chromoly steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
High speed bearing manufactured for long life
Double lip seal made to keep grease in and dirt out
Inboard CV joint spline count: 21
Outboard CV joint spline count: 26
Compressed overall axle length: 562 mm
Replaces OEM # (axle) 705401428, 705401946, (bearing) 293350118, 293350040, 705400088
