Specification:

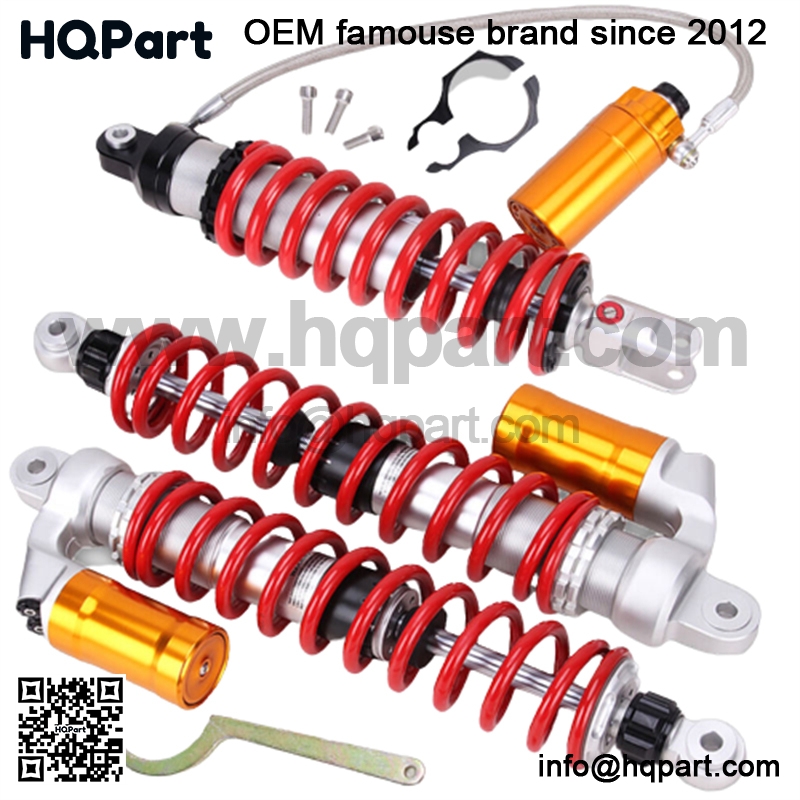

Item Type 1: Rear Shocks Suspension Absorbers
Material: Solid steel and aluminium alloy
Color: Red, Gold, Silver
Eyelet to Eyelet Length: 395mm
Eye Diameter: 10mm
Spring thickness: 11mm
Max Load:100kg-300kg
Item Type 2: FrontAirShocksSuspensionAbsorbers
Material: Solid steel and aluminium alloy
Color: Red, Gold, Silver
Eyelet to Eyelet Length: 410mm
Eye Diameter: 10mm or 10.3mm
Spring thickness: 8.2mm
Spring Width(approx): 67mm
Max Load:100kg-300kg
Size: Please check the attached picture of other size detail and the length is the eyelet to eyelet length.
Features:
New style modified design, and 4 colors integrated: red, gold, silver and little bit black match, which will be great for decoration on the models.
Beefed up upper and lower eyelets and caps made of aircraft grade aluminum
Heavy duty thicker gauge main springs increases the max loading to 1000lbs/pair
High quality reservoir oil seals
Pre-filled with high pressure nitrogen
Mechanical and Nitro adjustable
Constant rate springs can cushion vibrations to the models body when driving on the uneven road.
Air and oil dampening
Fitment:
For Honda Sportrax TRX400EX
(All Years)
ForHonda TRX450R
(All Years)
ForHonda TRX450ER
(All Years)
For YamahaYFZ4502010-2013
For Yamaha Raptor 700R2009-2017
For Yamaha Raptor 7002006-2017
For Yamaha Raptor Raptor 660R2001-2005
For Suzuki Z400 QuadSport LTZ4002003-2014
Note:
Please check the size measurement chart carefully before purchasing
Please allow 1-2mm for variance due to manual measurement
Installation instruction is not included
If you have questions, please feel free to contact us, thank you!
Package Included:
Complete Set of 1 Pair (Left & Right )Air Front Shocks Absorbers
1 * Rear Air Shocks Absorbers
With accessories
