Premium Quality Replacement Part
Front or Rear Left & Right Control Arm & Knuckle Bolt M10 x 1
Compatible with Polaris Models:
Front Control Arm
Ranger 700 4×4 EFI LE 2007
Sportsman 570 Touring Premium EPS 2018-2023
Sportsman SP 570 Touring EPS 2016-2020
Rear Control Arm or Knuckle
Sportsman 335 1999-2000
Sportsman 400 2001-2005
Sportsman 400 HO 4×4 2011-2012
Sportsman 450 2006-2007
Sportsman 450 HO 2×4 2016-2017
Sportsman 450 HO 4×4 2016-2024
Sportsman 500 RSE DUSE HO 1996-2010
Sportsman 570 EFI 4×4 6×6 2016-2024
Sportsman Touring 570 EPS 2018-2023
Sportsman X2 570 EPS 2016-2023
Sportsman SP 570 Eps Touring 2016-2020
Sportsman 600 2003-2005
Sportsman 700 2002-2008
Sportsman 800 4×4 6×6 2005-2013
Sportsman MV7 2005
Xplorer 500 1997
Diesel 455 1999-2001
Worker 335 1999
Worker 500 1999 2001
Ranger 500 2×4 4×4 2006-2008
Ranger XP 700 4×4 2006
Ranger 700 4×4 EFI LE 2007-2008
Ranger Crew 700 2008
Hawkeye 400 HO 2×4 2011-2013

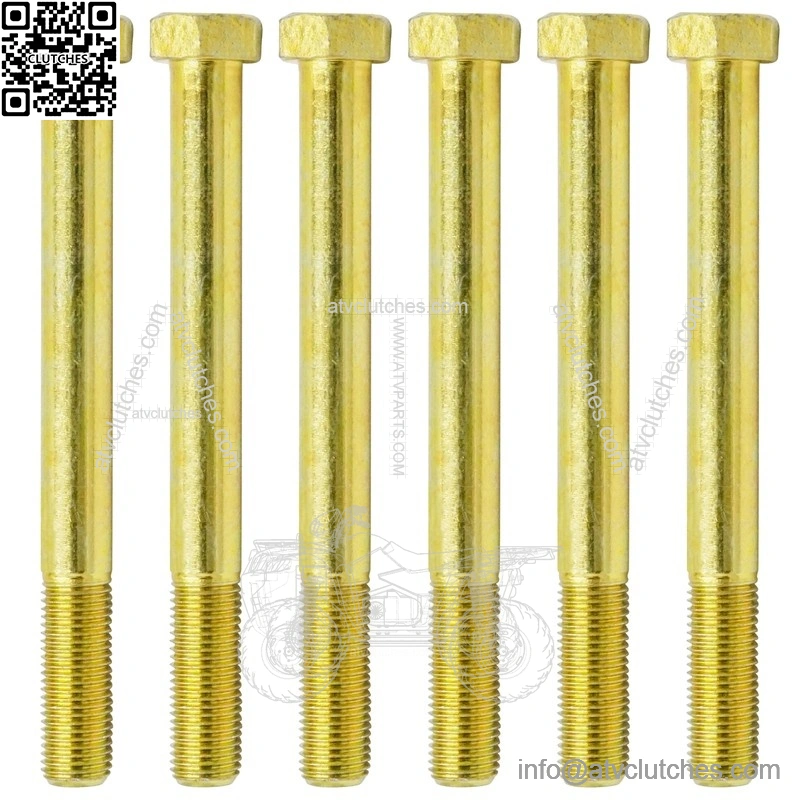

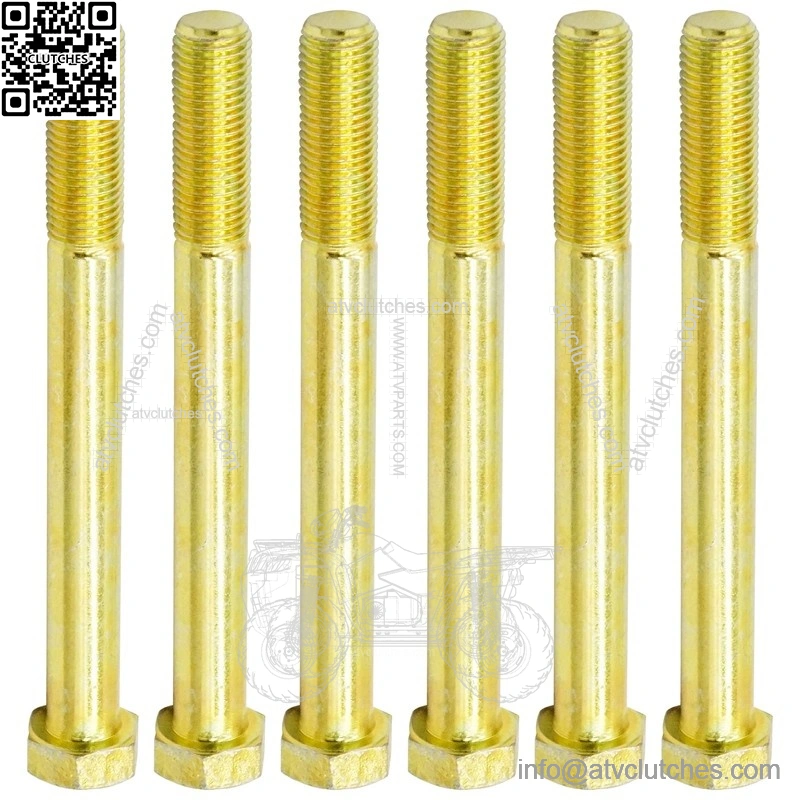

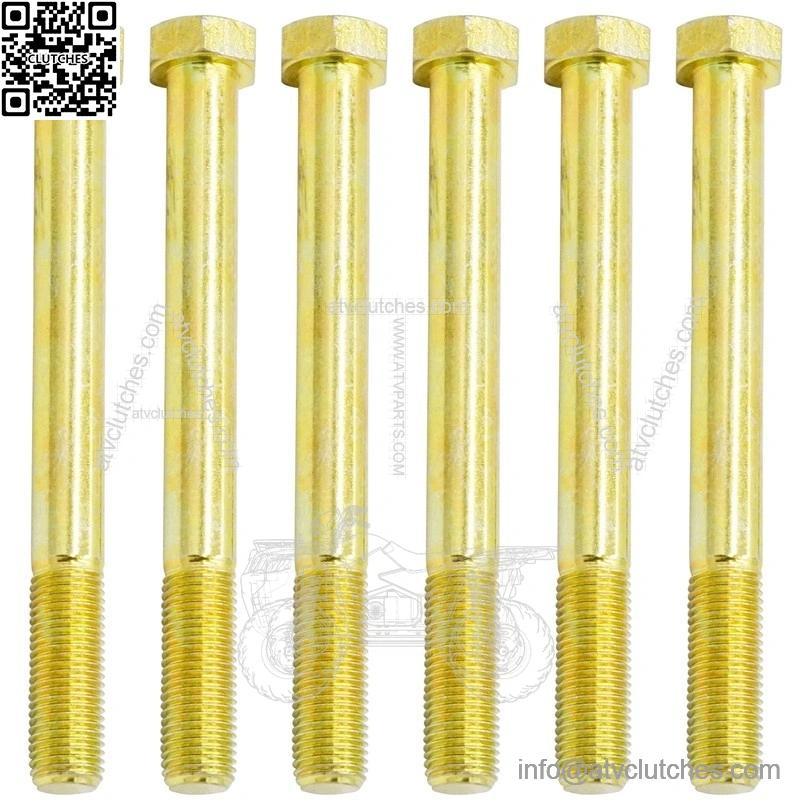

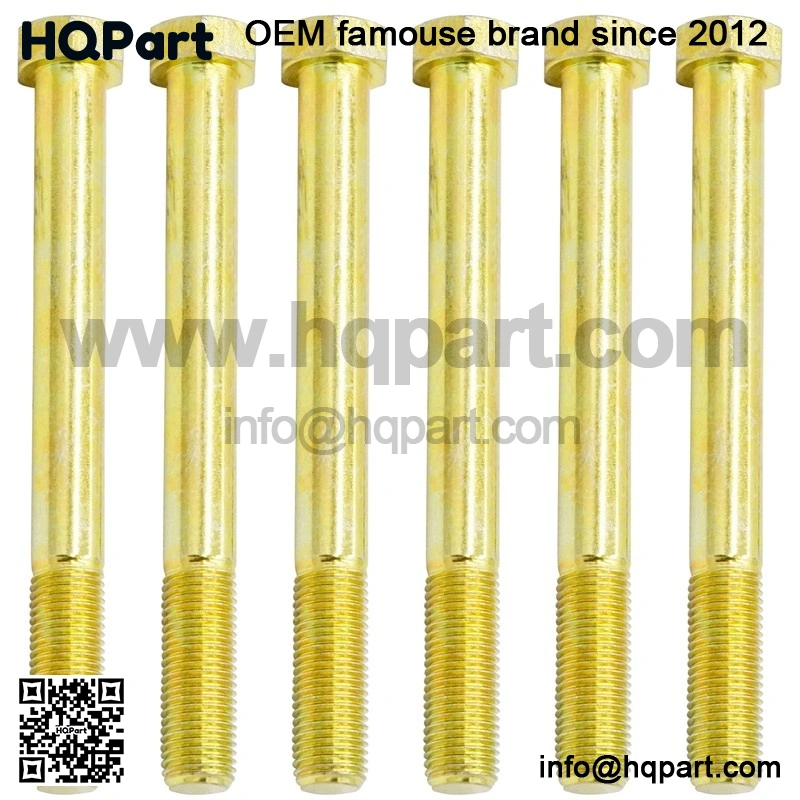

Order Includes:
6 x Bolt: 7515472

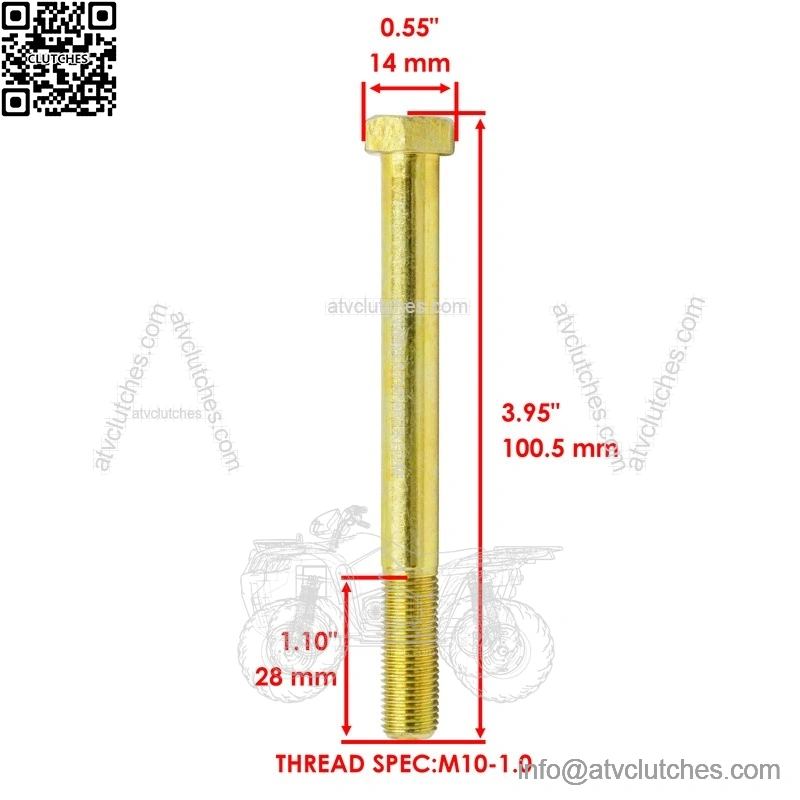

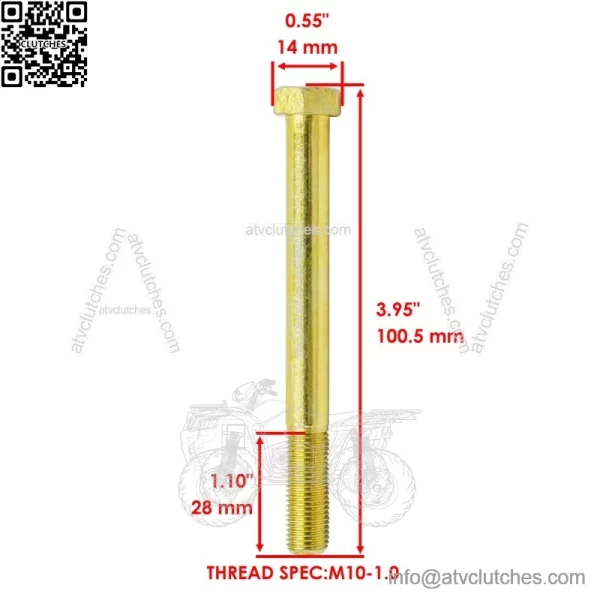

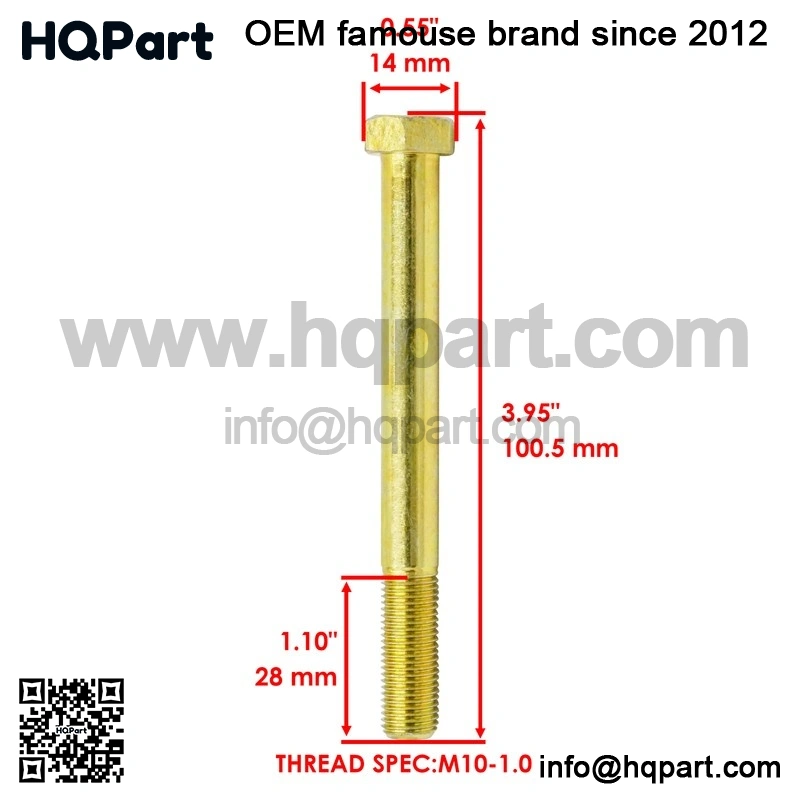

Length: 100.5 mm – 3.95 in
Stud Length: 28mm – 1.1 in
Head Diameter: 14 mm – 0.55 in
Thread Size: M10-1.0
Weight: 4.2oz
Note: Installs On Location (A) (B) (E) In Second Picture
Front Upper A-Arm Part Number:
Left: 1023242-458, 1020527-067
Right: 1023243-458, 1020528-067
Front Lower A-Arm Part Number:
Left: 1023304-458, 1020987-458
Right: 1023305-458, 1020988-458
Rear Upper Control Arm Part Number:
Left: 1023359-458, 1025238-458, 1017747-067
1017747-458, 1017747-067, 1040586-067, 1040443-067
1040730-067, 1013766-067, 1014320-067, 1014320-293
Right: 1023360-458, 1025239-458, 1017748-067
1017748-458, 1017748-067, 1040587-067, 1040444-067
1040731-067, 1013767-067, 1014321-067, 1014321-293
Rear Lower Control Arm Part Number:
Left: 1023570-458, 1025240-458, 1015888-067, 1015888-458
1015888-067, 1040445-067, 1012717-067, 1013220-067
1015888-067, 1014174-293, 1015117-293, 1015888-293
Right: 1023571-458, 1025241-458, 1015889-067, 1015889-458
1015889-067, 1040446-067, 1012718-067, 1013221-067
1015889-067, 1014175-293, 1015118-293, 1015889-293
Knuckle Part Number:
Left: 5135563, 5131738, 5134206, 5133663 5134206
Right: 5135563, 5131738, 5134206, 5133664 5134206
