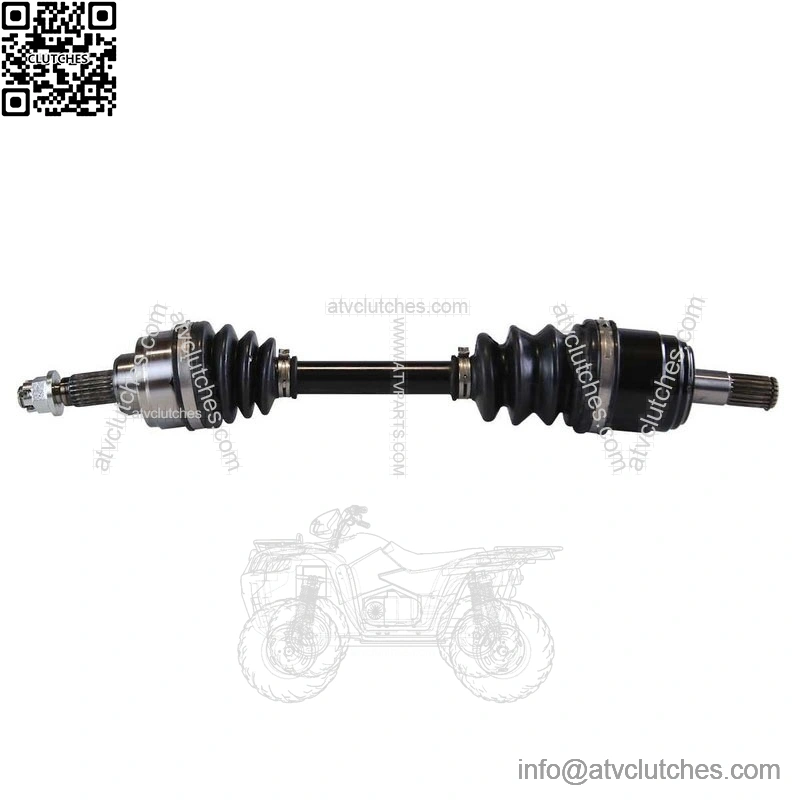

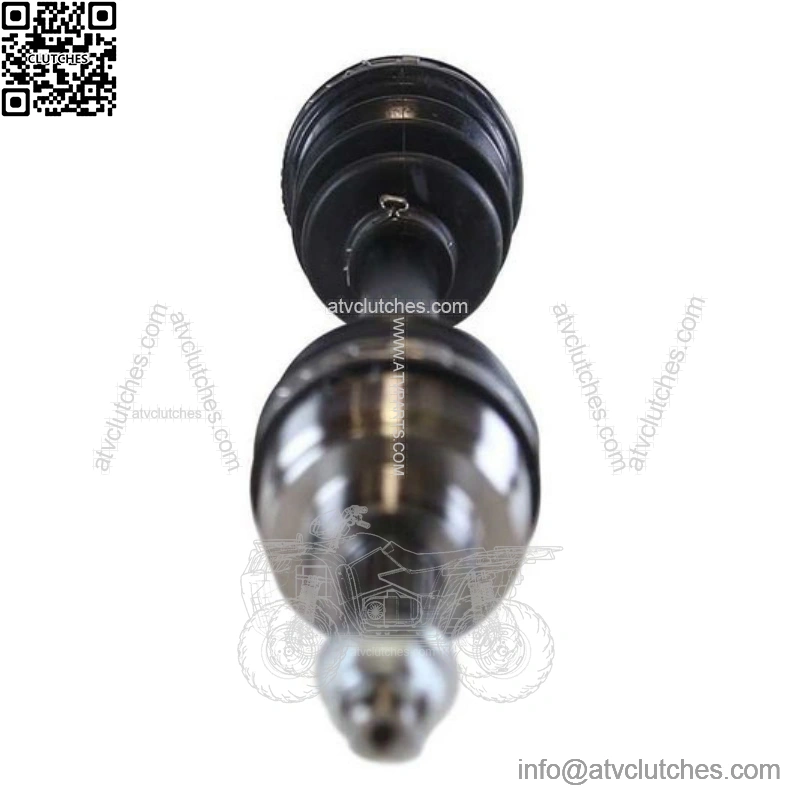

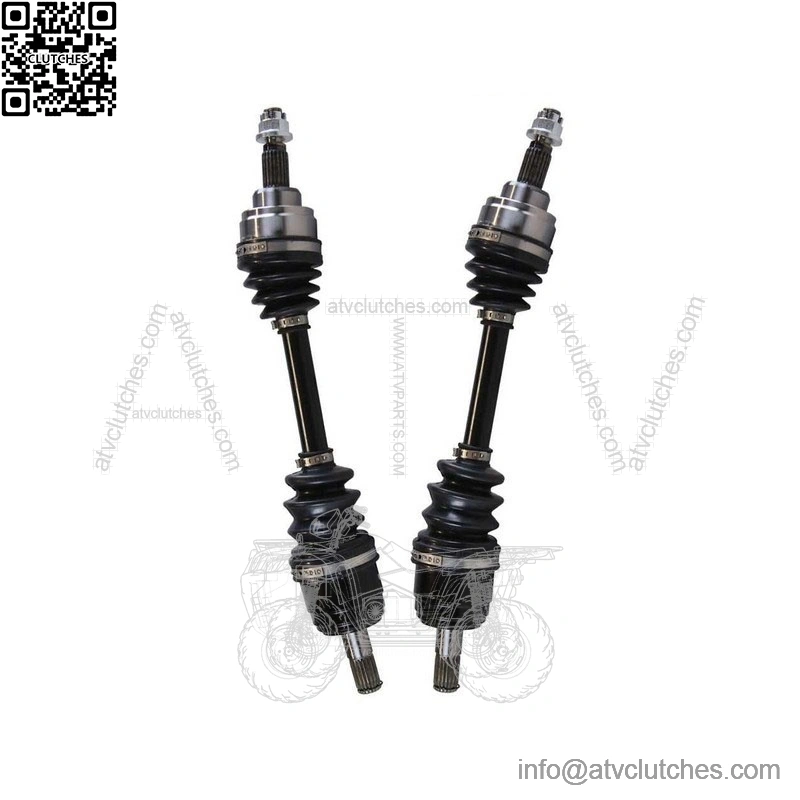

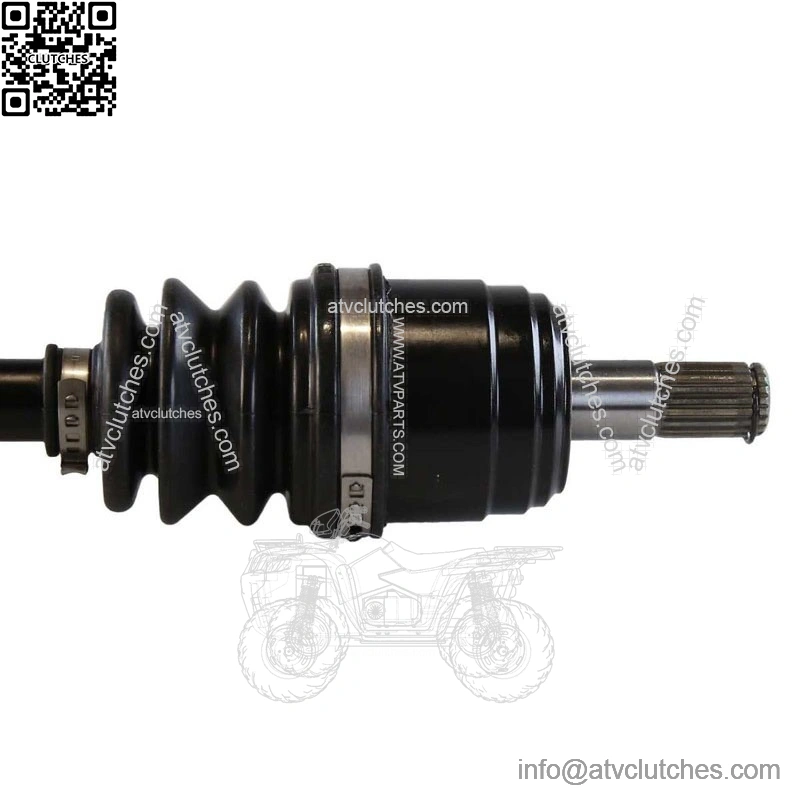

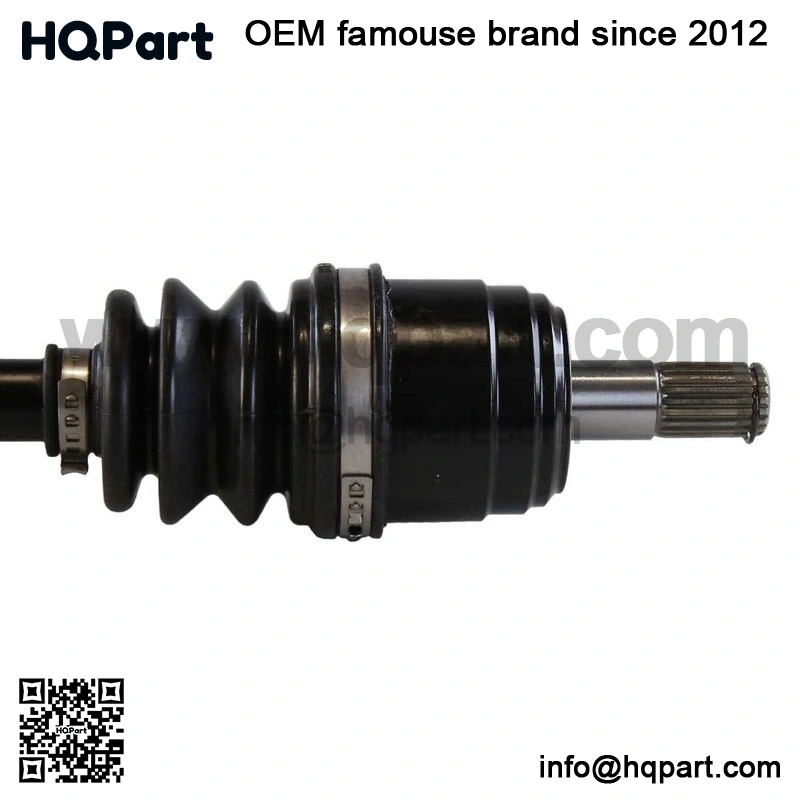

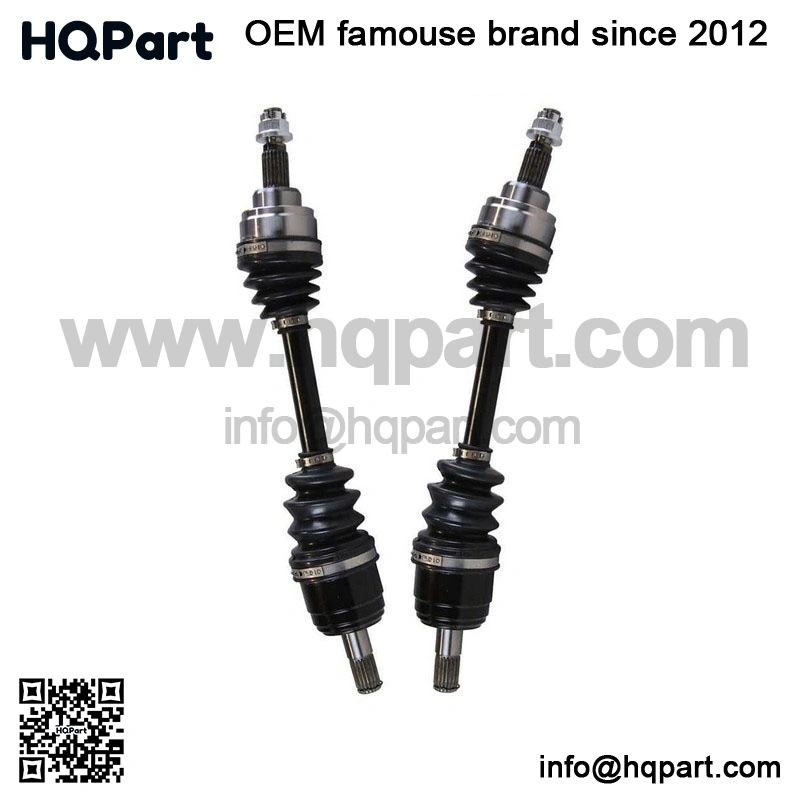

Front CV Axle Shafts Pair 2 for 2000-2005 Honda TRX350FM FourTrax Rancher 4X4

Weight 13.7 lbs
Height 4.3 in
Width 7.7 in
Length 25.6 in
ABS Ring Included No
Axle Boot Material Neoprene
Axle Nut Hex Size 0.87 in / 22 mm
Axle Nut Included Yes
Axle Nut Locking Type Split Pin
Axle Nut Thread Size M16 x 1.5
Boot Color Black
Cotter Pin Included Yes
Drive Type 4X4
Fitment Type Direct Replacement
Grease Type Molybdenum Disulfide Lithium Grease
Hardware Included No
Hazardous Material No
Inboard Clip Included Snap Ring
Input Shaft Connection Style Spline
Number of Inboard Splines 20 Teeth
Number of Outboard Splines 21 Teeth
Output Shaft Connection Style Spline
Overall Compressed Length 17.91 in / 455 mm
Shaft Material 40CR
Surface Finish Black Coating
