Premium Quality Replacement Part
Front A-Arm Lower Upper Left Right Bushing Kit
For Polaris Models:
Sportsman X2 550 2011-2013
A-Arm Part Number:
Front Upper Left 1025617-067 1017260-067
Front Upper Right 1025618-067 1018196-067
Front Lower Left 1019810-067 1018193-067
Front Lower Right 1019811-067 1018194-067
Note: Installs On Location (A) (B) (C) (D) In Second Picture
Order Includes:

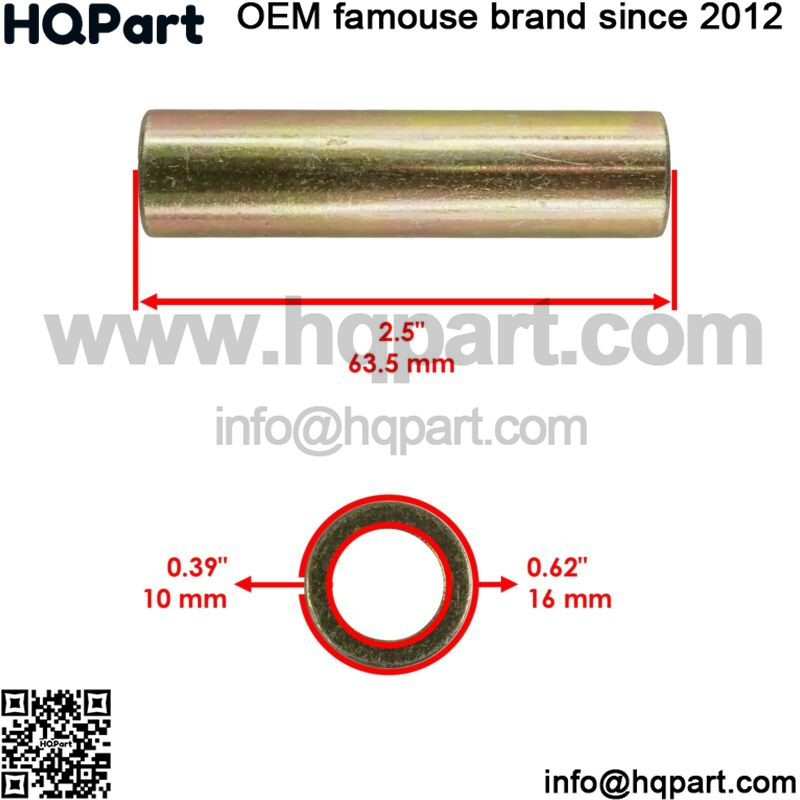

8 x Short Pivot Shaft: 5137346
Length: 2.5″ | 63.5 mm
Inner Diameter: 0.39″ | 10.0 mm
Outer Diameter: 0.62″ | 16.0 mm
16 x Short Bushing: 5436798
Length: 0.80″ | 20.5 mm
Inner Diameter: 0.6″ | 15.5 mm
Outer Diameter: 1.2″ | 31.0 mm
**
