Front A Arm Bushing Kit For Polaris Sportsman XP X2 550 / XP 850 Touring 2010

Premium Quality Replacement Part
Front Upper or Lower Left or Right Bushing Kit
Compatible with Polaris Models:
Sportsman 550 EPS Touring 2010
Sportsman XP 550 EPS 2010
Sportsman X2 550 2010
Sportsman 850 EPS Touring 2010
Sportsman XP 850 EPS 2010

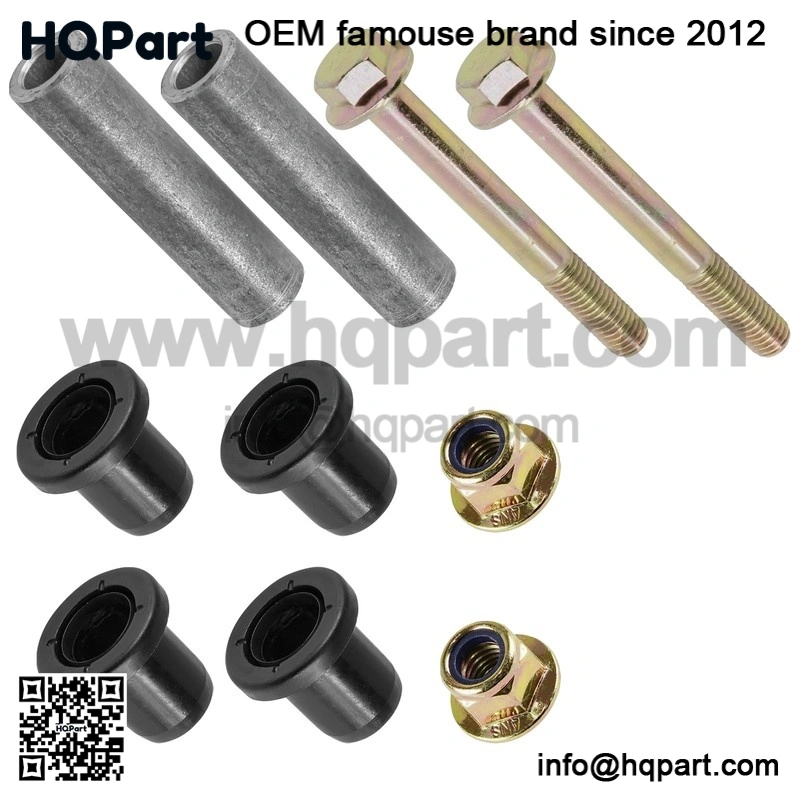

Order Includes:

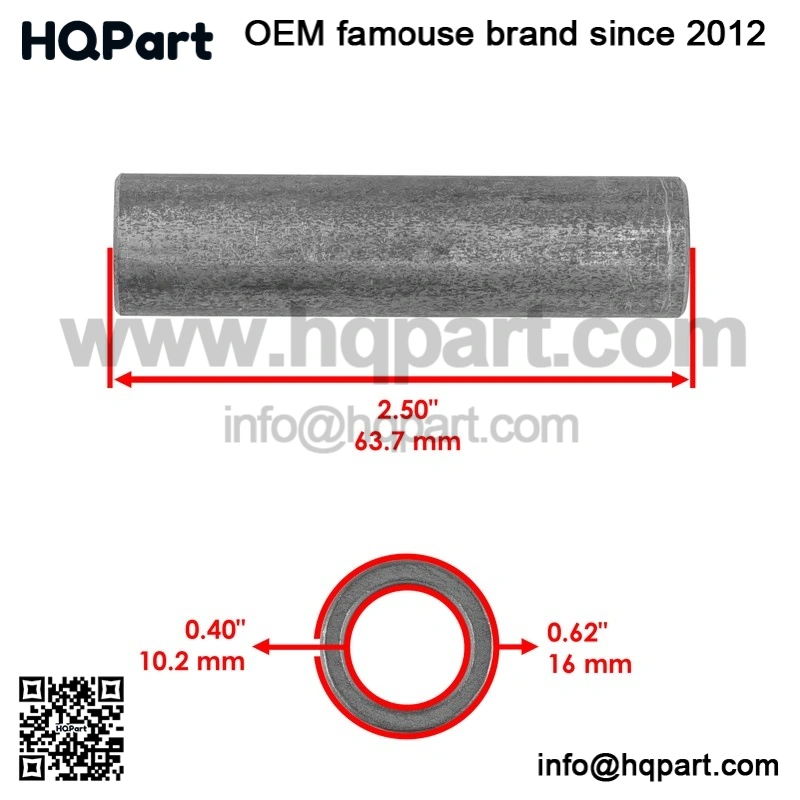

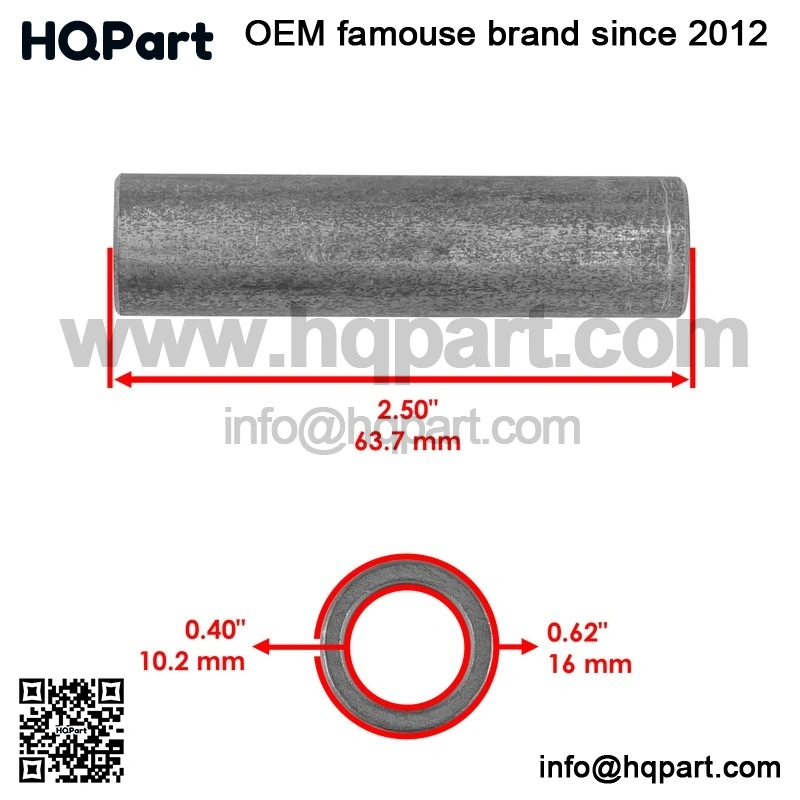

2 x Pivot Shaft: 5135270
Length: 63 7 mm – 2 5 in
Inner Diameter: 10 2 mm – 0.4 in
Outer Diameter: 16mm – 0.62 in
Material: Steel

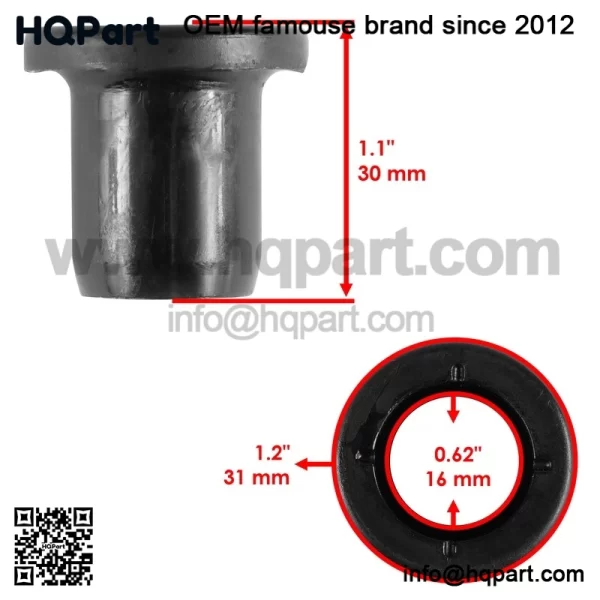

4 x Bushing: 5439874, 5436832, 5436505
Length: 30mm – 1 1 in
Inner Diameter: 16mm – 0 62 in
Outer Diameter: 31mm – 1 2 in
Material: Plastic

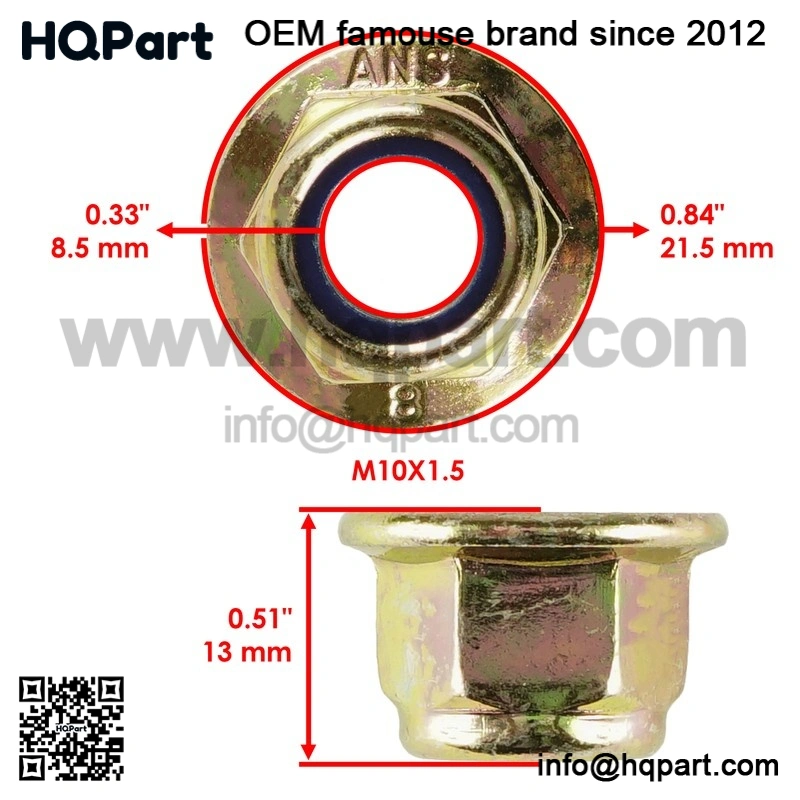

2 x Nut: 7547313
Width: 13 mm – 0 51 in
Inner Diameter: 8.5 mm – 0 33 in
Outer Diameter: 21 5 mm – 0 84 in
Thread Size: M10x1.5
Material: Iron
2 x Bolt: 7518466
Length: 94mm – 3.7 in
Stud Length: 29mm – 1.14 in
Head Diameter: 15 mm – 0.59 in
Thread Size: M10x1.5
Material: Iron
Note: Installs On Location (A) & (B) or (C) & (D) In Second Picture
Front Upper A Arm Part Number:
Left: 1025617-067, 1017260-067
Right: 1025618-067, 1017261-067
Front Lower A Arm Part Number:
Left: 1019810-067, 1017156-067
Right 1019811-067, 1017157-067
