Specification:
Item Type:Cylinder Piston Gasket Top End Rebuild Kit
Condition: Aftermarket 100% Brand New and High Quality
Quantity: Sold in unit
Piston Material: Aluminum
Actual Displacement: 386 cc
Color: Gray(Black also available, if you want,please buy from the store or contact us)
Dimension:
Bore Size: STD 83 mm
Piston diameter: 82.9 mm
Piston height: 57.5 mm
Piston pin diameter: 19 mm
Piston pin height: 58 mm
Features:

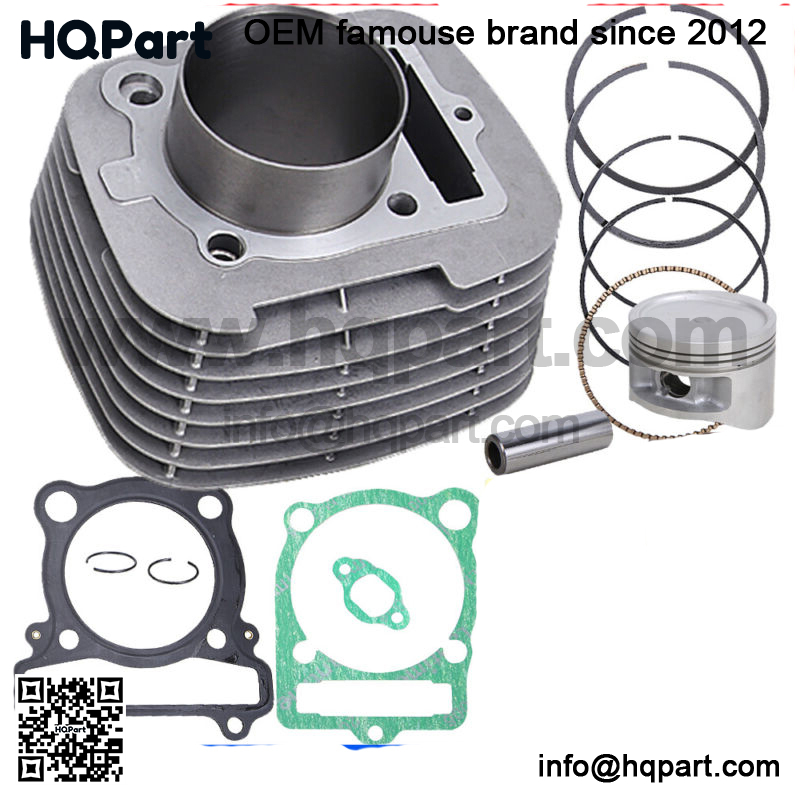

Sold in complete unit, which includespiston, rings, pin, clips, & top end gasket kit (you get exactly what is pictured).
Gasket with great sealing performance, leakage prevention
Promote combustion and provide enough horsepower
Excellent heat dissipation, ensure for driving experience
Wear resistance and heat resistance, long service life
Meet and exceed original standard and fitment, direct replacement
Replaces Part Number:
Cylinder: 5FU-11310-01-00, 5FU-11310-00-00, 4GB-11310-00-00
Piston: 4GB-11631-00-Y0
Piston Ring Set: 4GB-11610-00-00, 42Y-11610-00-00, 42Y-11610-01-00
Wristpin: 51Y-11633-00-00
Circlip(2): 93450-19095-00
Cylinder Head Gasket: 1UY-11181-00-00, 1UY-11181-01-00
Cylinder Base Gasket: 4KB-11351-00-00, 3GD-11351-00-00
Chain Tensioner Gasket: 3GD-12213-00-00
O-Ring: 93210-86509-00
Fitment:
Fit for Yamaha Kodiak 400 1993-1999
Fit for Yamaha Big Bear 400 2000-2012
Package Included:
1x Cylinder
1x Piston.
5x Piston Rings.
2x Circlips.
1x Head Gasket.
1x Base Gasket.
1x Gasket Maker
1x Threadlocker
Note:
Fitment above is for reference only, please check the part number and the size of cylinder bore before you purchase
Please feel free to contact us if you are not sure whether the item is suitable for your motorcycles, we will check for you and reply as soon as possible
Installation instruction is not included, professional installation is highly recommended
Please allow 1-3mm error due to manual measurement, thanks for understanding
Please kindly understand that the actual color may slightly vary from presented pictures due to different monitor
