Fitment :
For Yamaha Blaster 200 YFS200 1990-2006
Description??
Part Number :
Flywheel Generator | 2xj-85550-m1-00
Stator Magneto | 3jm-85560-00-00
Before attempting to start your ATV, adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010″.
Before installing your new Stator
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010″.
Package Include:

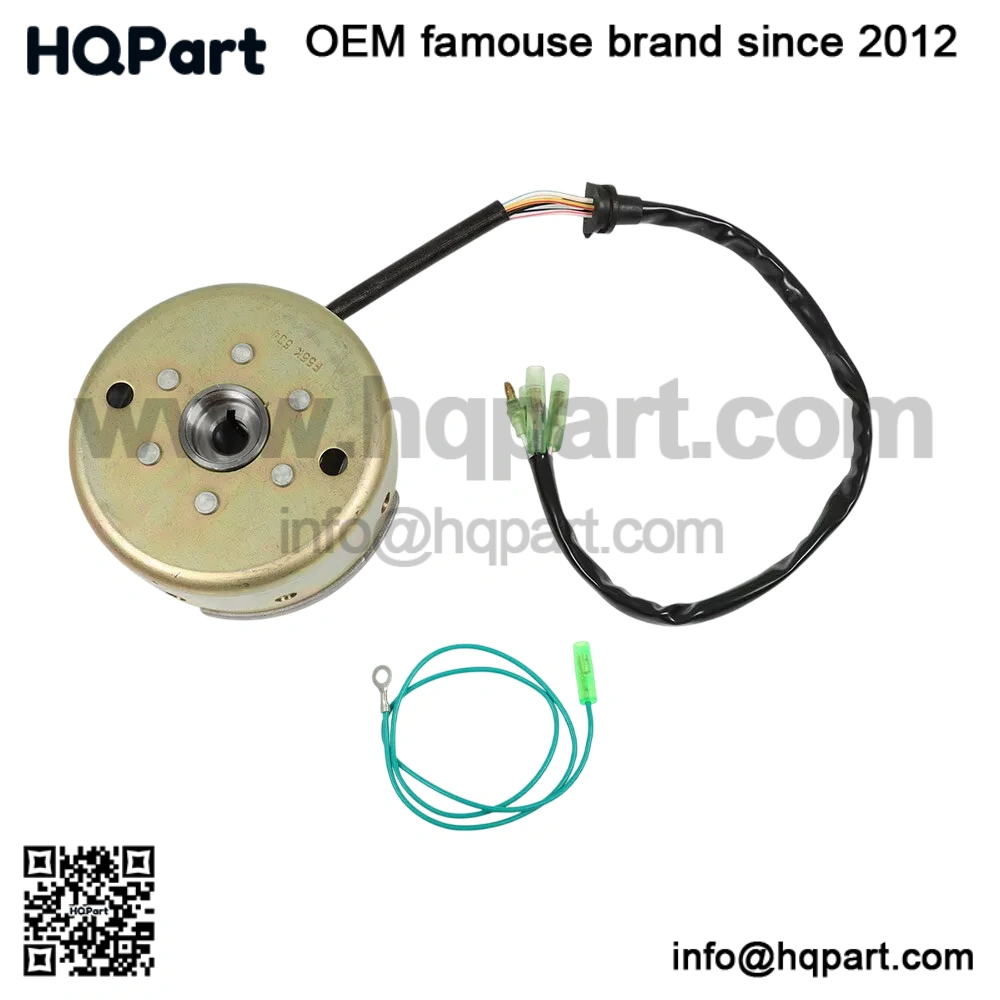

1 x Flywheel Generator
1 x Stator Magneto
W/o Product Instruction
