Cylinder Kit For Can-am Outlander Max 1000 6X6 EFI 2014-2020

Premium Quality Replacement Part
Cylinder Kit
For Can Am Models :
Commander 1000 2011-2017
Commander Max 1000 2014-2017
Outlander 1000 4×4 EFI 2012-2015
Outlander Max 1000 4×4 EFI 2013-2015
Outlander 1000 4×4 EFI 2016-2017 Except 1000(R)
Outlander Max 1000 4×4 EFI 2016-2017 Except 1000(R)
Outlander 1000 4×4 T3 2018-2020 (Only T3 Models)
Outlander Max 1000 4×4 T3 2018-2020 (Only T3 Models)
Outlander 1000 6X6 EFI 2014-2020
Outlander Max 1000 6X6 EFI 2014-2020
Renegade 1000 4×4 2012-2015
Renegade 1000 T3 2018-2020 (Only T3 models)

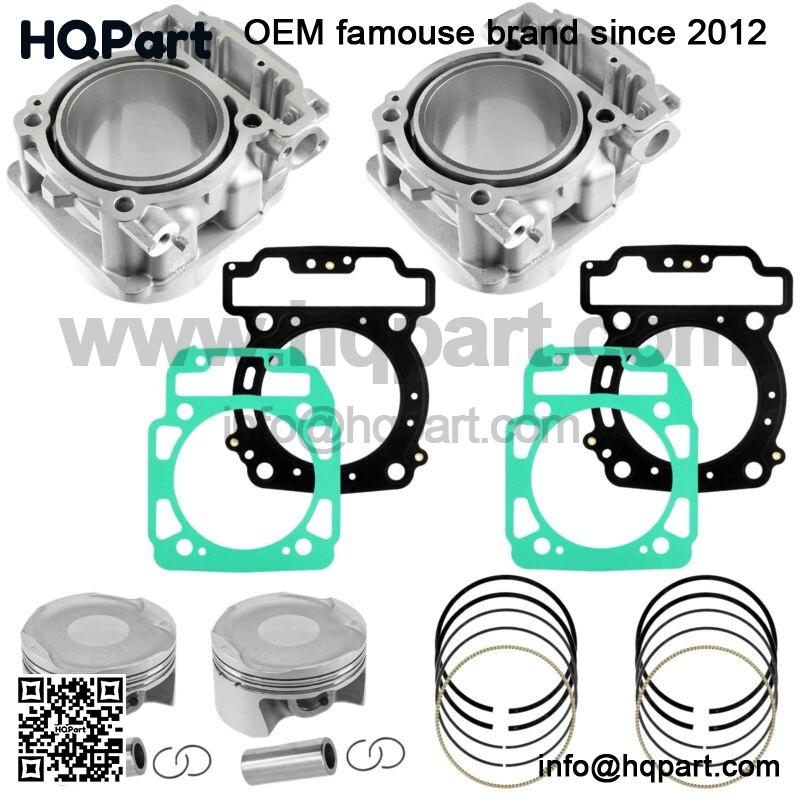

Order Includes :
1x Rear Cylinder : 420413116 420623568 420623567

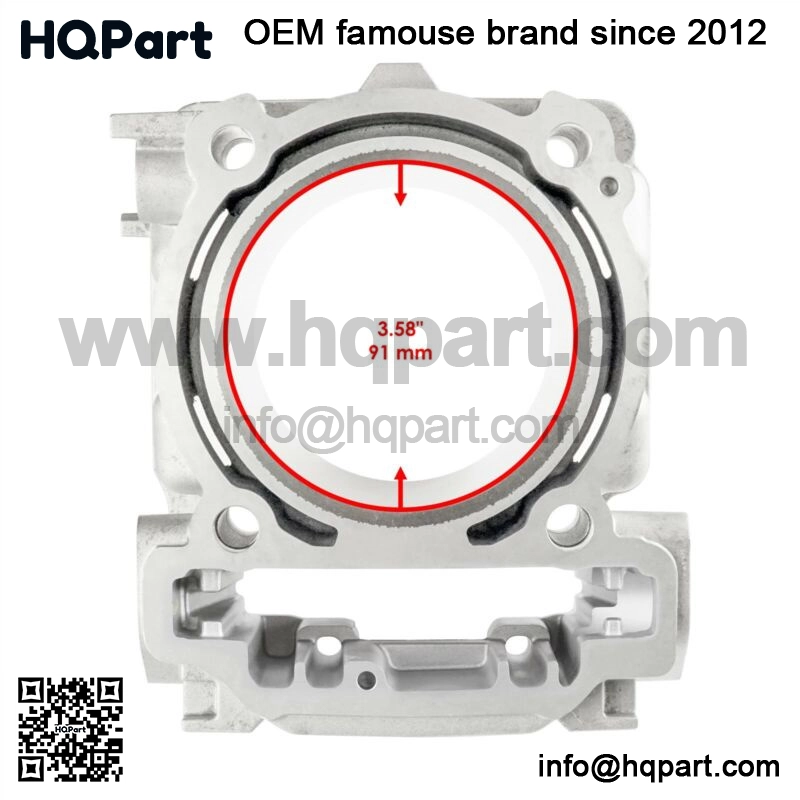

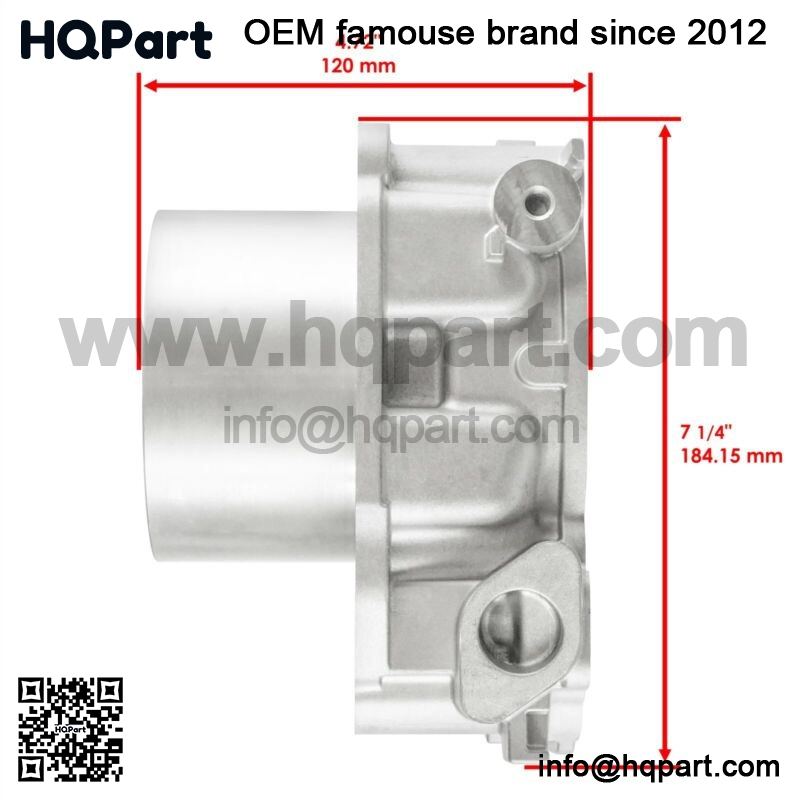

Bore Size : 91Height : 184.15mm | 7 1/4″Length : 120mm | 4.72 ”
1x Front Cylinder : 420623566 420623565
Bore Size : 91Height : 184.15mm | 7 1/4″Length : 120mm | 4.72 ”
2x Engine Piston: 420685248 420685242
Length : 91mm | 3.58 “Height : 47.4mm | 1.86 ”
2x Piston Rings :
420296774 420685244
Thickness : 0.15mm 0.08mmWidth : 4.02mm 2.24mm
2x Cylinder Base Gasket :
420630210
2x Cylinder Head Gasket :
420630195
