CV Axles For Can-Am Maverick Max 1000R 2018 Rear And Front

SKU Z.15811 705502415, 705401235, 705401873, 705401236, 705401874 Category Tag

Premium Quality Replacement Part

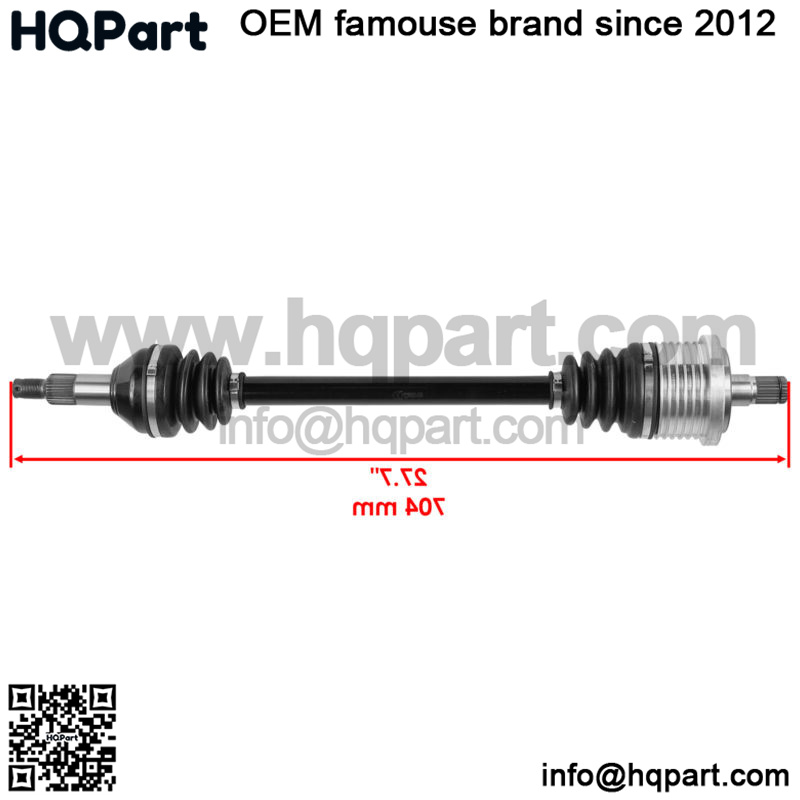

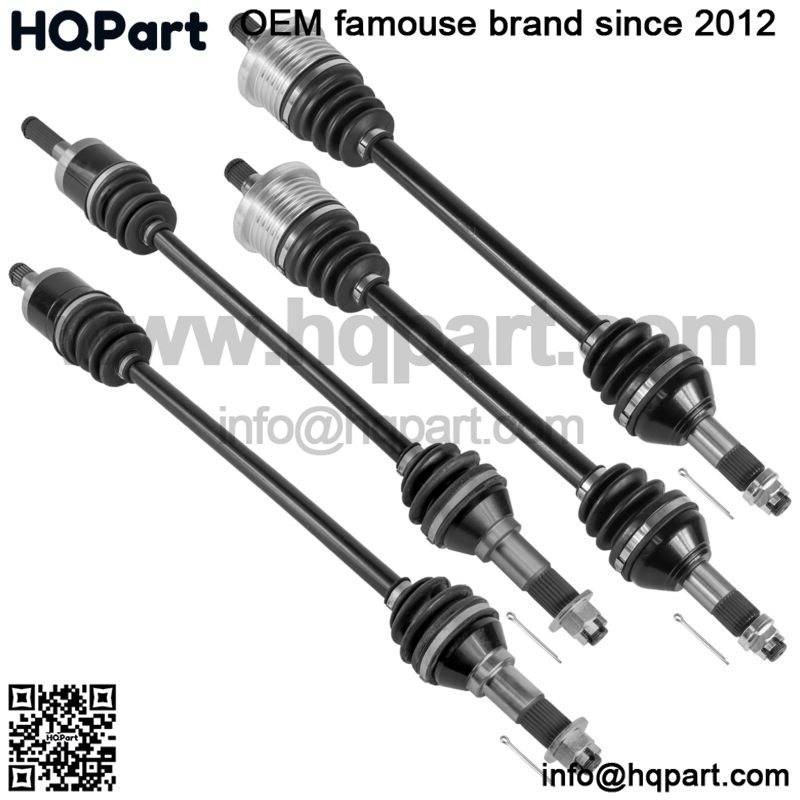

Rear And Front CV AxlesFor Can-Am Models:Maverick Max 1000R 2018Order Includes:2x Rear Left Or Right CV Axles : 705502415
Length : 704 mm | 27.7 ”

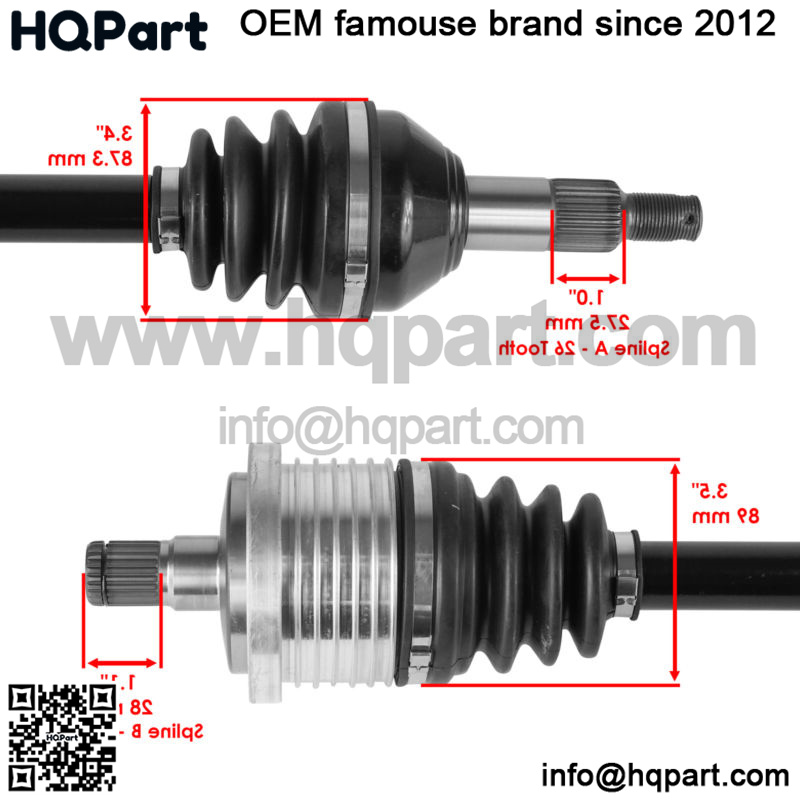

Spline A Length : 27.5 mm | 1.0 ”
Spline A Boot Width : 87.3 mm | 3.4 ”
Spline A – 26 Tooth
Spline B Length : 28 mm | 1.1 ”
Spline B Boot Width : 89 mm | 3.5 ”
Spline B – 28 Tooth
1x Front Left CV Axle : 705401235, 705401873Length : 749 mm | 29.4 ”
Spline A Length : 28.5 mm | 1.1 ”
Spline A – 26 Tooth
Spline B Length : 25.4 mm | 1.0 ”
Spline B – 21 Tooth
1x Front Right CV Axle : 705401236, 705401874Length : 787.5 mm | 31 ”
Spline A Length : 28.5 mm | 1.22 ”
Spline A – 26 Tooth
Spline B Length : 60 mm | 2.36 ”
Spline B – 21 Tooth
**
