Specs:

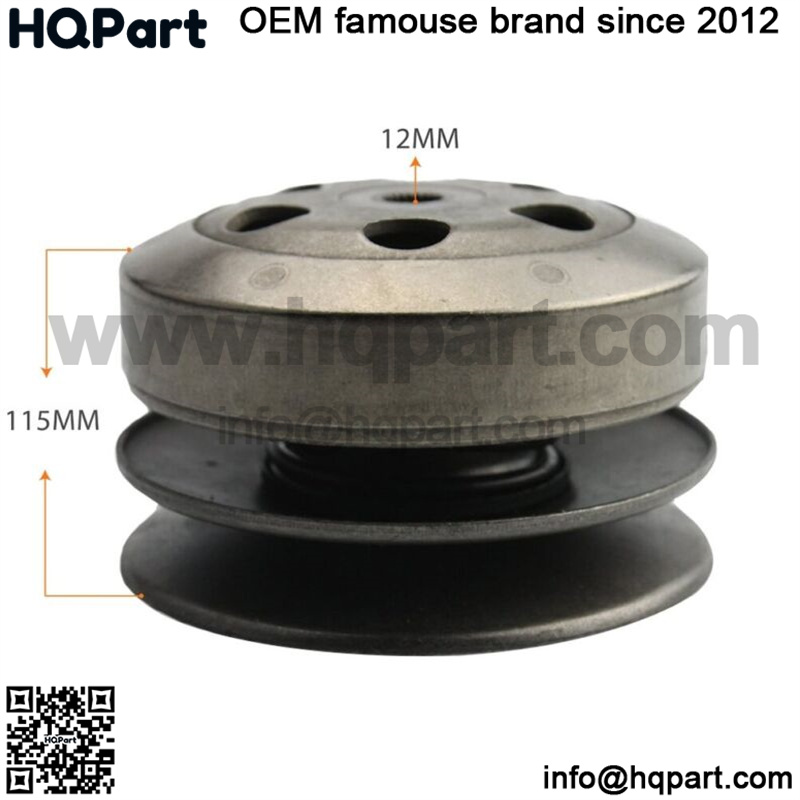

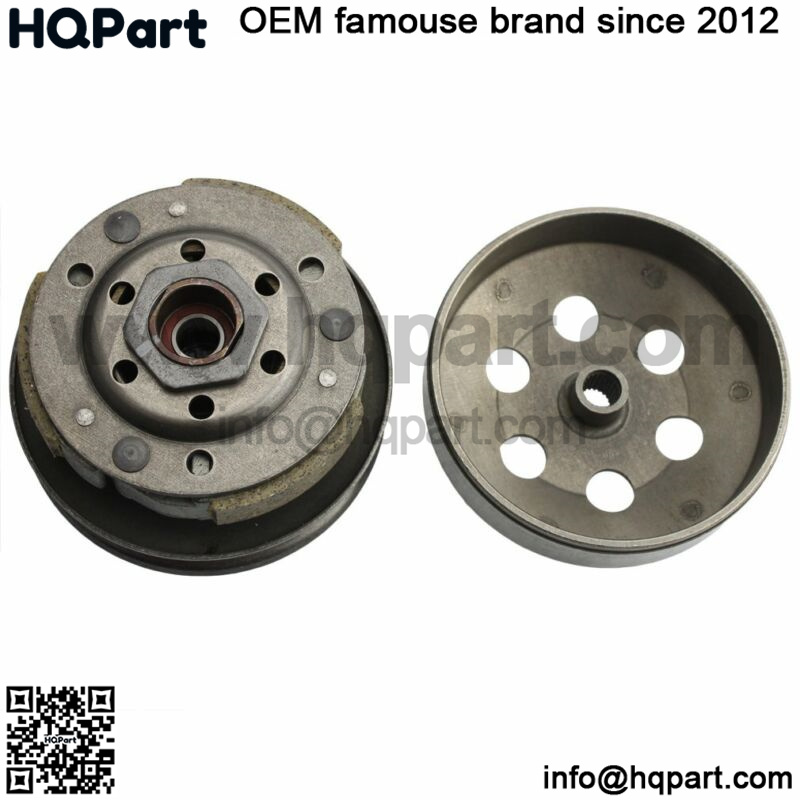

Clutch
Outer Diameter (pulley): 119mm
Outer Diameter (clutch bell): 115mm
Inner Diameter (clutch bell): 107mm
Inner Diameter (clutch): 12mm
Uses 6901-RS bearing Clutch Bell
Inner Diameter (splines peak to peak): 11mm
Number of Splines (clutch bell): 22
Variator
Drive face is plastic with a notch/tab metal gear for the spline shaft
Drive face center hole: 26 teeth [spline shaft]
Drive face hole diameter: 14mm [.55″]
Drive face diameter: 9.06cm [3.57″]
Variator face diameter: 8.77cm [3.45″]
Roller width: 13mm [.5″]
Roller OD: 16mm [.63″]
Roller ID: 9.45mm [.37″]
6 gram
BELT
BELT SIZE: 669 mm Length x 18 mm Width x 30 mm teeth spacing
