This is a set of new axles for a Yamaha ATV.They fit the following models:2003-2004 … Kodiak 450*Not intended for use in lifted vehiclesProduct features:
Stronger than OEM chromoly forged steel axle bars
Joints greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
(Fronts) Compressed Length: Left- 483 mm, Right- 492 mm, Inboard Spline Count – 21 (both), Outboard Spline Count – 27 (both)
(Rear) Outer spline count 27, Middle spline count 39
Replaces OEM # 5ND-F510F-00-00, 5KM-2510J-00-00, 4S1-2510F-00-00, 4S1-2510J-00-00, 4S2-2511E-00-00, 5ND-F5381-00-00, 5ND-F5381-01-00

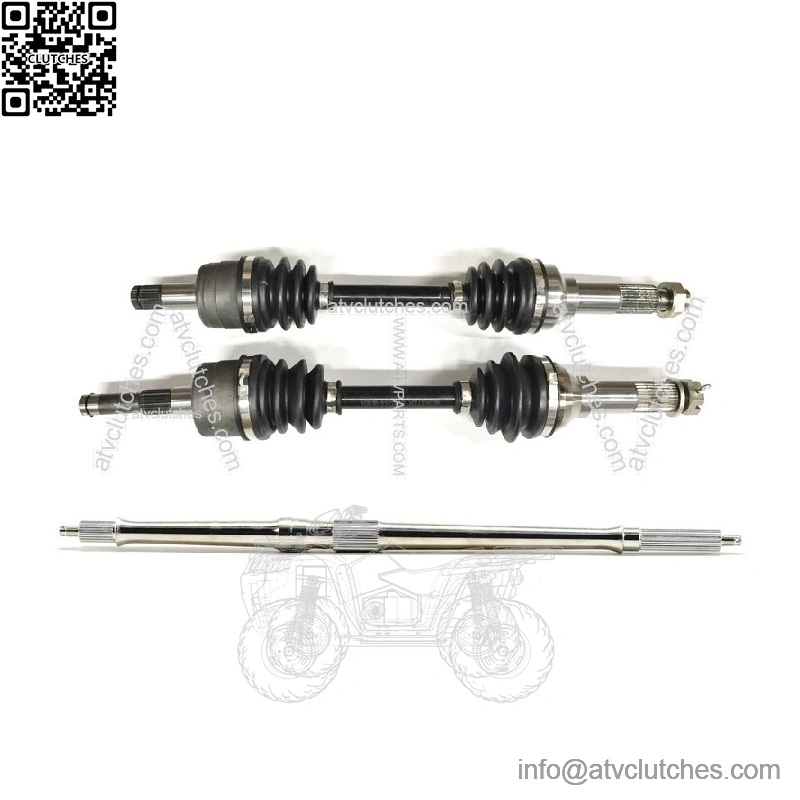

Set includes both front axles and the rear solid axles (as pictured)
