Premium Quality Replacement Part
Rear Swing Arm Bushing Kit
For Honda Models:
Foreman 500 TRX500 4×4 2012-2013

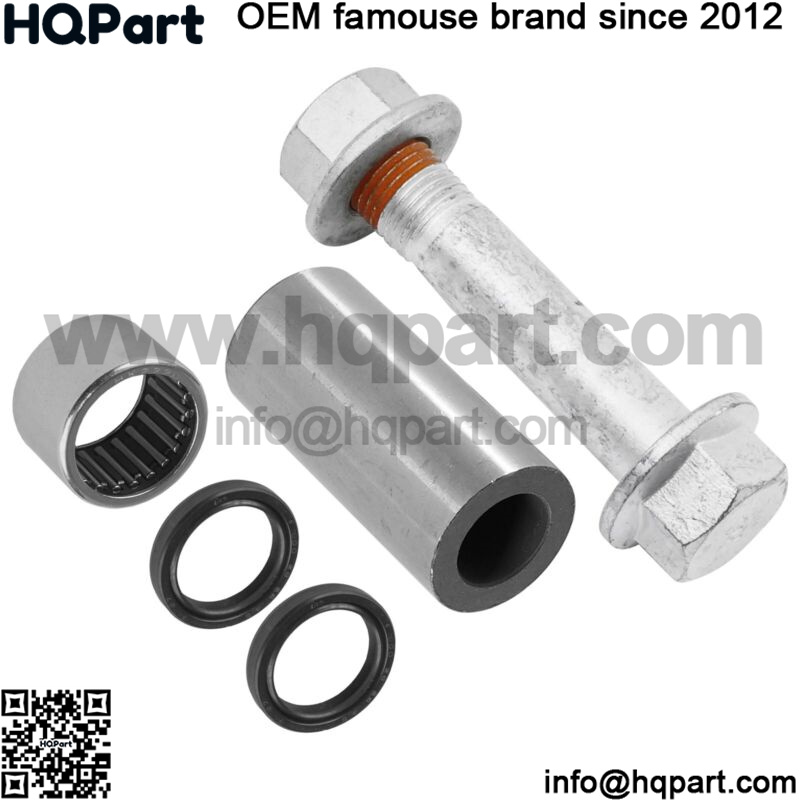

Order Includes:

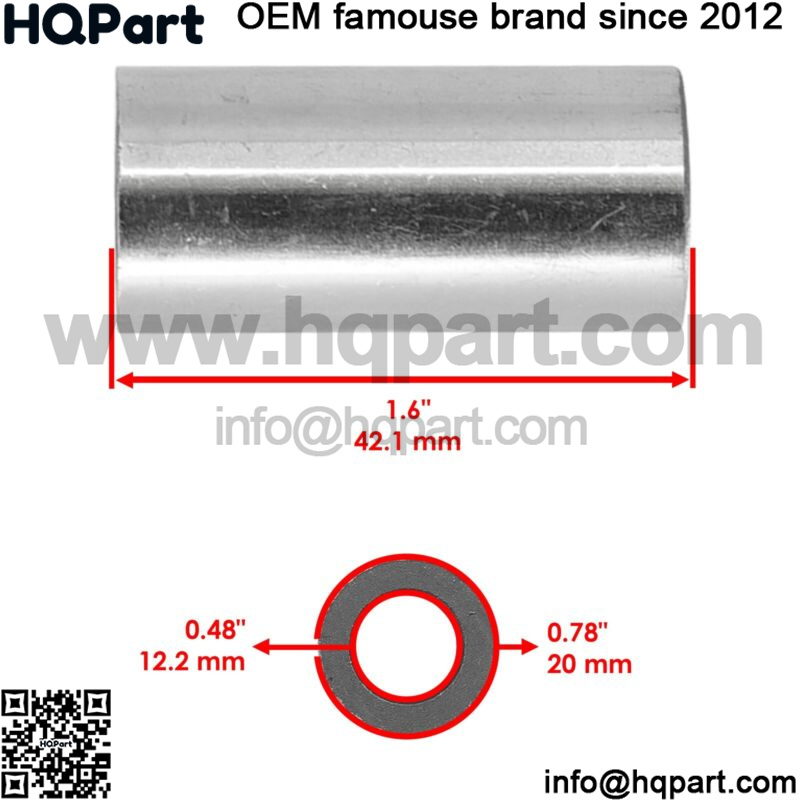

1x Pivot Shaft | 52142-HP5-600
Length: 42.1 mm | 1.6″
Inner Diameter: 12.2 mm | 0.48″
Outer Diameter: 20 mm | 0.78″
1 x Needle Bearing | 91070-GC4-601 91071-430-003
Width: 19.8 mm | 0.77″
Inner Diameter: 22.5mm | 0.8″
Outer diameter: 26 mm | 1.02″
2x Dust Seal | 91254-KS6-003 91254-KS6-005
Width: 4.3mm | 0.16″
Inner Diameter: 20 mm | 0.78″
Outer Diameter: 26 mm | 1.02″
1 x Pivot Bolt | 52101-HR0-F00
Length: 73.5 mm | 2.89″
Head Diameter: 23.9 mm | 0.94″
Note: Installs On Location (A) In Second Picture
Swing Arm Part Number: 52200-HR0-F00 52200HR0F00
**
