52″ Deck Spindle Blade & Pulley Assembly for Simplicity – OEM #5901743 5901267 5901229
Premium Quality Replacement Part
Deck Spindle Blade & Pulley
Compatible with Simplicity:
52″ Zero-Turn Mower:
5901743 – Contender XT, 24hp B&S
5901267 – Citation XT, 27hp B&S
5901229 – Citation XT, 28hp B&S
5901228 – Citation XT, 23hp Kaw.
5901267 – Citation XT, 27hp B&S
5901229 – Citation XT, 28hp B&S
5901228 – Citation XT, 23hp Kaw.

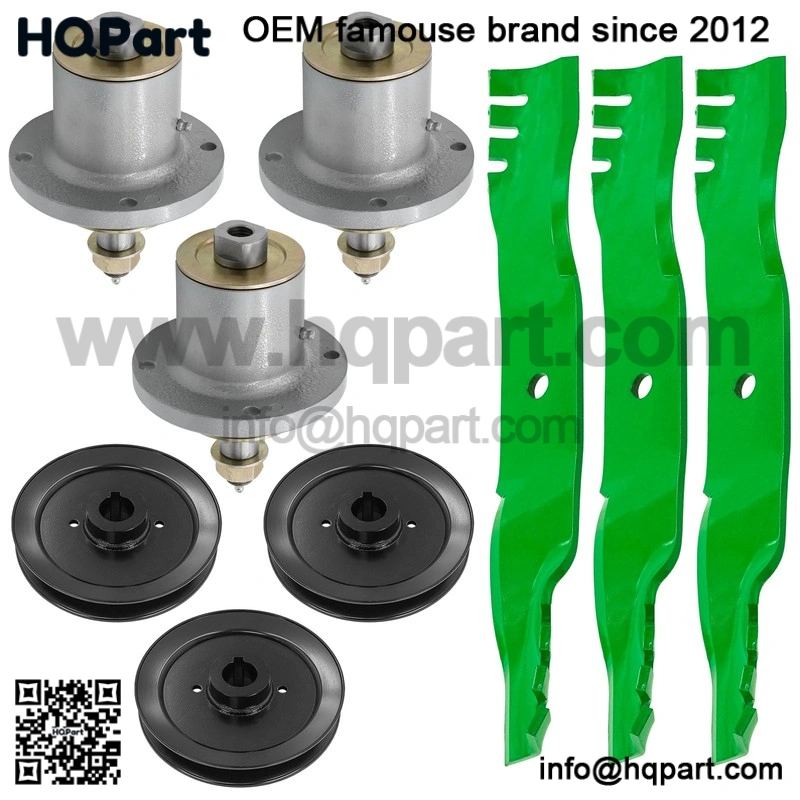

Order Includes:

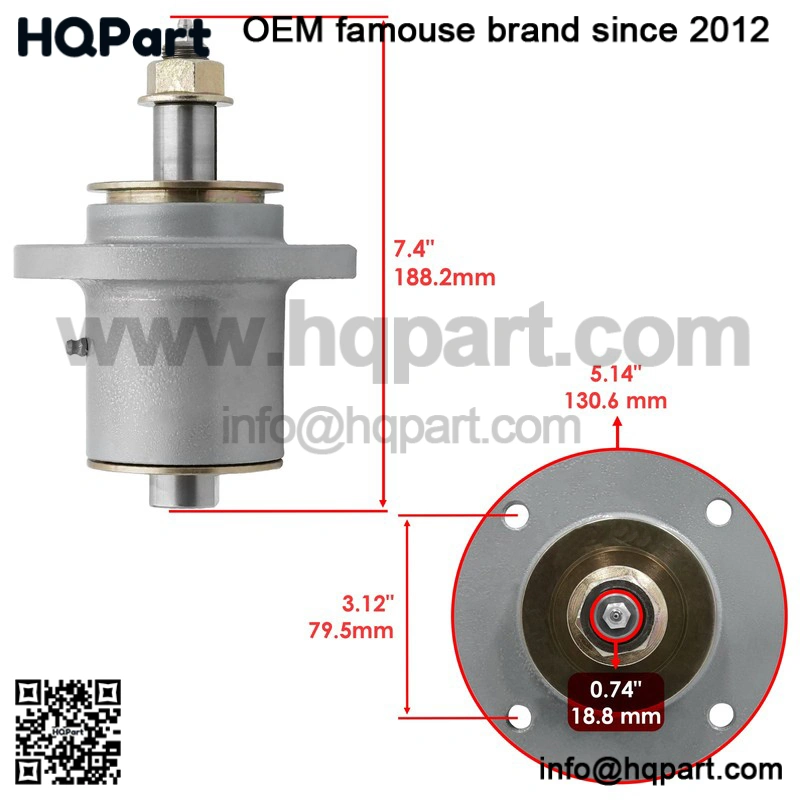

3x Spindle: 5061095SM
Width: 188.2mm – 7.4 in
Inner Diameter: 18.8mm – 0.74 in
Outer Diameter: 130,6mm – 5.14 in
Hole Distance: 79.5mm – 3.12 in

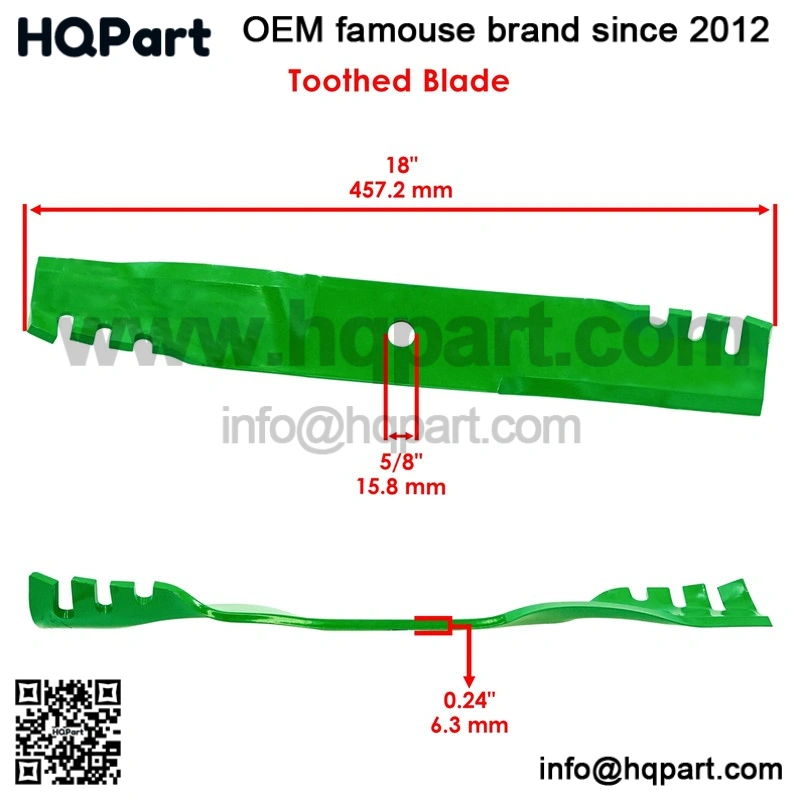

3x Blade: 5101756SYP
Width: 6.3 mm – 0.24 in
Length: 457.2 mm – 18 in
Inner Diameter: 15.8 mm – 5/8 in
3x Deck Pulley: 5101351YP, 5101351
Inner Diameter: 25 mm – 0.98 in
Outer Diameter: 133 mm – 5.23 in
Outer Width: 39 mm – 1.53 in
Inner Width: 15.5 mm – 0.61 in
