5137346 5436798 Front Rear A-Arm Pivot Shaft & Bushing Kit For Polaris

Premium Quality Replacement Part
Control Arm Front Upper or Lower Rear Lower Short Pivot Shaft & Bushing Kit
For Polaris Models:
Sportsman 550 2011-2013
Sportsman X2 550 2011-2013
Sportsman 850 2011-2013
Sportsman XP 850 2011-2013
Sportsman X2 850 2011
Control Arm Part Number:
Front Upper Left 1025617-067 1017260-067
Front Upper Right 1025618-067 1017261-067
Front Lower Left 1019810-067 1018193-067
Front Lower Right 1019811-067 1018194-067
Rear Lower Left 1019410-067 1017864-067
Rear Lower Right 1019411-067 1017865-067

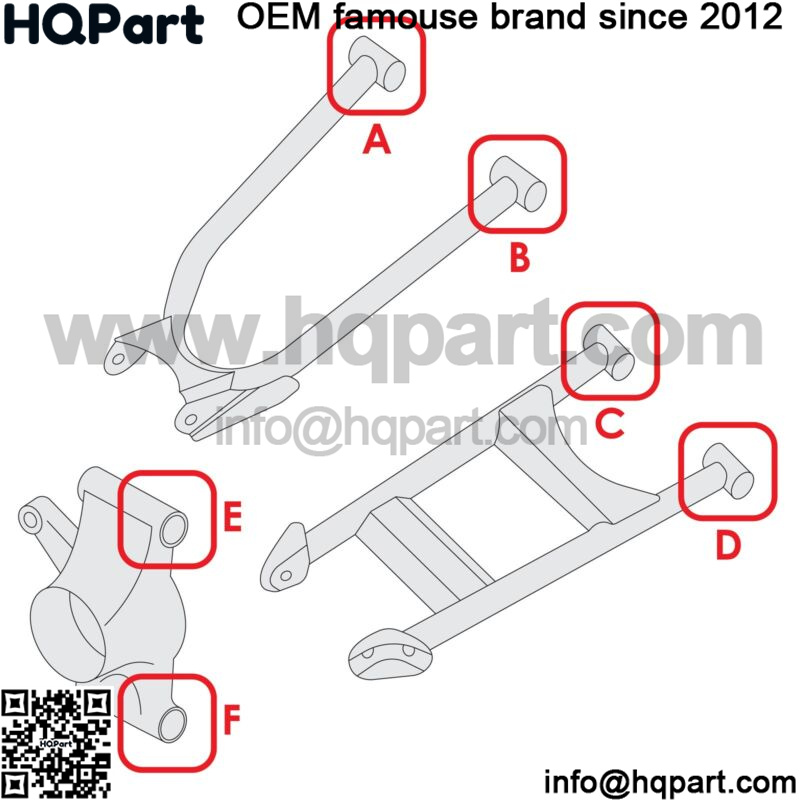

Note: Installs On Location Front Upper (A) or ( B ), Front Lower & Rear Lower (C) or (D) In Second Picture

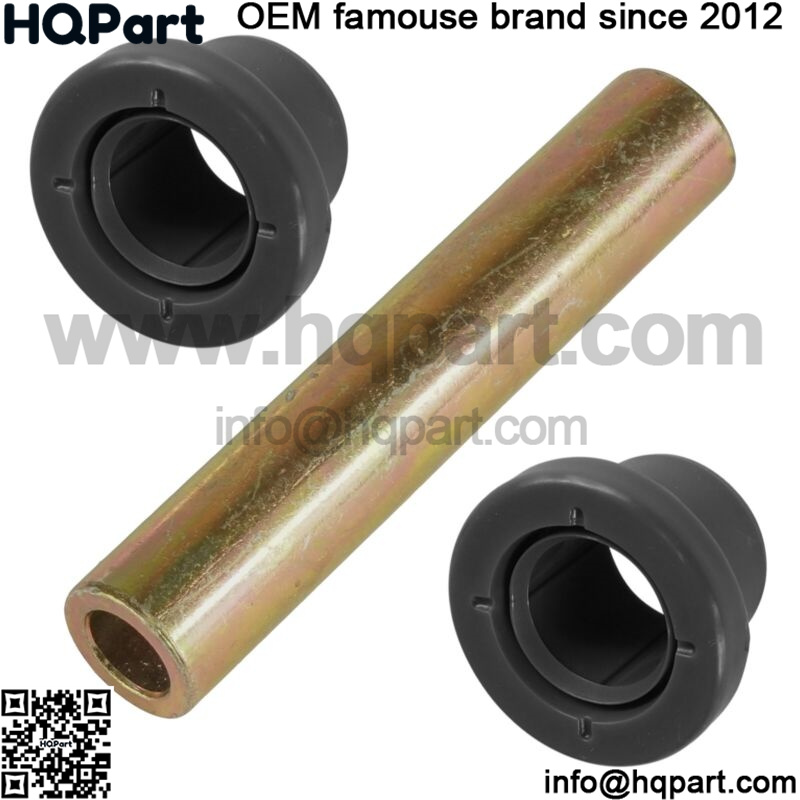

Order Includes:

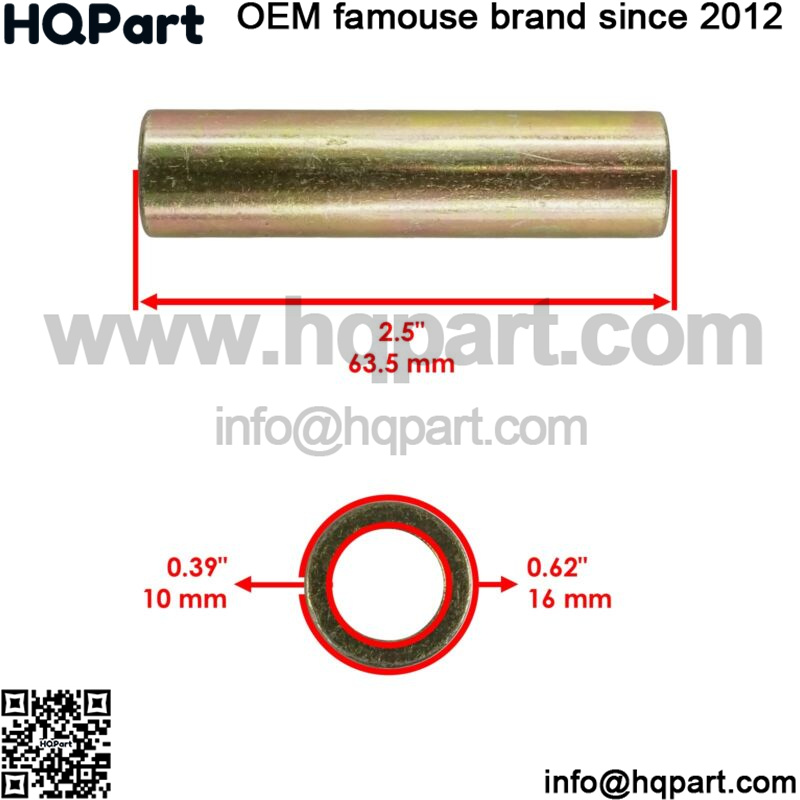

1 x Short Pivot Shaft: 5137346
Length: 2.5″ | 63.5 mm
Inner Diameter: 0.39″ | 10.0 mm
Outer Diameter: 0.62″ | 16.0 mm
2 x Short Bushing: 5436798
Length: 0.80″ | 20.5 mm
Inner Diameter: 0.6″ | 15.5 mm
Outer Diameter: 1.2″ | 31.0 mm
**
