5137346 5436798 Front A-Arm Lower Upper Bushing Kit For Polaris
Premium Quality Replacement Part
Front A-Arm Lower Upper Left Right Bushing Kit
For Polaris Models:
Sportsman 550 2011-2013
Sportsman X2 550 2011-2013
Sportsman 850 2011-2013
Sportsman XP 850 2011-2013
Sportsman X2 850 2011
A-Arm Part Number:
Front Upper Left 1025617-067 1017260-067 1018195-067 1019620-067
Front Upper Right 1025618-067 1018196-067 1017261-067 1019621-067
Front Lower Left 1019810-067 1018193-067 1017156-067 1019519-067
Front Lower Right 1019811-067 1018194-067 1019811-067 1019520-067
Note: Installs On Location (A) (B) (C) (D) In Second Picture

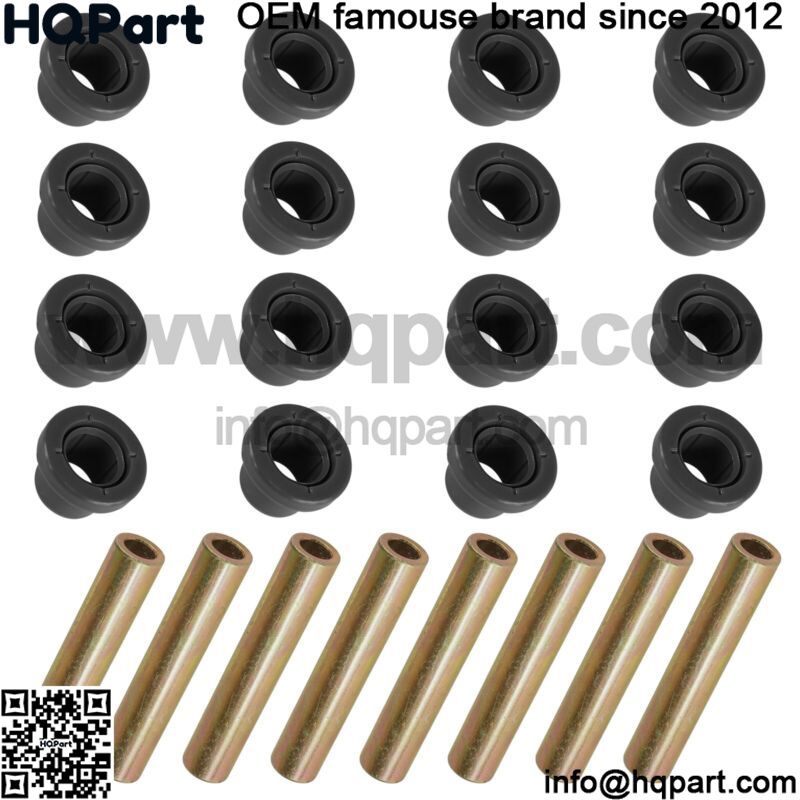

Order Includes:

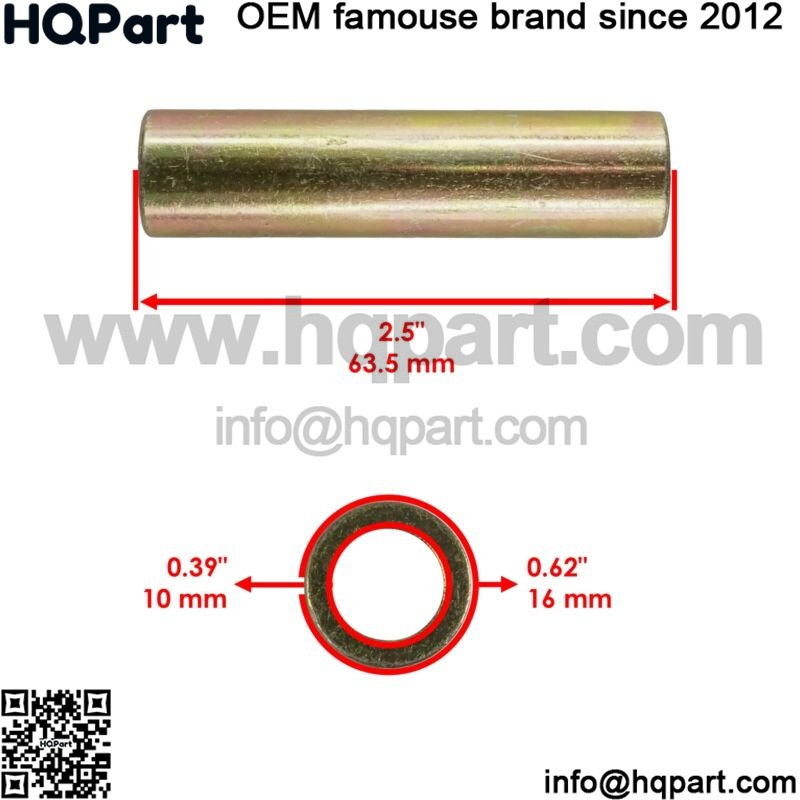

8 x Short Pivot Shaft: 5137346
Length: 2.5″ | 63.5 mm
Inner Diameter: 0.39″ | 10.0 mm
Outer Diameter: 0.62″ | 16.0 mm
16 x Short Bushing: 5436798
Length: 0.80″ | 20.5 mm
Inner Diameter: 0.6″ | 15.5 mm
Outer Diameter: 1.2″ | 31.0 mm
**
