Premium Quality Replacement Part
Mower Deck Spindle
Compatible with Toro Lawn Tractor:
13AX60RG848 (LX 423) (2009) 42″
13BX60RG544 (LX 425) (SN: 1E237H10145 & Above) (2007)
13BX60RG744 (LX 425) (SN: 1C307H10418 & Above) (2007)
13BX60RG748 (LX 425) (SN: 1E087H10251 & Above) (2007)
13AL60RG044 (LX 426) (SN: 1L107H10100 & Above) (2008)
13AL60RG048 (LX 426) (SN: 1L107H10100 & Above) (2008)
13AL60RG544 (LX 426) (SN: 1L107H10100 & Above) (2008)
13RL60RG044 (LX 426) (SN: 1L107H10100 & Above) (2008)
13RL60RG244 (LX 426) (SN: 1L107H10100 & Above) (2008)
13AX61RG848 (LX 427) (SN: 1A019H10001 – 1A309H19999) (2009 & Before) 42″
13AX61RG848 (LX 427) (SN: 1A319H10001 – 1L319H19999) (2009 & After) 42″
Compatible with MTD Models:
13A1762F065 Gold (2013)
13A1762F265 Gold (2013)
Compatible with Yard Machines Lawn Tractor:
13BC762F000 (2015-2017)
420/38 (13A2762F345) 38″ 420cc (2017)
13AC762F000 (2010-2013) 38″
13AC762F020 (2010-2011) 38″
13BC762F000 (2011-2014) 38″
13A1762F020 (2011) 38″
13BC762F000 (2011-2014) 38″
13AC762F200 (2010) 38″
Compatible with Yard-Man Lawn Tractor:
13AC76LF055 (2010-2013)
13AN79GS897, 13AO785T055 (2012)
13RC76LF055 (2010)
13BC76LF055 (2014)
Compatible with Bolens Lawn Tractor:
13W1762F065 (2011-2012) 38″
13AC762F065 (2010)
Compatible with Troy-Bilt Lawn Tractor:
13AV77KF066 Tuffy (2010-2011) 38″
13WV77KF066 Tuffy (2010) 38″
Compatible with White Outdoor Lawn Tractor:
LT-1700 (13AV77TF090) 38″ (2010)
LT-1700 (13WV77TF090) 38″ (2010)
Compatible with Murray Lawn Tractor:
13BC76LF058 (2014)
M 115-38 (13AC77LF058) 38″ (2017)
M 115-38 (13BC77LF058) 38″ (2018)
M 135-38 (13A1762F058) 38″ (2019)
Compatible with Huskee Lawn Tractor:
LT 3800 (13AC76LF031) 38″ (2010-2013)
LT 3800 (13W276LF031) 38″ (2013)
Compatible with Columbia Lawn Tractor:
V 761 F (13AV761F597) 38″ (2008)
V 76 GF (13AV76GF897) 38″ (2010)
C 76 GF (13AC76GF897) 38″ (2010)
C 79 GF (13AN79GF897) 38″ (2011)
LT 538 G (13AC77GF897) 38″ (2012)
LT 3812 (13AC77KF897) 38″ (2013)
LT 3812 (13BC77KF897) 38″ (2014)
CLT 38 G (13A277KF897) 38″ (2015-2017)
CLT 38 G (13B277KF897) 38″ (2018)
CLT 38 G (13AB77KF897) 38″ (2019)
Order Includes:

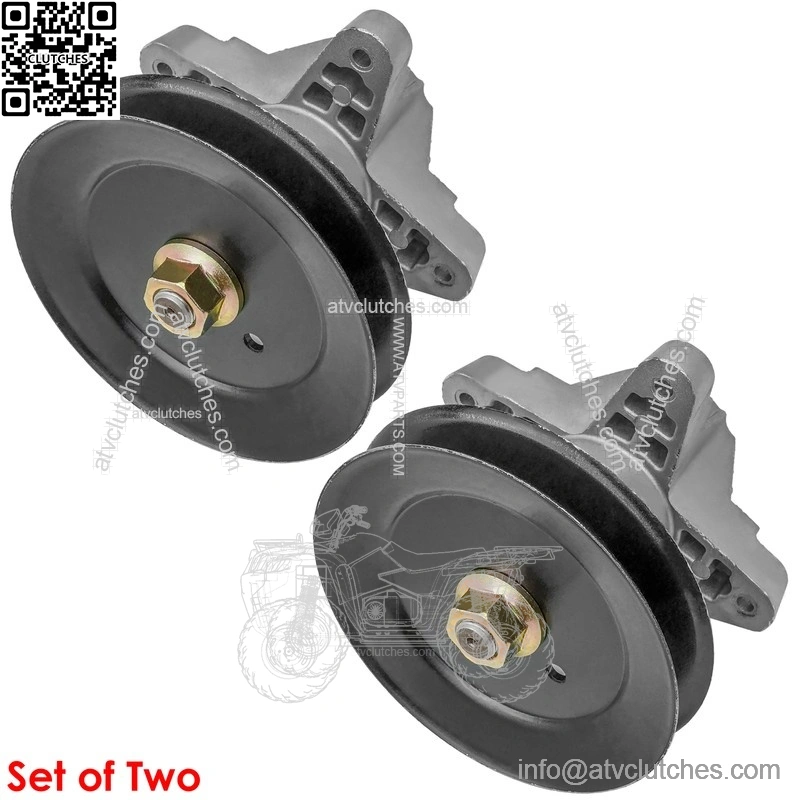

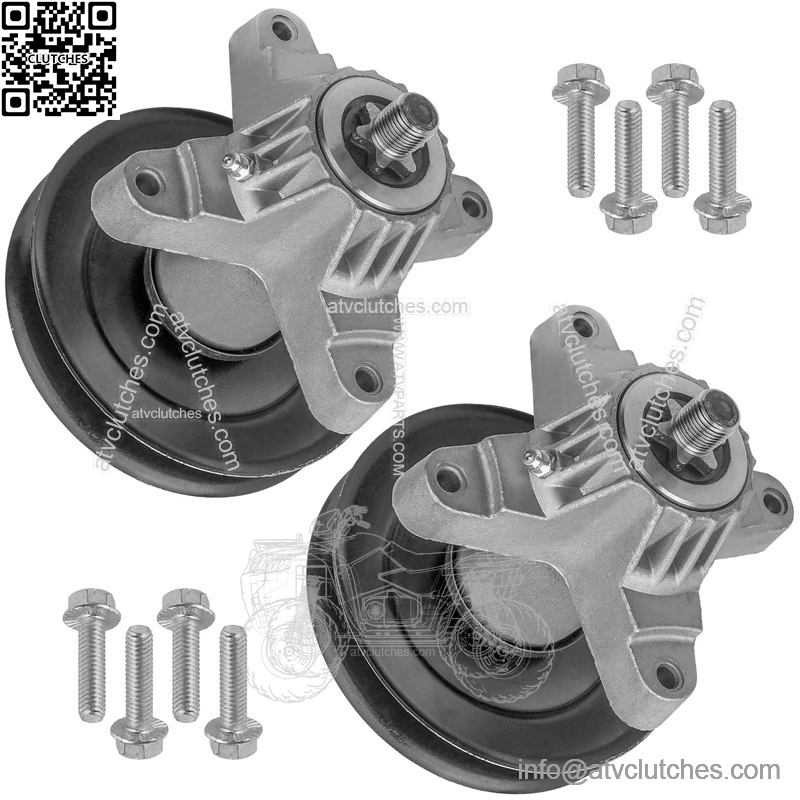

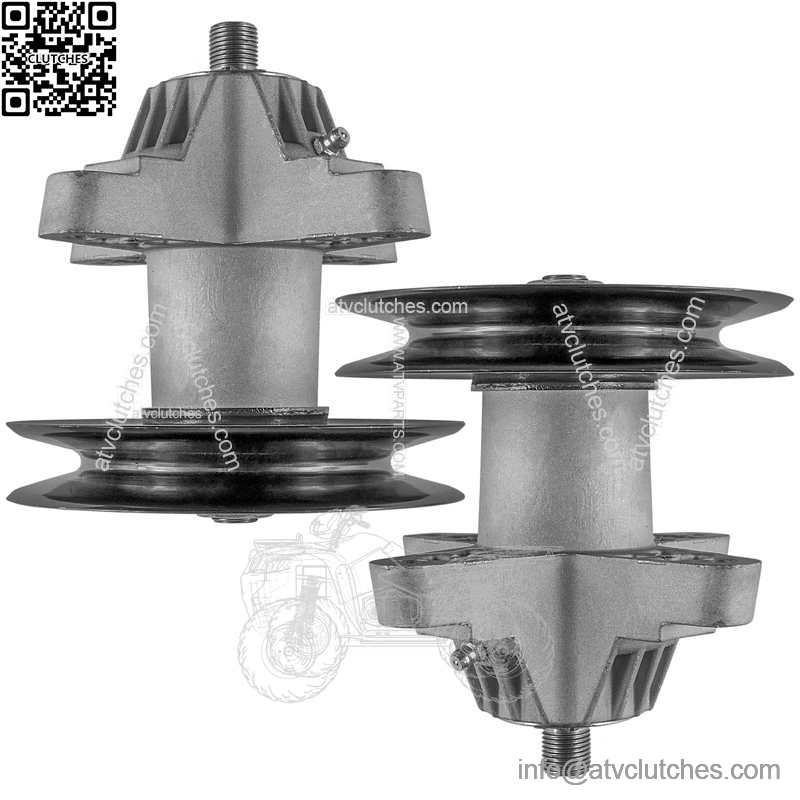

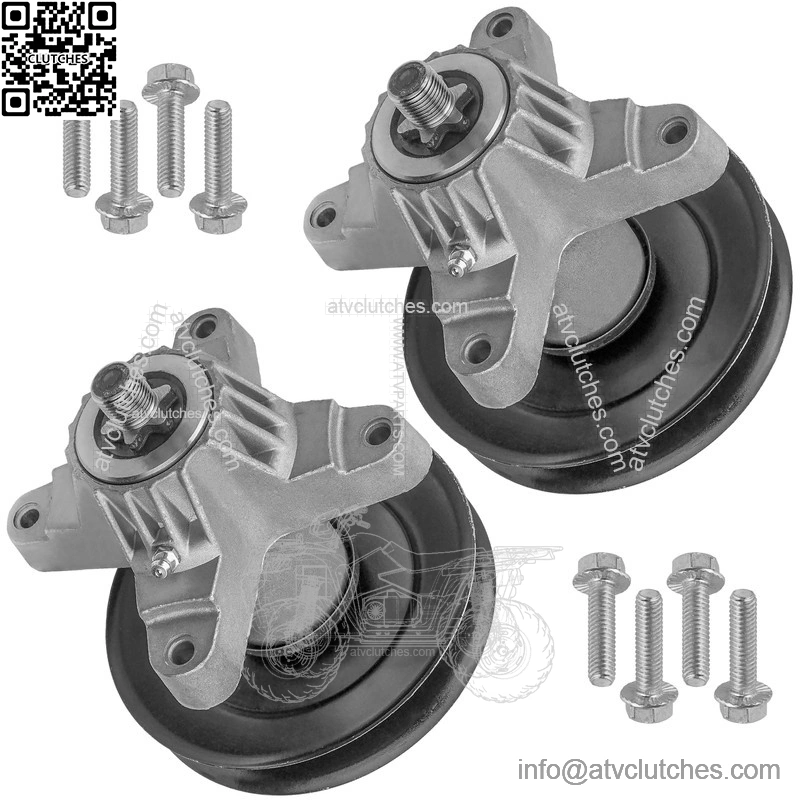

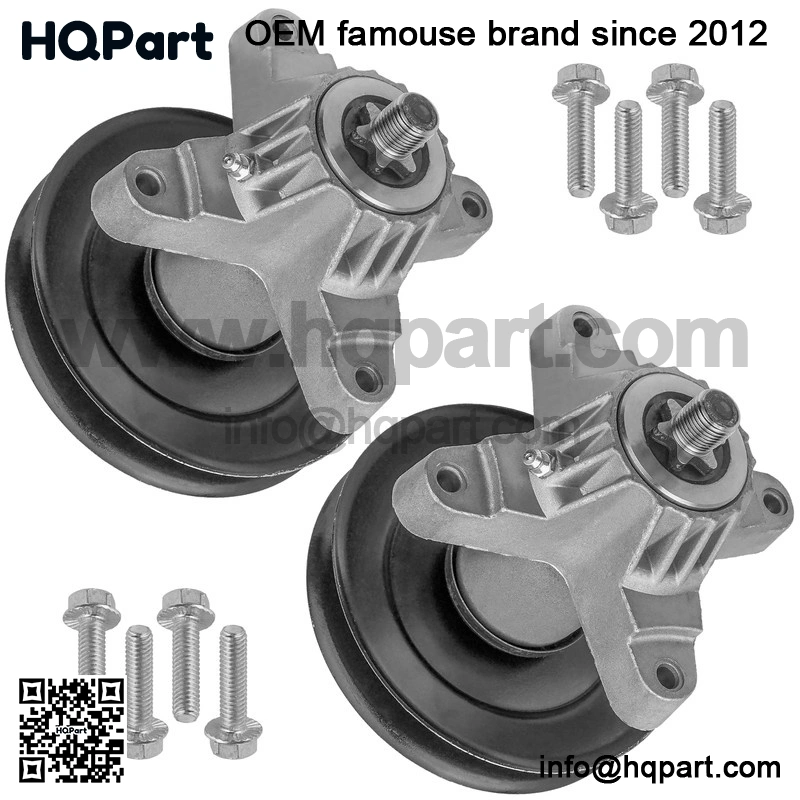

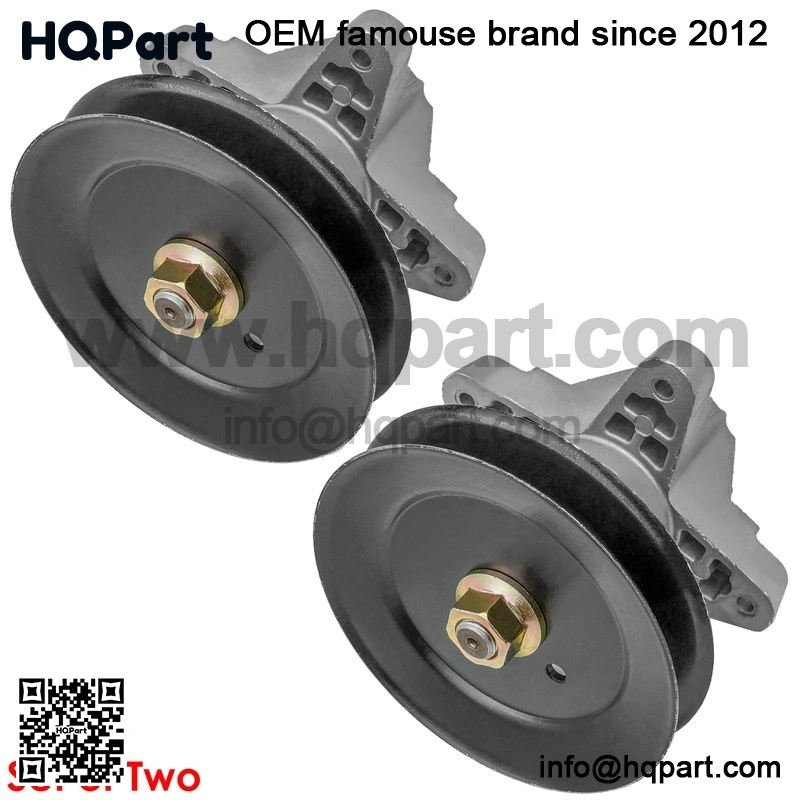

2 x Spindle Assemblies:
1652-111, 741-0919, 741-0919B, 741-0919P
941-0919, 9410919A, 941-0919A, 941-0919B
1185121, 1728255, 1860626, 112-0377, 230-129

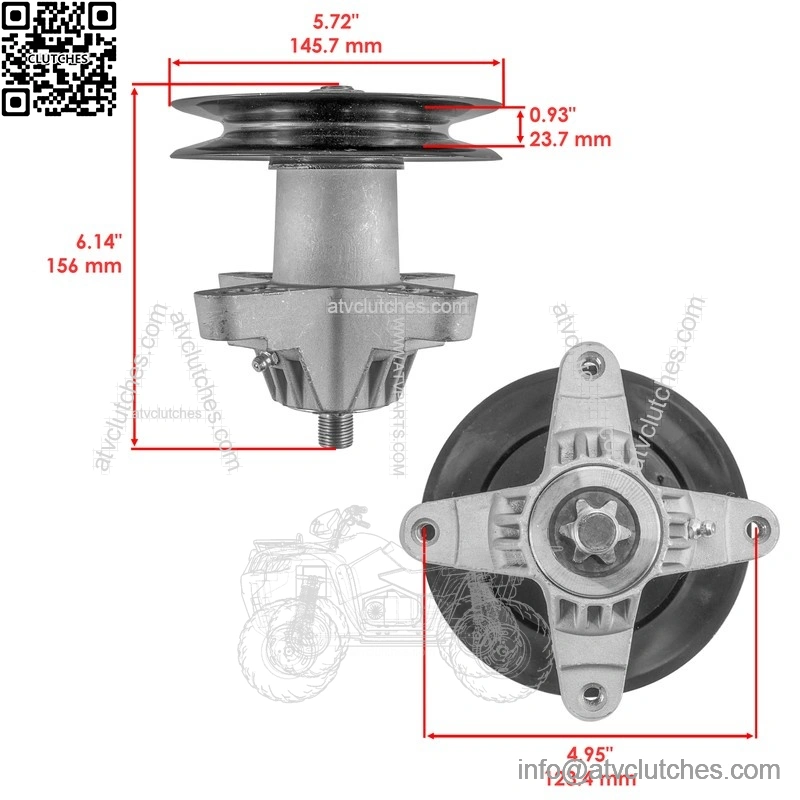

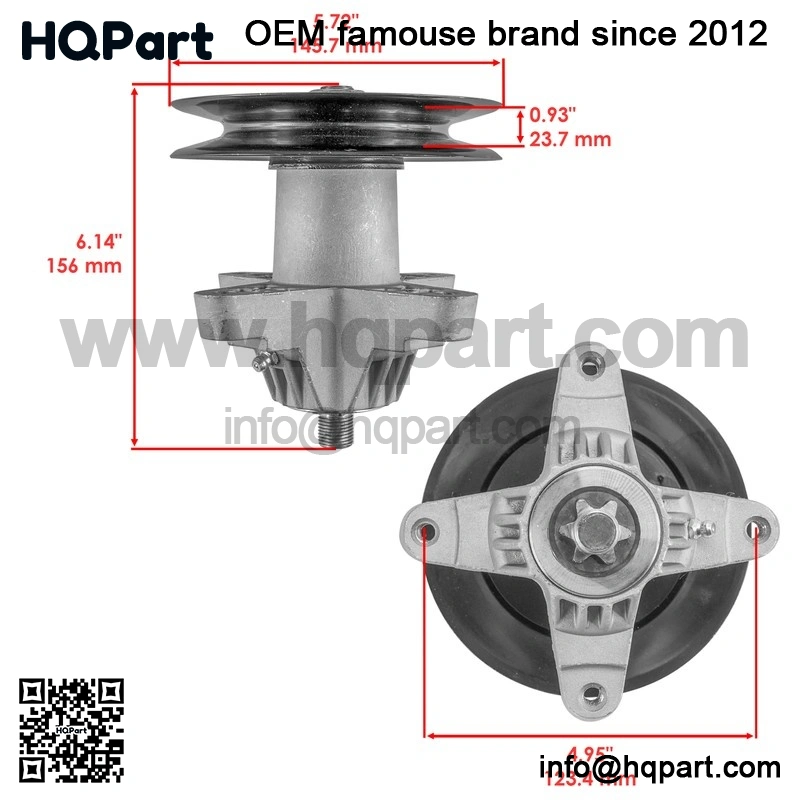

Height: 6.14 in – 156 mm
Pulley Diameter: 5.72 in – 145.7 mm
Pulley Inner Width: 0.93 in – 23.7 mm
Mounting Hole Distance: 4.95 in – 123.4 mm
