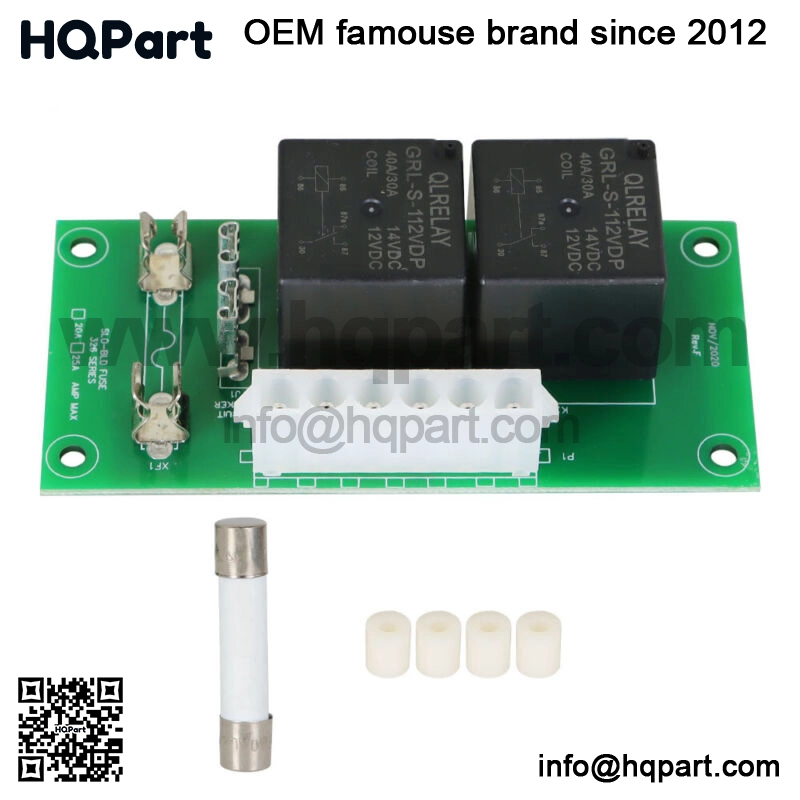

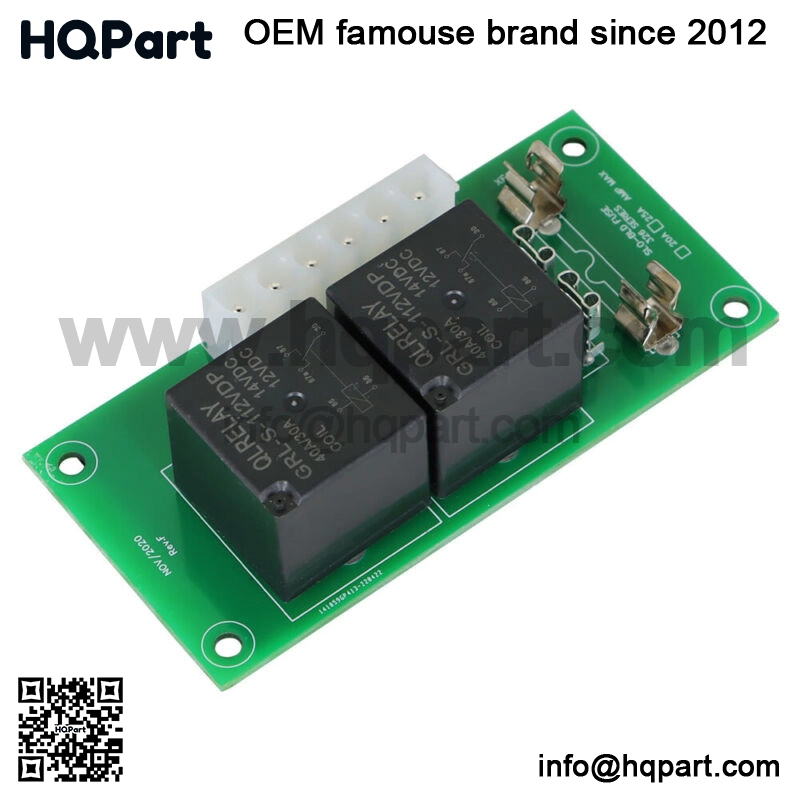

Description?? The original Power Gear 14-1130 and 140-1130 are relay boards that have high power relays that route the power to the electric motors for your Power Gear Slide Out System. This circuit board replaces Power Gear circuit board model numbers 14-1130, 14-1098 and 14-1086. The same fuse and breaker that is on the old board may be used on the new 140-1130. The 140-1130 controller will need the center wire on the wall switch to be a 12VDC (positive trigger) which on some models of controllers such as the 14-1098 are ground trigger. If you have the older Power Gear 14-1098 board on your RV this won’t be a drop in replacement. It’s slightly larger (so you’ll need to have new holes to screw it down) and you’ll also have to do some changes to your stock wiring. If you do the changes this will function for your system just fine.Part Number?? 14-1130 or 140-1130 246063Installation Instruction: Disconnect The Slide Out System From The Power Supply Disconnect The Wiring Harness From The Original Board Remove The Circuit Bresker And Glass Fuse From The Original Board Remove The Old Power Gear 14-1130 (or 140-11300??board Install The New Power Gear 14-1130 Replacement Board And Make Sure To Use Provided Spacers On The Bottom To Avoid Short Circuit Put The Circuit Breaker And Glass Fuse You Removed From Your Original 14-1130 (140-1130)board On This New Power Gear 14-1130 Replacement Board Reattach The Wiring Harness To This New Power Gear 14-1130 Replacement Board Reconnect The Slide Out System To The Power SupplyPackage Including: 1 X Power Gear 14-1130 or 140-1130 Slide out relay 1 X Slow blow fuse 4 X Spacers for the bottom of board (to avoid short circuit).
