Specification??Minimum Pump Power Requirement:2 hpVoltage:230 Volts
Frame:48Y
FrequencyRating:60 Hz
Full Load Amps:10.4 A
RPM:3450Color:Black
Warranty:1 Year
FR:48Y
AMPS:10.0
AMB:50??
Flange Type:Square

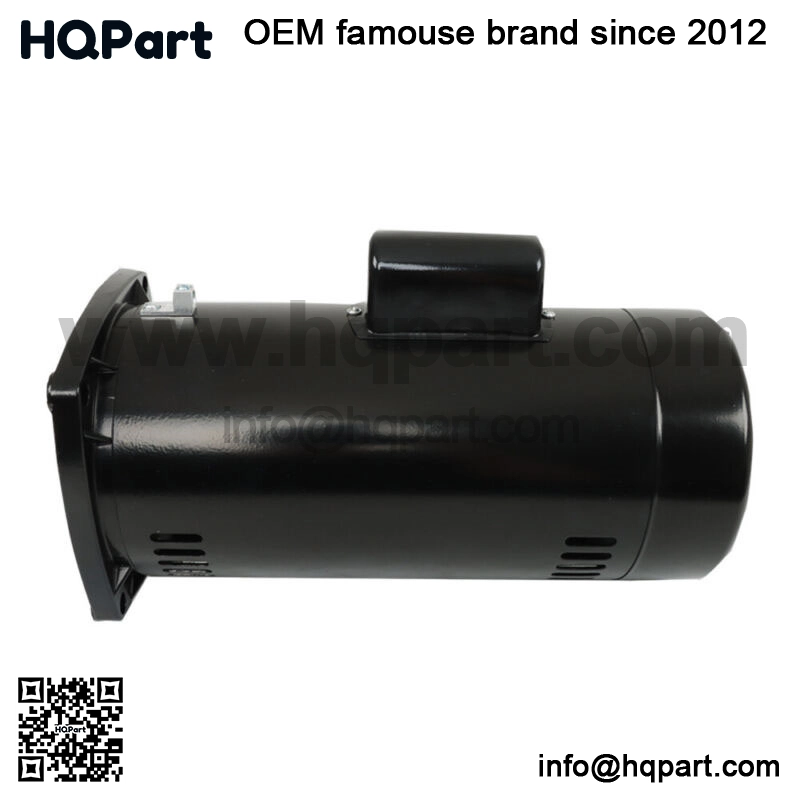

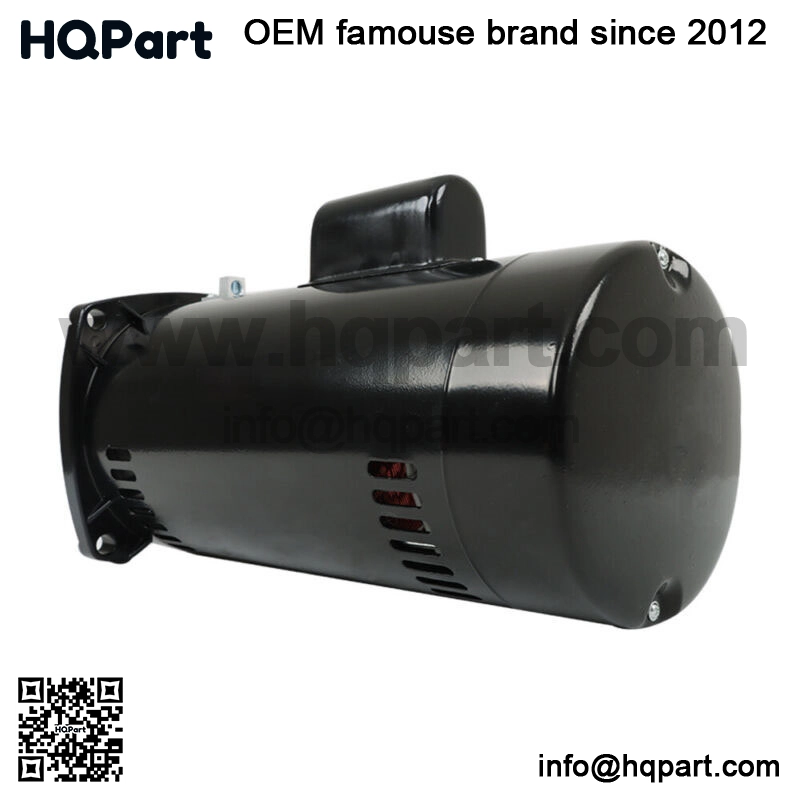

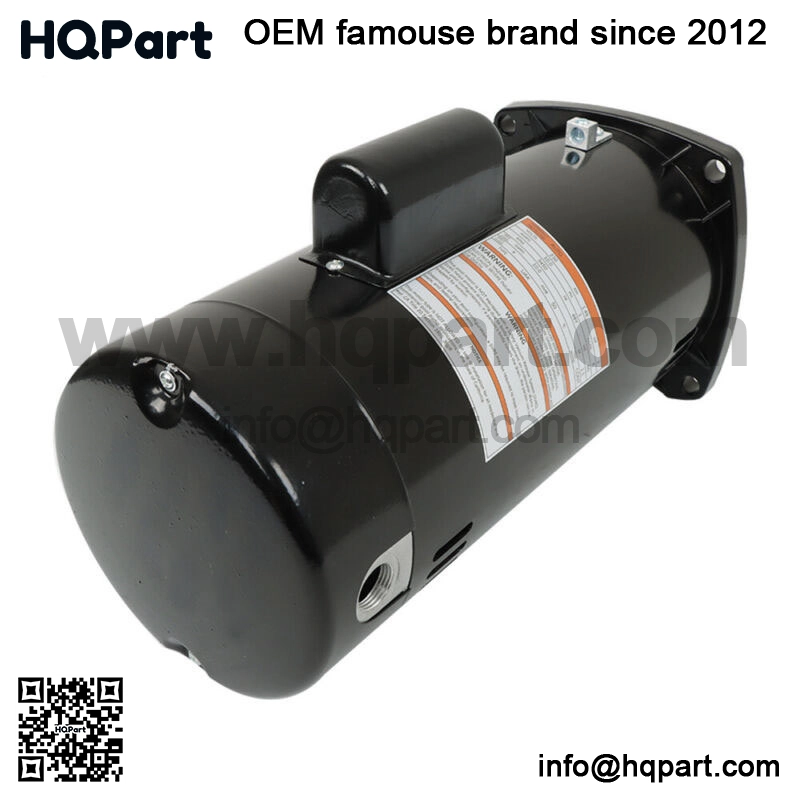

Item:Two-Compartment Pool Filter Motor
Motor Design:Capacitor Start/Run
Motor Shaft Rotation:CCWPE
Motor Thermal Protection:Auto
Phase:1-Phase
Shaft Design:Threaded
Shaft Material:303 Stainless Steel
Enclosure Design:Open Dripproof
Duty Cycle:Continuous
Bearing Type:Sealed BallFeatures:Single-Speed
Suitable For:In Ground Pools Feature:Swimming pool pump motor. Commonly found on inground pool pumps such as Sta-Rite Max-E Glas, Dura Glas, Dyna Glas and many other pumps requiring a 48Y square flange frame motor. 48Y motors do not have internal threaded hole in shaft.
Century motors are found on most swimming pool pumps. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings.
Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Wiring diagram on motor name plate. Package Including??1* USQ1202 2 HP 3450 RPM 48Y Frame Square Flange Pool Motor Notes??-If You Are Not Sure The Item 100% Fit For Your Vehicle Before Your Purchase.-Please Allow 1-3CM Differs Due To Manual Measurement.
-Due To The Different Display And Different Light, The Picture May Not Reflect The Actual Color Of The Item. Thanks For Your Understanding.
