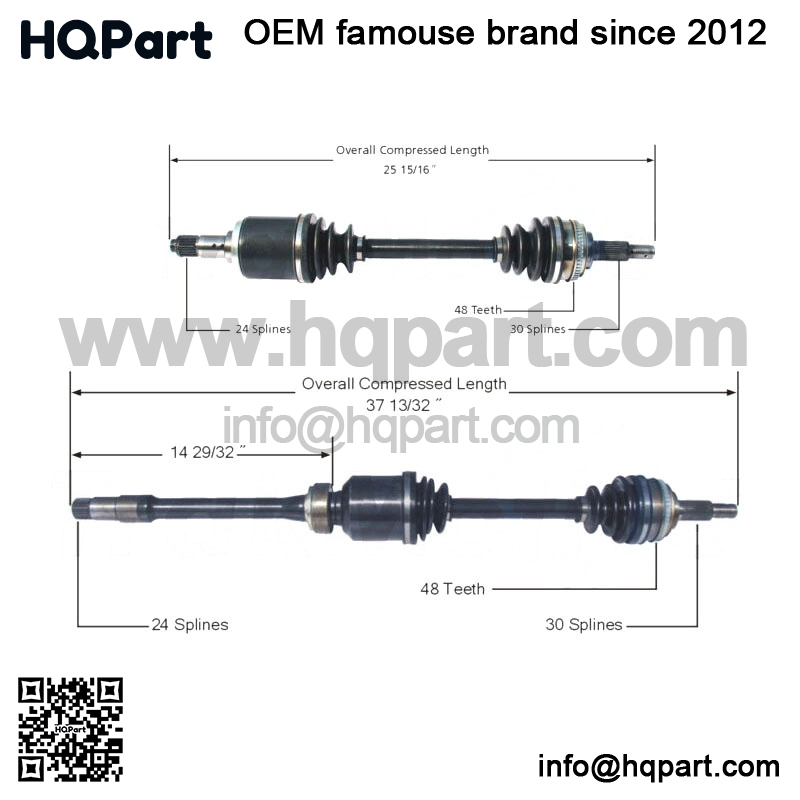

2 Front CV Axle Shafts Set for Lexus ES300 Toyota Camry Avalon Sienna (For: Toyota)

SKU Z.18244 FQVM-48680-22-3973482 Category Tags ,

Description
1 x SurTrack – Front Left CV Axle Shaft
1x SurTrack – Front Right CV Axle Shaft
Abs Ring Tooth Count: (Front Left CV Axle Shaft) 48
Abs Ring Tooth Count: (Front Right CV Axle Shaft) 48
Abs Ring Type: (Front Left CV Axle Shaft)Toothed
Abs Ring Type:(Front Right CV Axle Shaft)Toothed
Abs Tone Ring Included: (Front Left CV Axle Shaft) Yes
Abs Tone Ring Included: (Front Right CV Axle Shaft) Yes
Axle Nut Head Type:(Front Left CV Axle Shaft) Hex
Axle Nut Head Type:(Front Right CV Axle Shaft)Hex
Axle Nut Height(in):(Front Left CV Axle Shaft) 3/5
Axle Nut Height(in): (Front Right CV Axle Shaft) 3/5
Axle Nut Height (mm):(Front Left CV Axle Shaft) 15
Axle Nut Height (mm): (Front Right CV Axle Shaft) 15
Axle Nut Hex Size (in):(Front Left CV Axle Shaft)1 1/6
Axle Nut Hex Size (in):(Front Right CV Axle Shaft) 1 1/6
Axle Nut Hex Size (mm):(Front Left CV Axle Shaft) 29.8
Axle Nut Hex Size (mm): (Front Right CV Axle Shaft) 29.8
Axle Nut Included:(Front Left CV Axle Shaft) Yes
Axle Nut lncluded:(Front Right CV Axle Shaft) Yes
Axle Nut Length (in): (Front Left CV Axle Shaft) 1 1/3
Axle Nut Length (in):(Front Right CV Axle Shaft) 1 1/3
Axle Nut Length (mm): (Front Left CV Axle Shaft)34.4
Axle Nut Length (mm): (Front Right CV Axle Shaft) 34.4
Axle Nut Locking Type: (Front Left CV Axle Shaft)Standard
Axle Nut Locking Type: (Front Right CV Axle Shaft)Standard
Axle Nut Thread Size: (Front Left CV Axle Shaft)M22*1.5
Axle Nut Thread Size:(Front Right CV Axle Shaft) M22*1.5
Boot Material:(Front Left CV Axle Shaft) Neoprene
Boot Material:(Front Right CV Axle Shaft) Neoprene
lnboard Joint Type:(Front Left CV Axle Shaft) Male
Inboard Joint Type: (Front Right CV Axle Shaft)Male
Inboard Shaft Connection Style: (Front Left CV Axle Shaft) Male
lnboard Shaft Connection Style: (Front Right CV Axle Shaft) Male
New Or Remanufactured: (Front Left CV Axle Shaft) New
New Or Remanufactured:(Front Right CV Axle Shaft) New
Number Of Inboard Splines:(Front Left CV Axle Shaft) 24
Number Of Inboard splines: (Front Right CV Axle Shaft) 24
Number of Outboard Splines: (Front Left CV Axle Shaft) 30
Number of Outboard Splines: (Front Right CV Axle Shaft) 30
Outboard Joint Type: (Front Left CV Axle Shaft) Conventional
outboard Joint Type:(Front Right CV Axle Shaft)Conventional
outboardShaft Connection Style: (Front Left cV Axle Shaft)Conventional
Outboard Shaft Connection Style: (Front Right cV Axle Shaft)Conventional
overall Compressed Length (in):(Front Left CV Axle Shaft) 25.94
overall Compressed Length (in):(Front Right CV Axle Shaft) 37.4
overall Compressed Length (mm):(Front Left CV Axle Shaft) 659
overall Compressed Length (mm): (Front Right CV Axle Shaft) 950
