16″ Electric Radiator Fan High 3000 + Cfm Thermostat Wiring Switch Relay Kit

SKU FS.00533 TR15334 Category Tags ,

Description:
Brand new radiator cooling fan blade for Universal use

Color: Black

Easy direct installation, require NO modification

OE Fitment or Replacement, Push or Pull Type

Professional installation is highly recommended

No instruction included.

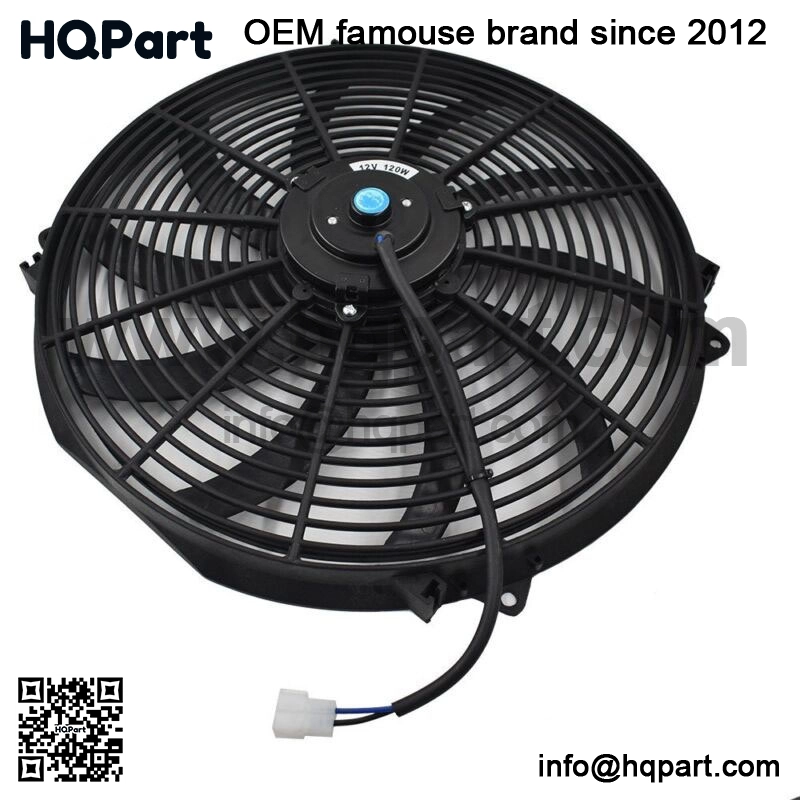

Electric Fan:

16 inch reversible 12 volt electric cooling fan.

Universal fit for hot rods, classic engines and modern vehicles.

Powerful 120 watt motor will keep your engine cool.

Configured as an air puller out of the box.

Blade and wiring can be reversed to make the fan an air pusher.

For radiators, oil coolers, transmission coolers, condensers and more.

Includes mounting feet attachments and tie strap kit.

Blade Size?? 15 Inch

Blade Type?? Curved

Motor Size?? 120 Watts

CFM Rating?? 3000

RPM Rating?? 2050

Amp Draw??15 Amps

Material??Plastic Shroud/Steel Motor
Thermostat Kit:

Universal fit for any automotive application.

Activates by grounding electric fans at preset temperature.

180’F turn-on temperature, 165’F turn-off temperature.

3/8″ NPT thread-in brass probe w/ 1/2″ NPT adapter included.

Probe typically threads into radiator, water outlet hose or manifold.
Application:
Universal

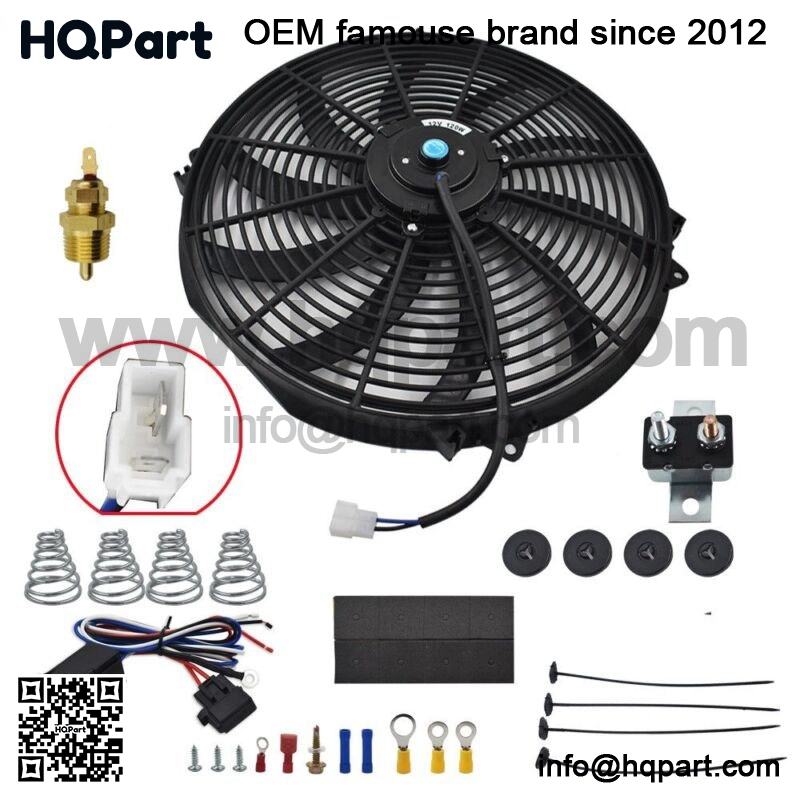

Package includes:
(1) – 3/8″ NPT Thread-in Thermostat

(1) – 1/2″ NPT Adapter

(1) – Wiring Harness w/ Mount

(1) – 40 Amp Relay

(1) – 30 Amp Circuit Breaker

(3) – Small Ring Terminals

(1) – Large Ring Terminal

(1) – Harness Mounting Screw

(2) – Butt Connectors

(2) – Sheet Metal Screws

(1) – Female Connector

Just as pictures show
