03-06 Chevy Silverado 2500HD Trailer Hitch 6′ Bed Factory Replacement – 15302

This Trailer Tow HitchFits The Following Vehicles:
2003 – 2006 Chevrolet Silverado 2500 HD 6′ bed factory replacement hitch
This Trailer Tow Hitch Includes the Following Parts:
Xtra Duty Class 5 Hitch, 2″ Receiver (Easy Bolt-On, No Drilling)
Installation instructions, schematics, diagrams, and hardware (if required).
List ofFitment Years:
2003, 2004, 2005, 2006

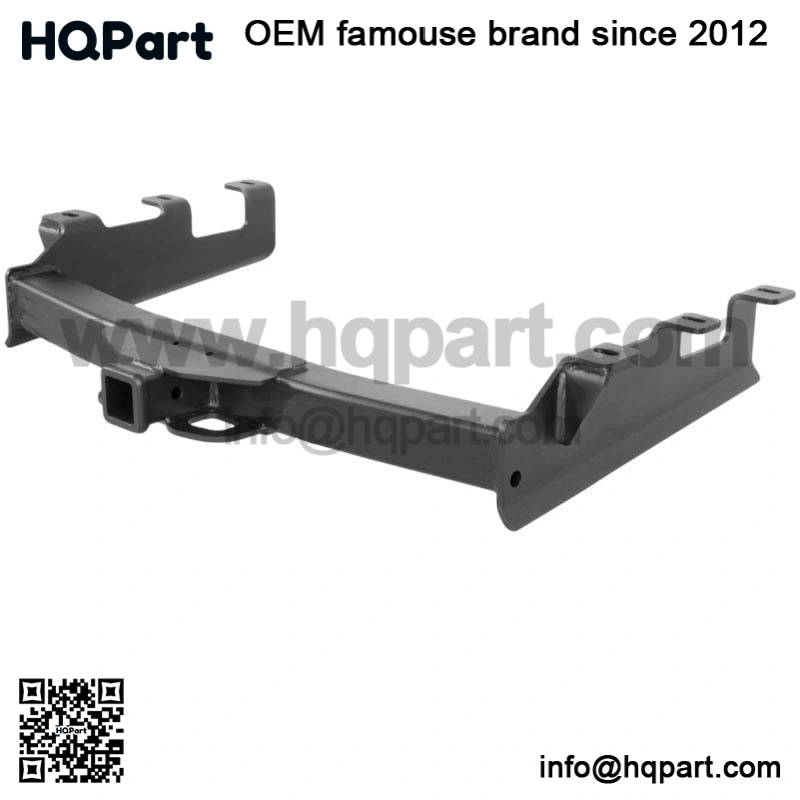

15302 Xtra Duty Class 5 Trailer Hitch, 2-In Receiver
We kept going class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate.
They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component) This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs.
and an extra-high tongue weight capacity of 2,400 lbs ItFeatures a 2″ x 2″ receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount It is designed to be a custom-fit trailer hitch for certain years of the Chevy Silverado 2500, 2500 HD or 2500 HD Classic and GMC Sierra 2500, 2500 HD or 2500 HD Classic with 6-foot bed (to verify compatibility with your vehicle, see application info).
For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch It is rated for 17,000 lbs WD and 2,400 lbs.
WDTW In our drive to create a more powerful hitch, has not neglected the finer details Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish.
To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat They come with grade-8 mounting hardware for solid installation..
Features:
Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
Compatible with weight distribution hitch (17,000 lbs. WD / 2,400 lbs. WDTW)
Engineered with a vehicle-specific design for a customFit
Tested for safety in accordance with SAE J684
Precisely welded for superior strength andFit
Constructed with a large, powerful main body
Protected by a highly durable carbide powder coat finish
Co-cured in a rust-resistant liquid A-coat, inside and out
Features wide safety chain openings for heavy-duty hooks
Equipped with an open-back receiver for easy cleaning
